54ABT574/BSA

Description
D Flip-Flop, 8-Func, Positive Edge Triggered, CDFP20
Categorylogic    logic
File Size582KB,11 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric Compare View All

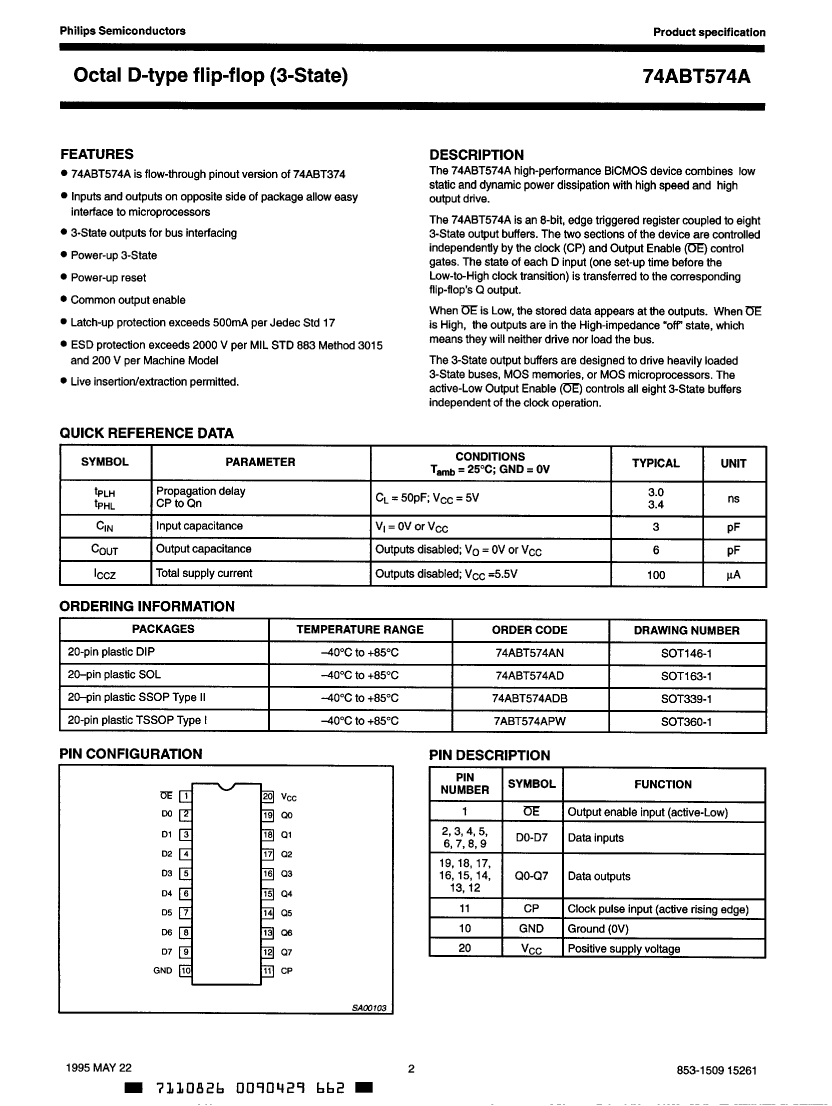

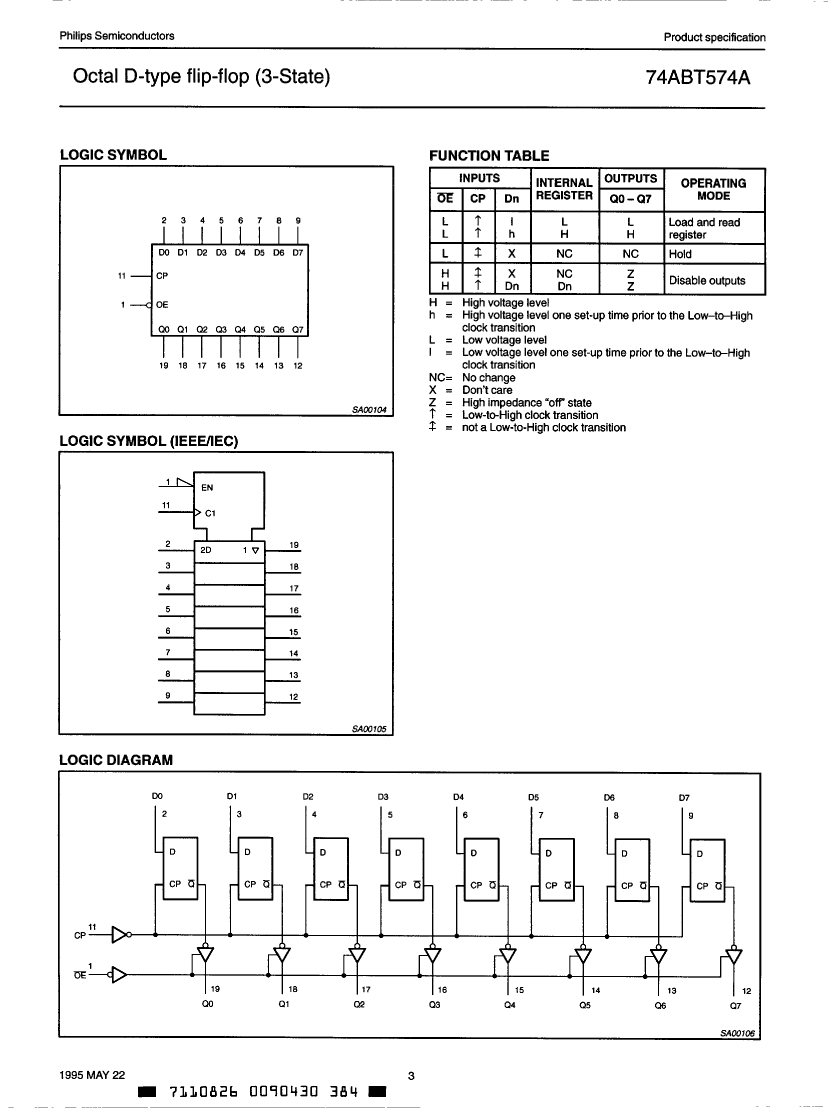

54ABT574/BSA Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CDFP20

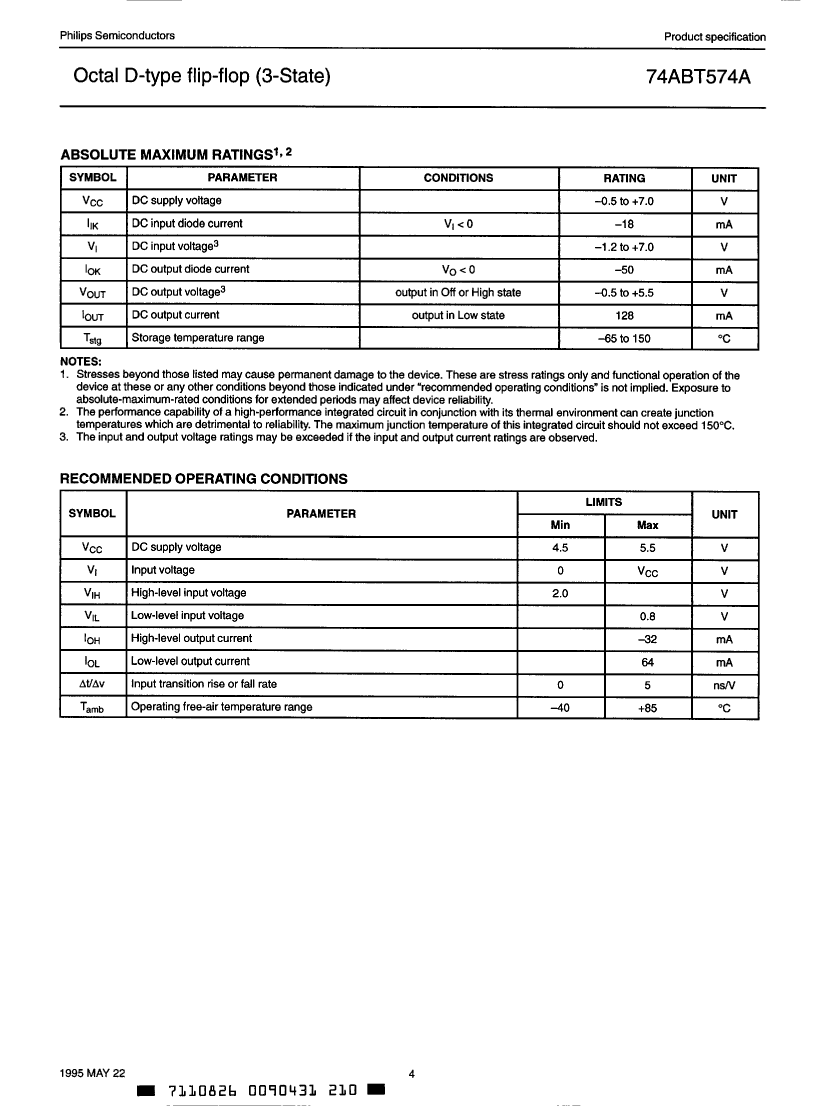

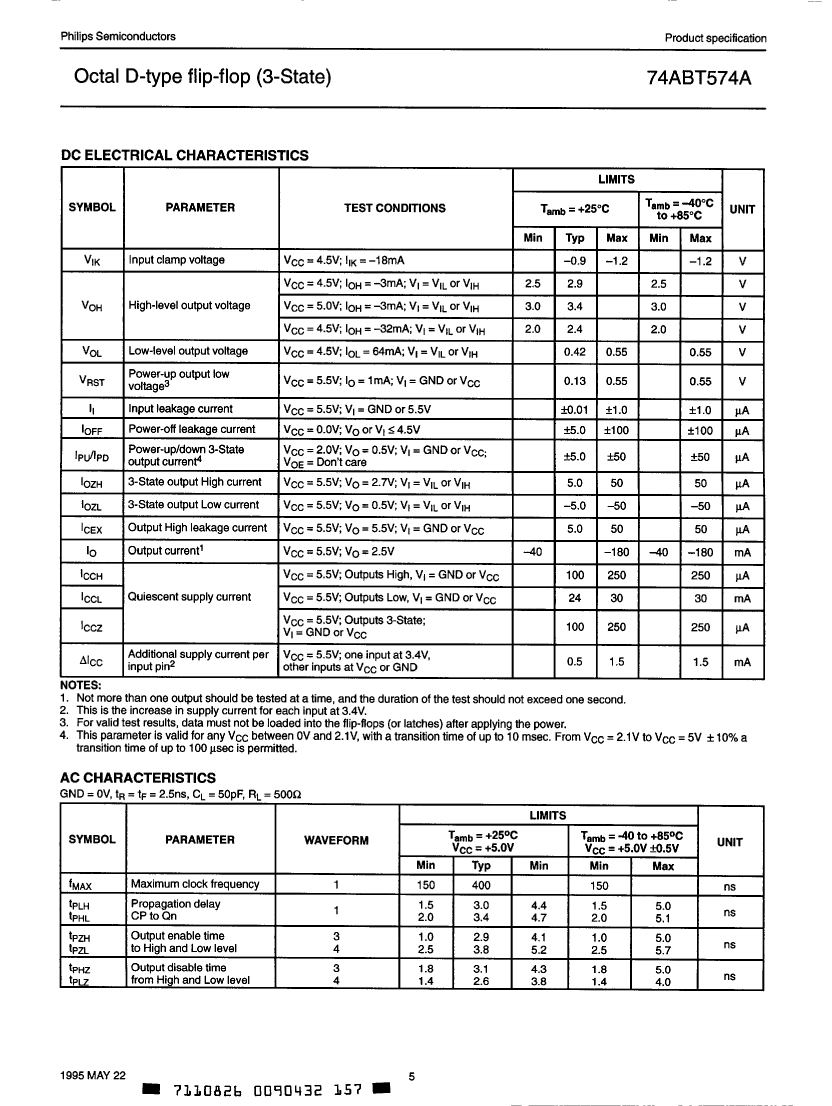

54ABT574/BSA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Codeunknown
JESD-30 codeR-XDFP-F20
JESD-609 codee0
Logic integrated circuit typeD FLIP-FLOP
Maximum Frequency@Nom-Sup150000000 Hz
MaximumI(ol)0.048 A
Number of functions8
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL20,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Maximum supply current (ICC)30 mA
Prop。Delay @ Nom-Sup7.4 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
Base Number Matches1

54ABT574/BSA Related Products

54ABT574/BSA 74ABT574D-T
Description D Flip-Flop, 8-Func, Positive Edge Triggered, CDFP20 D Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20
Is it Rohs certified? incompatible incompatible
Maker Philips Semiconductors (NXP Semiconductors N.V.) Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code unknown unknown
JESD-30 code R-XDFP-F20 R-PDSO-G20
JESD-609 code e0 e0
Logic integrated circuit type D FLIP-FLOP D FLIP-FLOP
Maximum Frequency@Nom-Sup 150000000 Hz 150000000 Hz
MaximumI(ol) 0.048 A 0.064 A
Number of functions 8 8
Number of terminals 20 20
Maximum operating temperature 125 °C 85 °C
Minimum operating temperature -55 °C -40 °C
Output characteristics 3-STATE 3-STATE
Package body material CERAMIC PLASTIC/EPOXY
encapsulated code DFP SOP
Encapsulate equivalent code FL20,.3 SOP20,.4
Package shape RECTANGULAR RECTANGULAR
Package form FLATPACK SMALL OUTLINE
power supply 5 V 5 V
Maximum supply current (ICC) 30 mA 30 mA
Prop。Delay @ Nom-Sup 7.4 ns 7.1 ns
Certification status Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES YES
Temperature level MILITARY INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT GULL WING
Terminal pitch 1.27 mm 1.27 mm
Terminal location DUAL DUAL
Trigger type POSITIVE EDGE POSITIVE EDGE
