5159.036.48.15.94.111: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle,; CategoryThe connector The connector; File Size428KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5159.036.48.15.94.111 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle,

5159.036.48.15.94.111 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: DIN 14612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Terminal pitch	5.08 mm
Termination type	WIRE WRAP
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

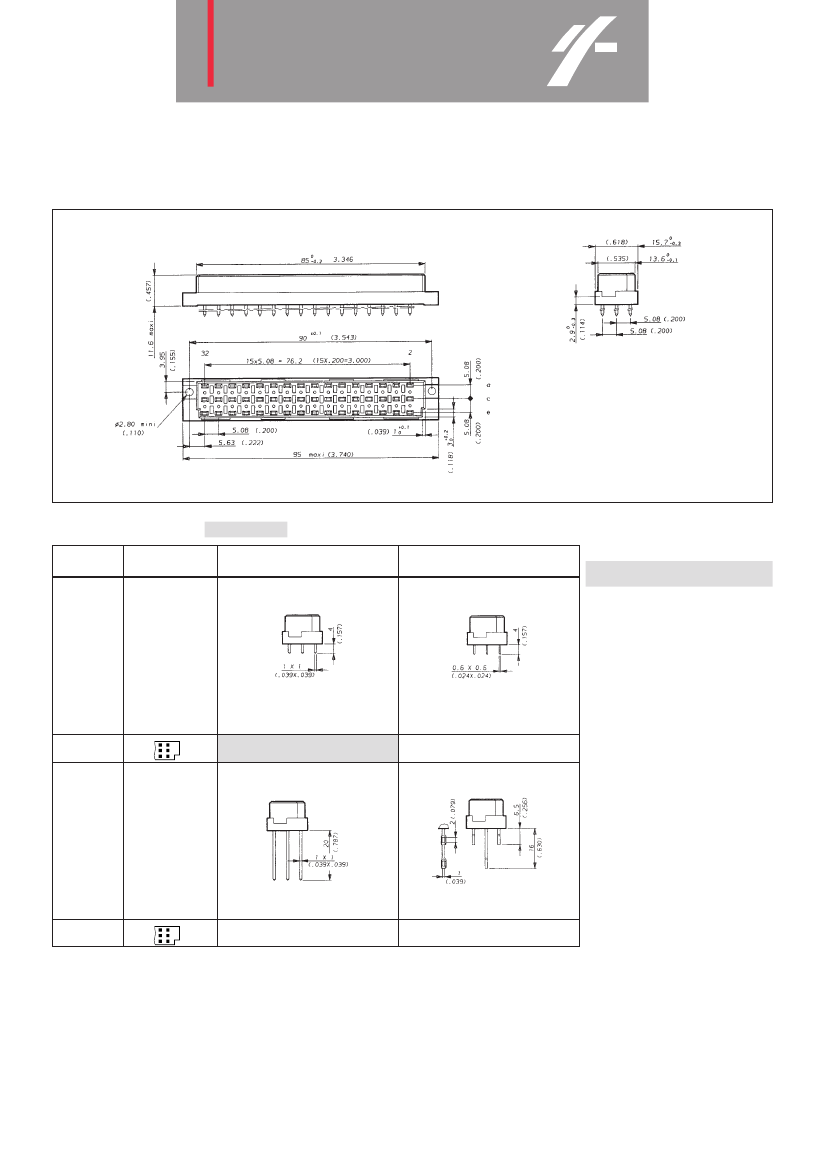

DIN 41612

Receptacles, medium power, 3 row

5159 series, style E

Catalogue numbers -

standard items

Nbr of

contacts

Contact

arrang.

Contact

termination

Contact

termination

Performance class / plating:

• DIN 41612 class II: replace x by

3

in part number.

• DIN 41612 class I: replace x by

4

in part number.

Contact plating: selective gold over

nickel on contact area, tin-lead on

termination.

Options:

Special terminations and contact

arrangements are available upon

request: consult factory.

straight spills 1x1 (.039x.039)

4 2

straight spills 0,6x0,6 (.024x.024)

48

a

c

e

5159.036.48.12.9x.111

5159.036.48.18.9x.111

w.w. 3 wraps

4 2

hand solder

48

a

c

e

5159.036.48.15.9x.111

5159.036.48.11.9x.111

83

5159.036.48.15.94.111 Related Products

	5159.036.48.15.94.111	5159.036.48.11.93.111	5159.036.48.12.93.111	5159.036.48.11.94.111	5159.036.48.12.94.111	5159.036.48.15.93.111	5159.036.48.18.94.111
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle,	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Receptacle	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	WIRE WRAP	SOLDER	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER
Total number of contacts	48	48	48	48	48	48	48
Maker	Amphenol	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol
Contact to complete cooperation	NOT SPECIFIED	-	AU ON NI	NOT SPECIFIED	-	AU ON NI	-
Manufacturer's serial number	-	-	5159	-	5159	5159	5159
