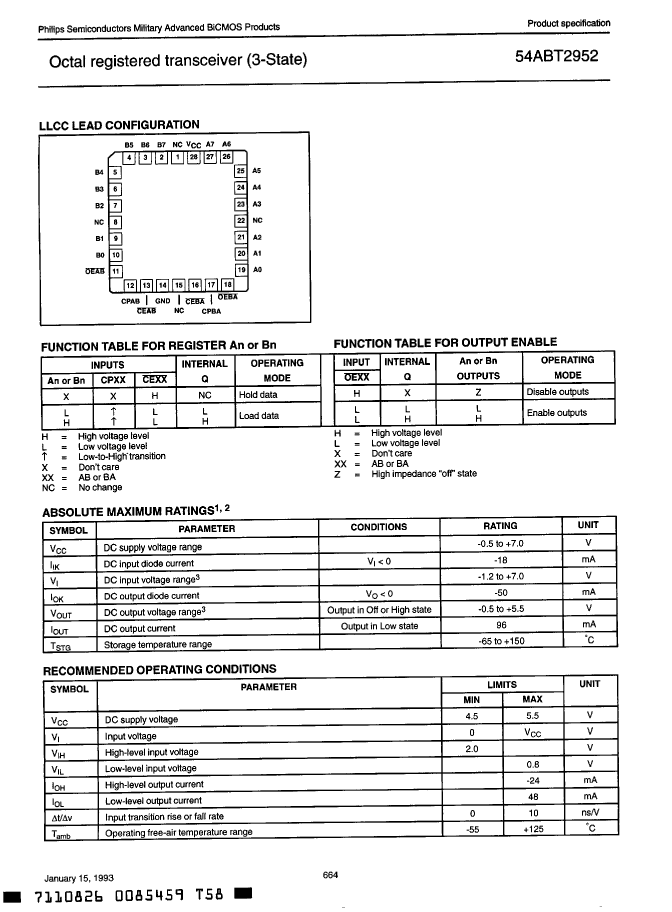

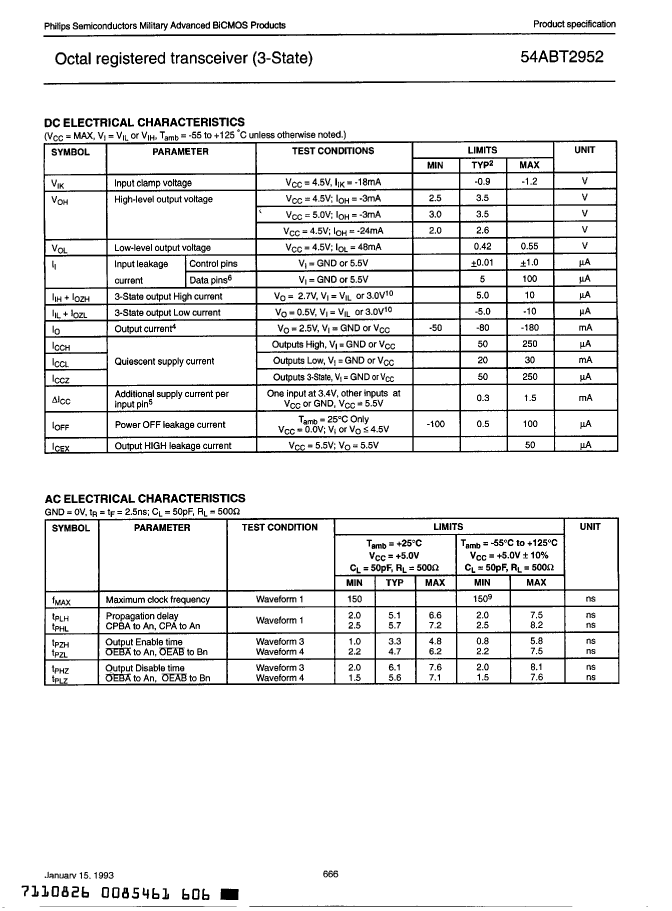

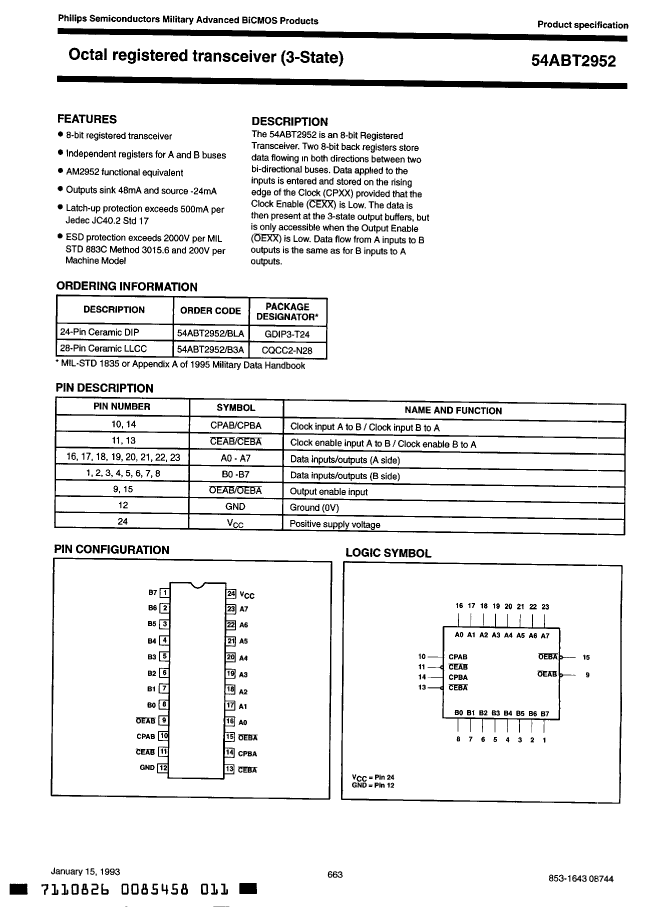

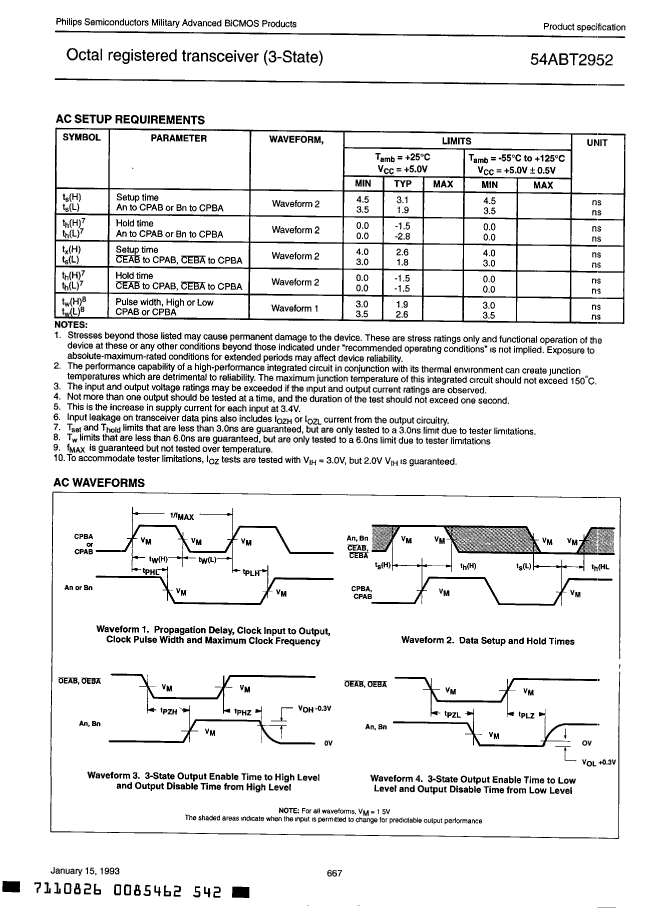

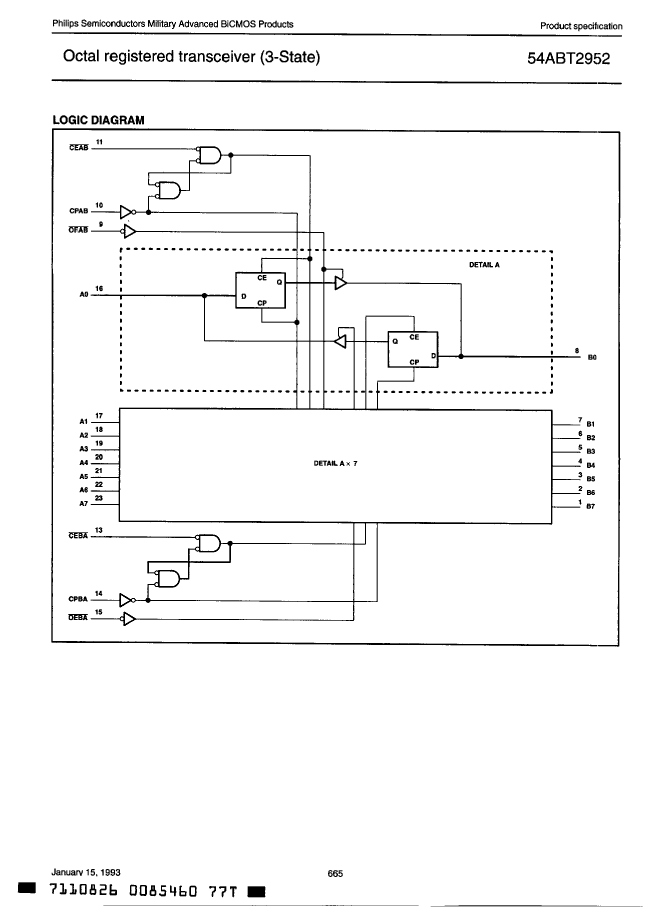

54ABT2952/B3A Overview

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CQCC28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC28,.45SQ
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	30 mA
Prop。Delay @ Nom-Sup	8.2 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54ABT2952/B3A	54ABT2952/BLA
Description	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CQCC28,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CDIP24,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC28,.45SQ	DIP, DIP24,.3
Reach Compliance Code	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	S-XQCC-N28	R-XDIP-T24
JESD-609 code	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A	0.048 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	28	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP
Encapsulate equivalent code	LCC28,.45SQ	DIP24,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Maximum supply current (ICC)	30 mA	30 mA
Prop。Delay @ Nom-Sup	8.2 ns	8.2 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1
