54ABT534/B2A datasheet, PDF - EEWORLD Datasheet

54ABT534/B2A: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20; Categorylogic logic; File Size297KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

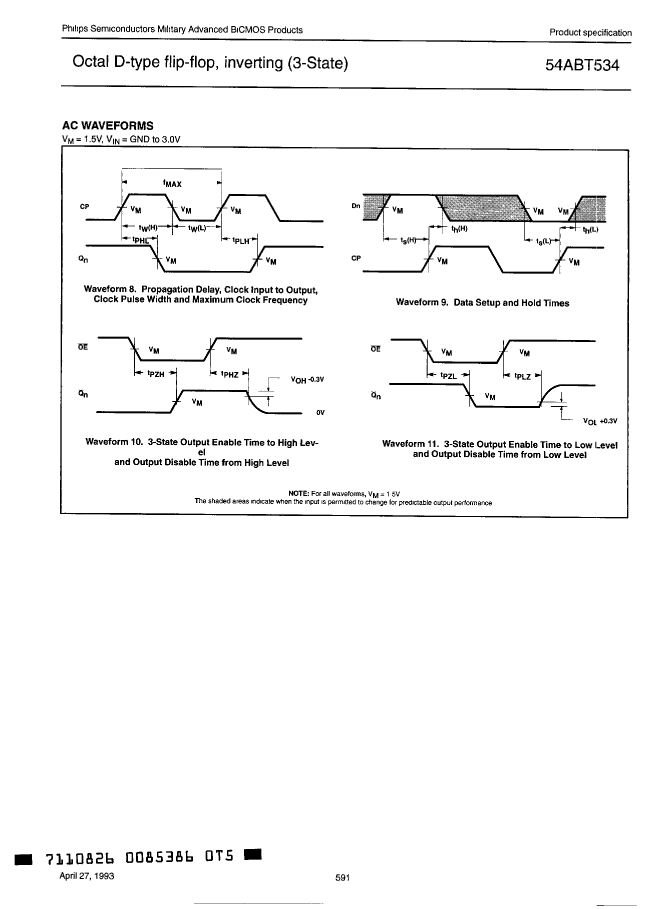

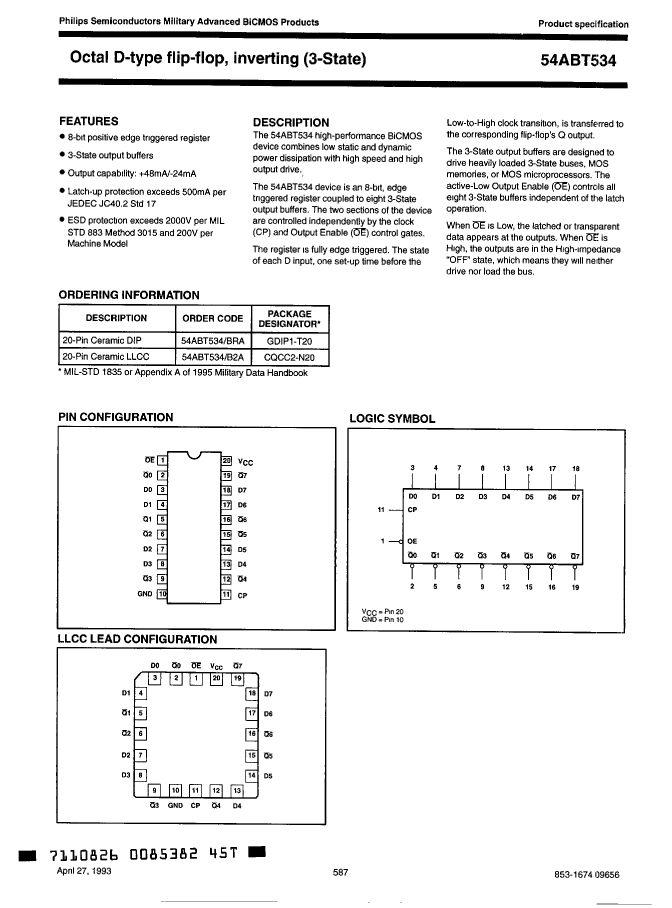

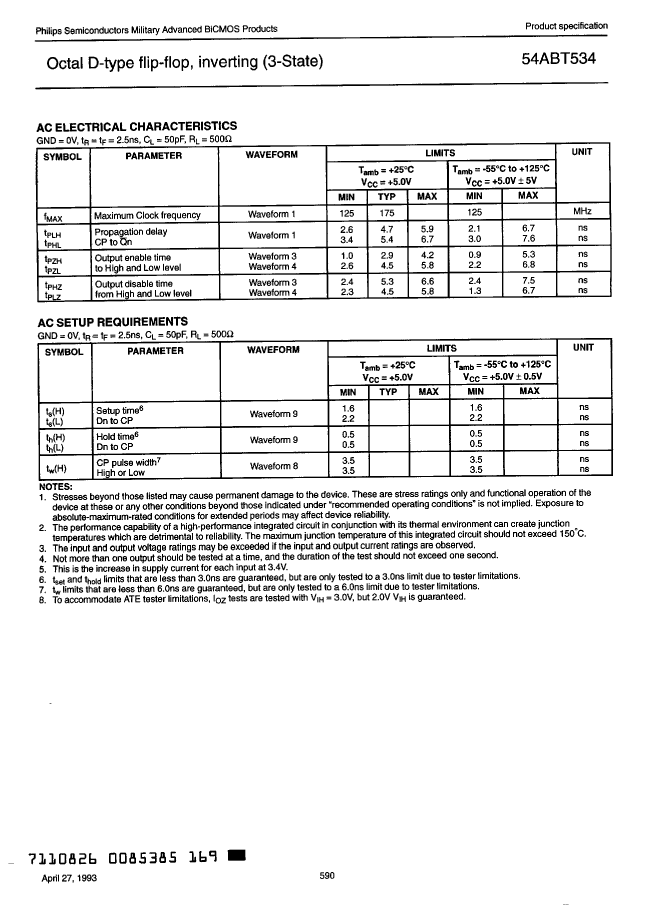

54ABT534/B2A Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20

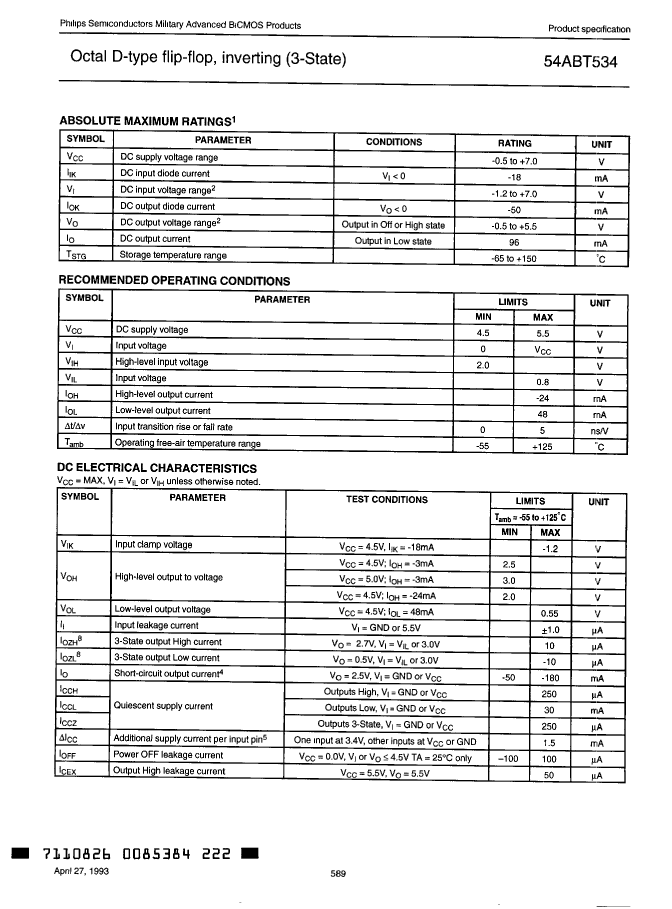

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	125000000 Hz
MaximumI(ol)	0.048 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	30 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54ABT534/B2A	54ABT534/BRA
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20	D Flip-Flop, 8-Func, Positive Edge Triggered, CDIP20
Is it Rohs certified?	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	S-XQCC-N20	R-XDIP-T20
JESD-609 code	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	125000000 Hz	125000000 Hz
MaximumI(ol)	0.048 A	0.048 A
Number of functions	8	8
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Maximum supply current (ICC)	30 mA	30 mA
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1
