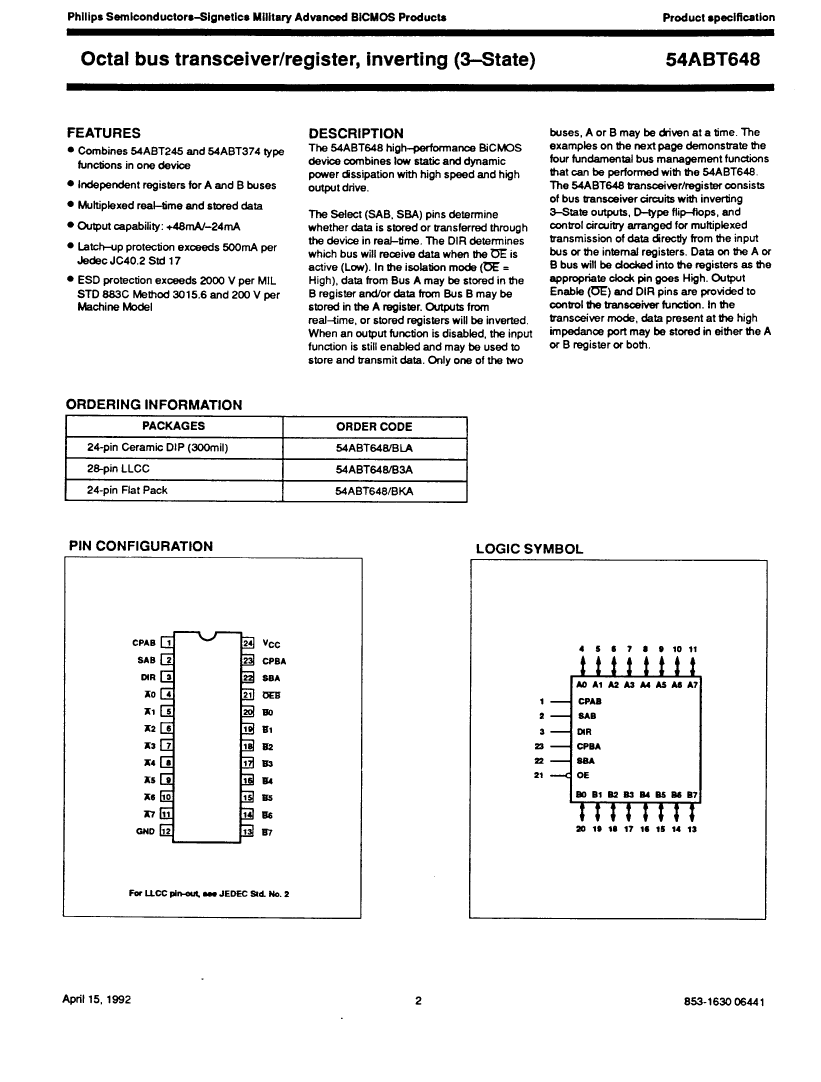

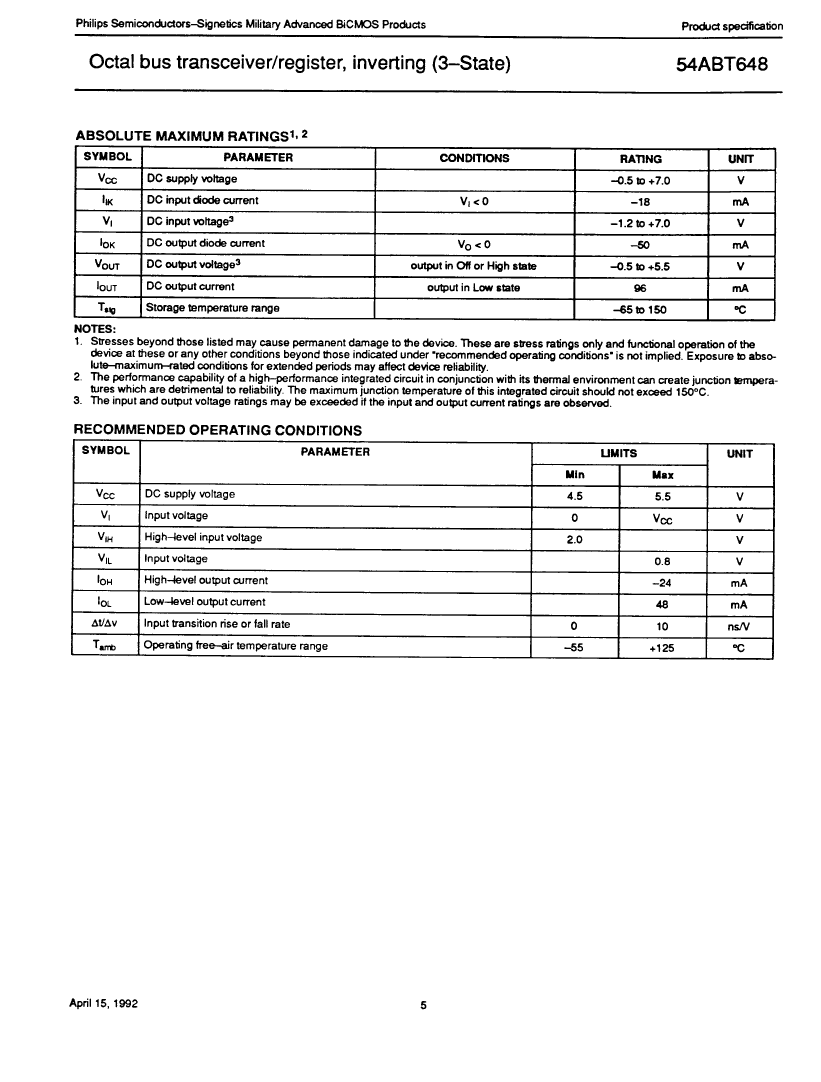

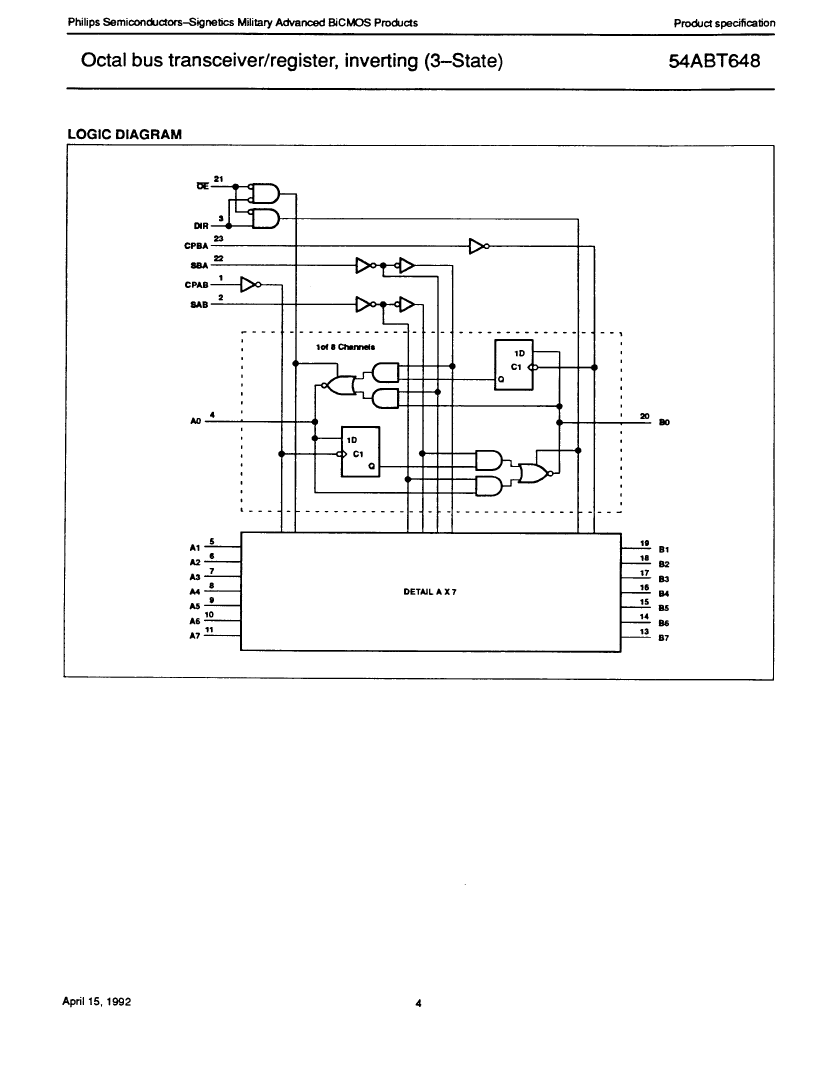

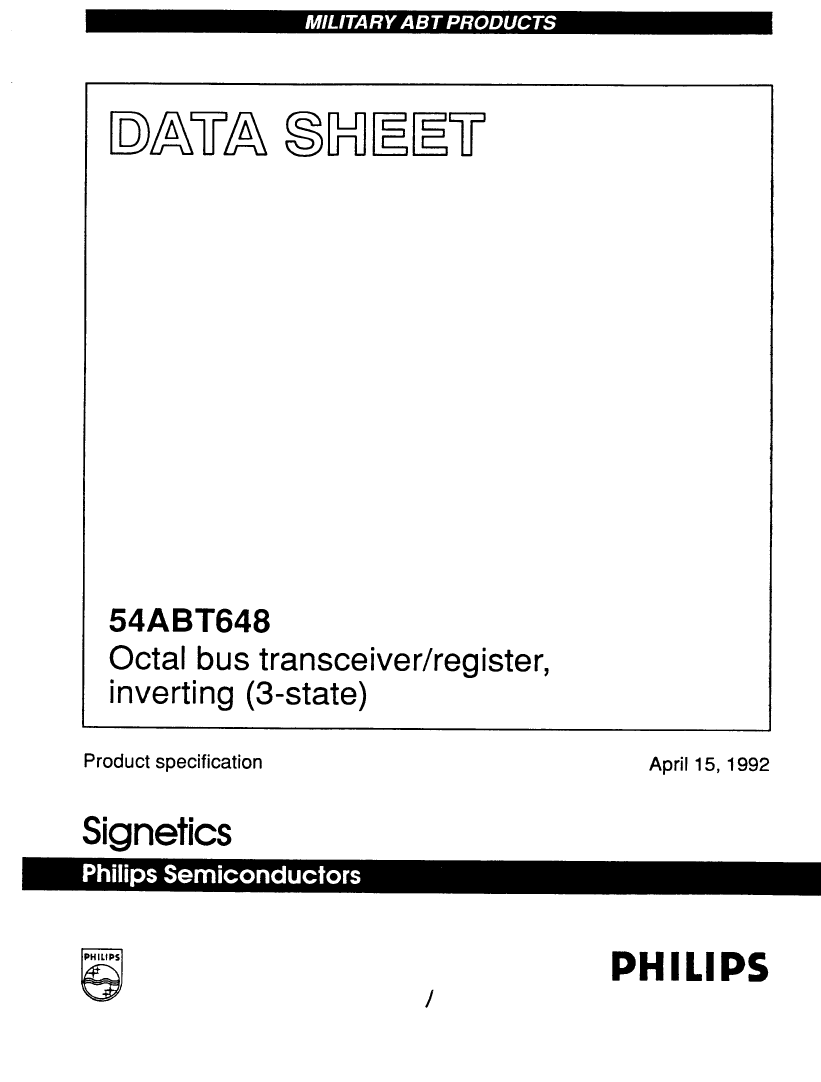

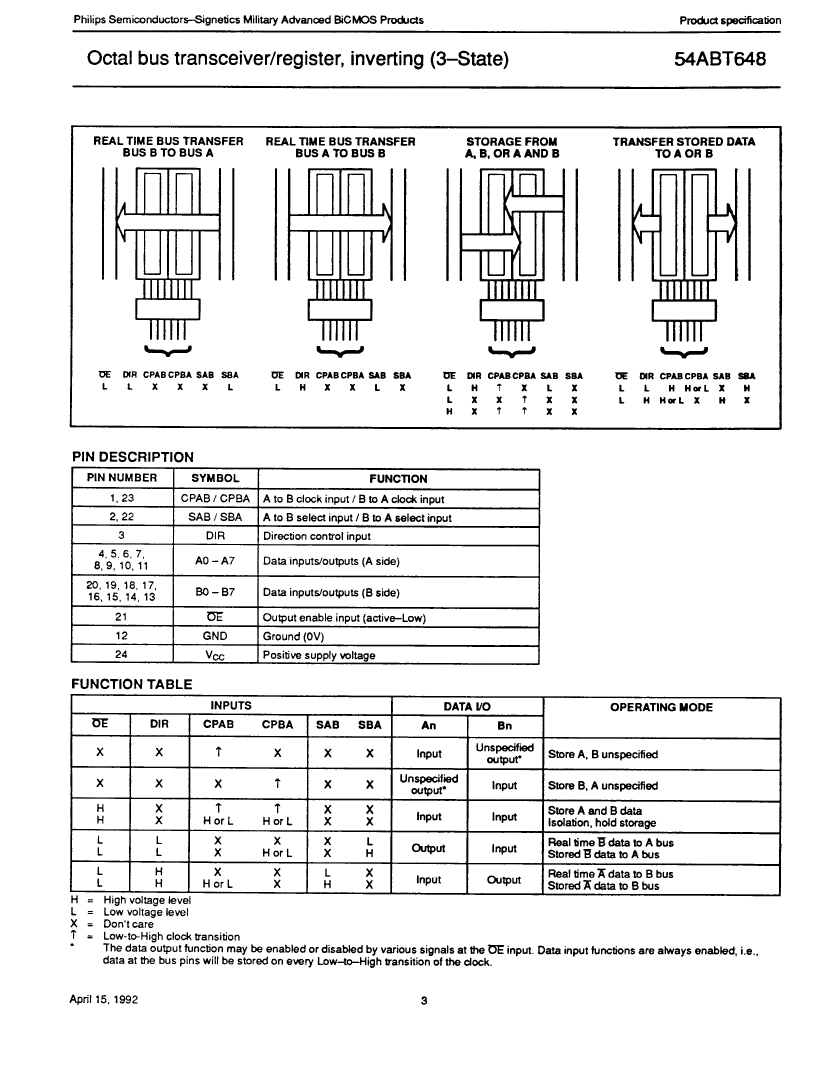

54ABT648/BKA: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CQCC28; Categorylogic logic; File Size491KB，16 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54ABT648/BKA Overview

Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CQCC28

54ABT648/BKA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC28,.45SQ
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	30 mA
Prop。Delay @ Nom-Sup	8.4 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54ABT648/BKA Related Products

	54ABT648/BKA	54ABT648/B3A	54ABT648/BLA
Description	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CQCC28	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CDFP24,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC28,.45SQ	DFP, FL24,.4	DIP, DIP24,.3
Reach Compliance Code	unknown	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	S-XQCC-N28	R-XDFP-F24	R-XDIP-T24
JESD-609 code	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A	0.048 A	0.048 A
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	28	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DFP	DIP
Encapsulate equivalent code	LCC28,.45SQ	FL24,.4	DIP24,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	30 mA	30 mA	30 mA
Prop。Delay @ Nom-Sup	8.4 ns	8.4 ns	8.4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1
