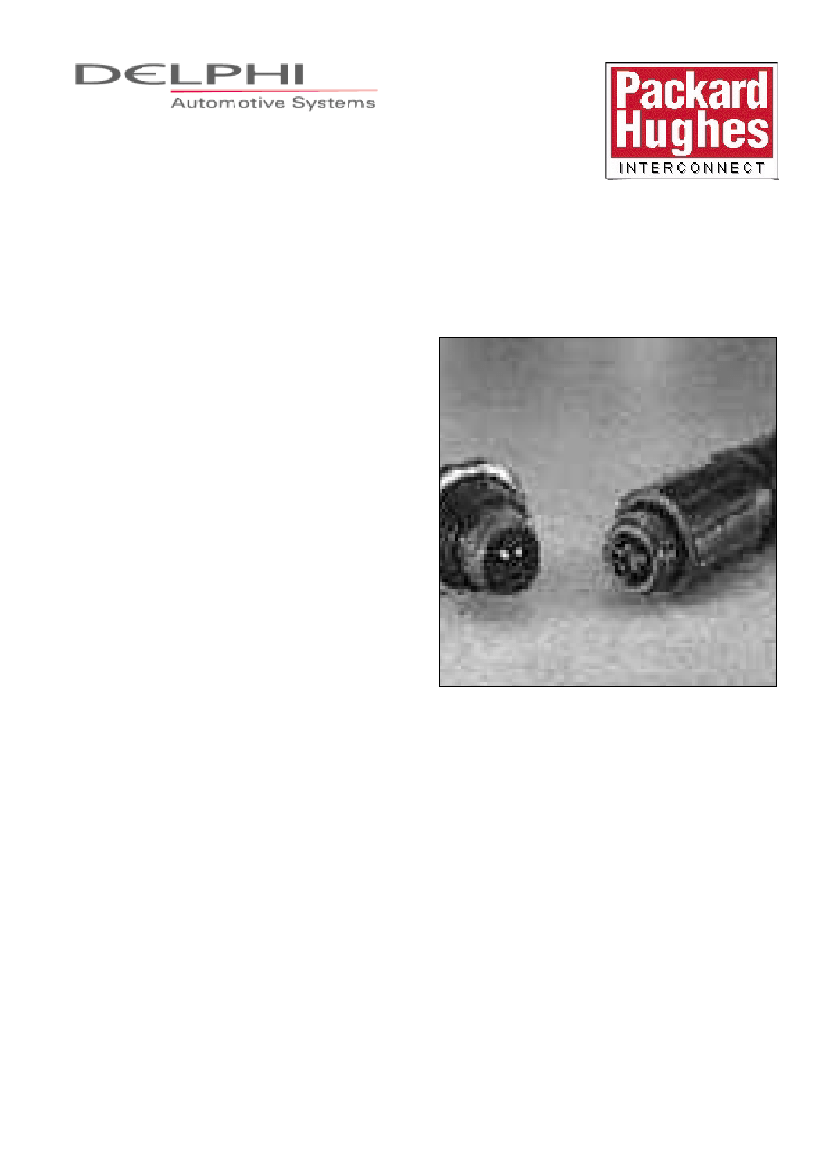

Developed and produced by Packard-Hughes Interconnect
(PHI) to meet the stringent demands of outdoor applica-
tions and to provide superior optical performance when the
going gets tough. PHI hermaphroditic connectors also allow
concatenations (linked together in series) of cable assem-
blies to extend equipment separation without concern for
connector male/female interface compatibility. Additionally
"Blind Mating" and "Scoop Proof" features insure easy to
mate interconnects.
• Single and multi-mode capability
• Full environmental sealing
• Utilizes field-proven MIL-T-29504 Termini**
• Field maintainable
• Field proven - from Operation Desert Storm
to The Olympics, over 18 years of reliable service
Fiber Optic Termini
Hermaphroditic Fiber
Optic Connectors
**Consult factory for MIL-T-29504 options.
Hermaphroditic Product Features
Product Description:
Hermaphroditic connectors are designed to allow intermat-
ing of "like connectors" used on cable assembly ends. This
is achieved by converting one of the cable end's plug con-
nectors to a male connector configuration by backing off its
coupling nut and exposing its male threaded end and then
bringing the other connector (female configuration) coup-
ling nut forward to thread onto the exposed male threads.
This allows the cable assemblies to be deployed without
concern for having a male or a female connector at the
cable ends. Another benefit to the hermaphroditic connec-
tor design is that it allows identical cable assemblies to be
concatenated (linked together in series) as many times as
Blind Mate and Scoop Proofing Design Features:
Due to the application requirements, hermaphroditic con-
nectors are often mated under adverse conditions such as
"low light" and/or "blind mate," which could result in jamming
The receptacle connectors are jam nut mounted and will
only intermate with the cable assemblies hermaphroditic
plug connectors.
needed (to be limited only by the system's optical
loss budget). This provides flexibility in the placement of the
end terminals. A unique wiring arrangement must be
observed when cable concatenation is used.
page 1
Fiber Optic Termini
Hermaphroditic Fiber Optic Connectors
Hermaphroditic Product Features
the intermating connectors. The fiber optic termini (optical
contacts) can also experience damage (contacts scooping)
due to improper mating. Since mating instructions can not
be practically attached to each connector, it is critical that
"field use" connectors include "blind mating" and "scoop
proofing" design features to assure successful field applica-
tion. Packard-Hughes hermaphroditic connector design fea-
tures include both "blind mating" and "scoop proofing"
capabilities.
EMI/RFI Shielding:
Fiber optic cable assemblies and connectors do not require
shielding. When it is necessary to provide shielding for the
"electronics" inside the panel or the shelter which the recep-
tacle mounts onto, special versions of Packard-Hughes
receptacle connectors are available. These connectors can
be grounded to the panels using conductive surfaces and
gaskets or by a metallic shroud that can be added over the
rear of the connector (inside the enclosure). For further
details contact Packard-Hughes.
Design Features for Typical Field Abuse:
Field use connectors experience application abuse that is
over and above the environmental conditions that are
normally seen by connectors and cable assemblies. These
potentially damaging conditions include being run-over by
wheeled and tracked vehicles, using the connectors
protruding from the shelter or panels as foot or hand holds,
application in wet conditions including freezing water, etc.
Packard-Hughes hermaphroditic connectors have been
designed to withstand crush, cable tensile pull-out, cable
twist, external bending moment, impact, freezing water, and
many other field application abuses.
page 2
Fiber Optic Termini
Hermaphroditic Fiber Optic Connectors
General Information
Hermaphroditic connectors are designed to meet the
following performance criteria:
Mating Durability
Vibration
Mechanical Shock
Thermal Shock
Temperature Life
Operating Temperature Range
Storage Temperature Range
Corrosion Resistance
Ozone Exposure
Humidity
Crush Resistance
Maintenance Aging
Terminus Retention Force
Insert Retention, Axial
Cable Retention
Cable Seal Flexing
Cable Twist
External Bending Moment
Impact
Flammability
Optical Performance
Insertion Loss
Backreflection
9/125 SM Fiber -0.4 dB avg., 62.5/125 MM Fiber -0.5 dB avg., 100/140 MM Fiber -0.4 dB avg.
Note - Values measured at 1300 nm per TIA/EIA 455-FOTP-34
Singlemode > -45dB with PC polish
1000 cycles minimum per TIA/EIA-455, FOTP-21
Per MIL-STD-1344, Method 2005, Condition II & VI-A
Per TIA/EIA-455, FOTP-2, Method C
-54ºC to +85ºC per TIA/EIA-455, FOTP-3, test condition A*
+85ºC for 250 hours per TIA/EIA-455, FOTP-4, test condition 3B*
-54ºC to +85ºC*
-65ºC to +85ºC*
500 hour salt spray per MIL-STD-1344, Method 1001
MIL-STD-1344, Method 1007
240 hours per MIL-STD-1344, Method 1002
225 pounds per MIL-STD-1344, Method 2008.1
10 Insertions/withdraws per MIL-STD-1344, Method 2002
22 pounds minimum per MIL-STD-1344, Method 2007
100 PSI minimum per MIL-STD-1344, Method 2010
400 pounds minimum per MIL-STD-1344, Method 2009
100 cycles per MIL-STD-1344, Method 2017
1000 cycles per TIA/EIA-455, FOTP-36
71 Nm at mounting panel
per TIA/EIA-455, FOTP-2, Method B
per MIL-STD-1344, Method 1012
*Temperature ranges listed above are limited by the Fiber Optic Cable performance window.
Standard Materials and Plating
Description
Insert & Coupling Ring
Boot and Seals
Connector Shell
Material
Aluminum Alloy*
Fluorosilicone
Aluminum Alloy*
Finish
Anodize
None
Hard Anodize Per MIL-A-8625 TYPE III, Class 2 Color - Black
*Molded thermoplastic components available for lower cost and hybrid electrical/optical applications.
Optical Performance Data
The average insertion loss is .5dB for ceramic termini, and
.8dB for stainless steel termini (both 62.5 micron core, but
other core size data is also available). These figures are
derived from actual field measurements taken from thousands
of mated pairs of termini across our line of multichannel
connectors. The measurements included multiple cycles of
mating and unmating using many types of cable and
brands of fiber. The source launch wavelengths were 850
and 1300 nanometers. Single mode performance data
available by application. Consult factory.
page 3
Fiber Optic Termini
Hermaphroditic Fiber Optic Connectors

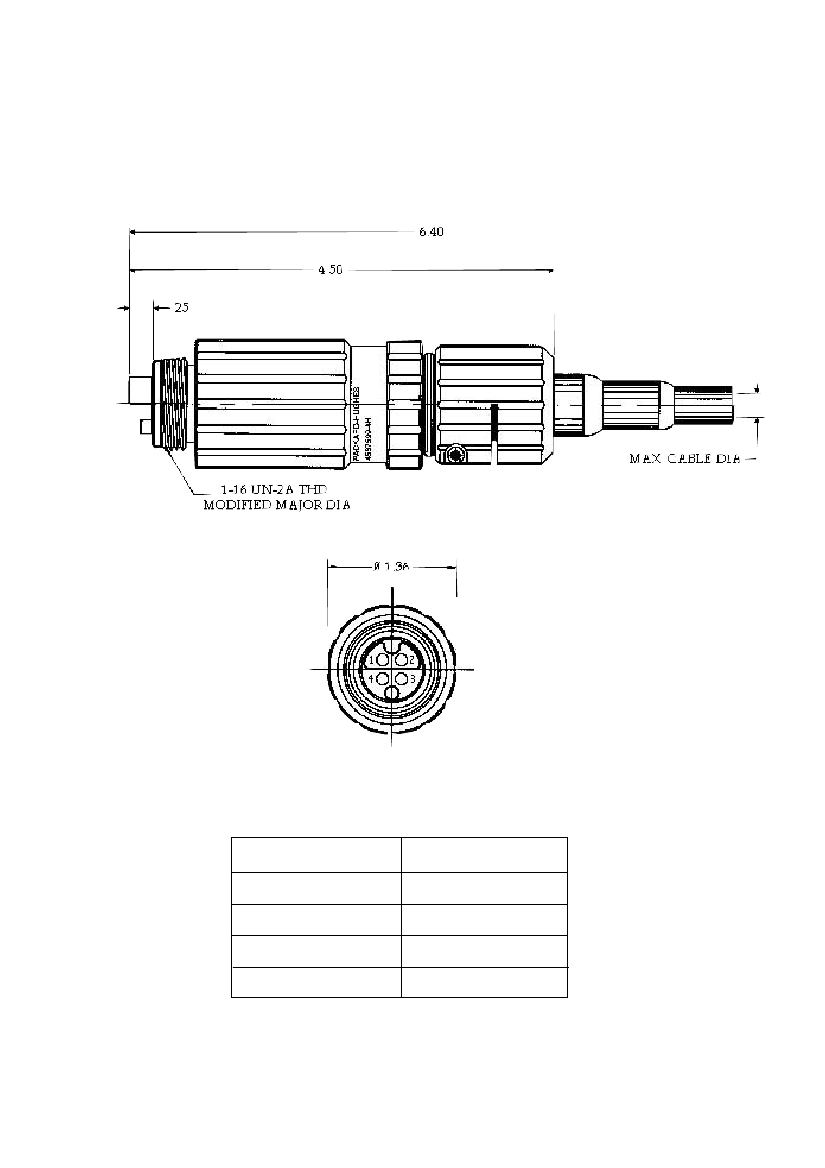

Cable Plug
Coupling Not Shown in
Retracted Position
Interface View
Assembly Dash No.
4567599-2H
4567599-4H
4567599-6H
4567599-8H
Max. Cable Diameter
5.5 mm
6.7 mm
7.4 mm
10 mm
page 4
Fiber Optic Termini
Hermaphroditic Fiber Optic Connectors

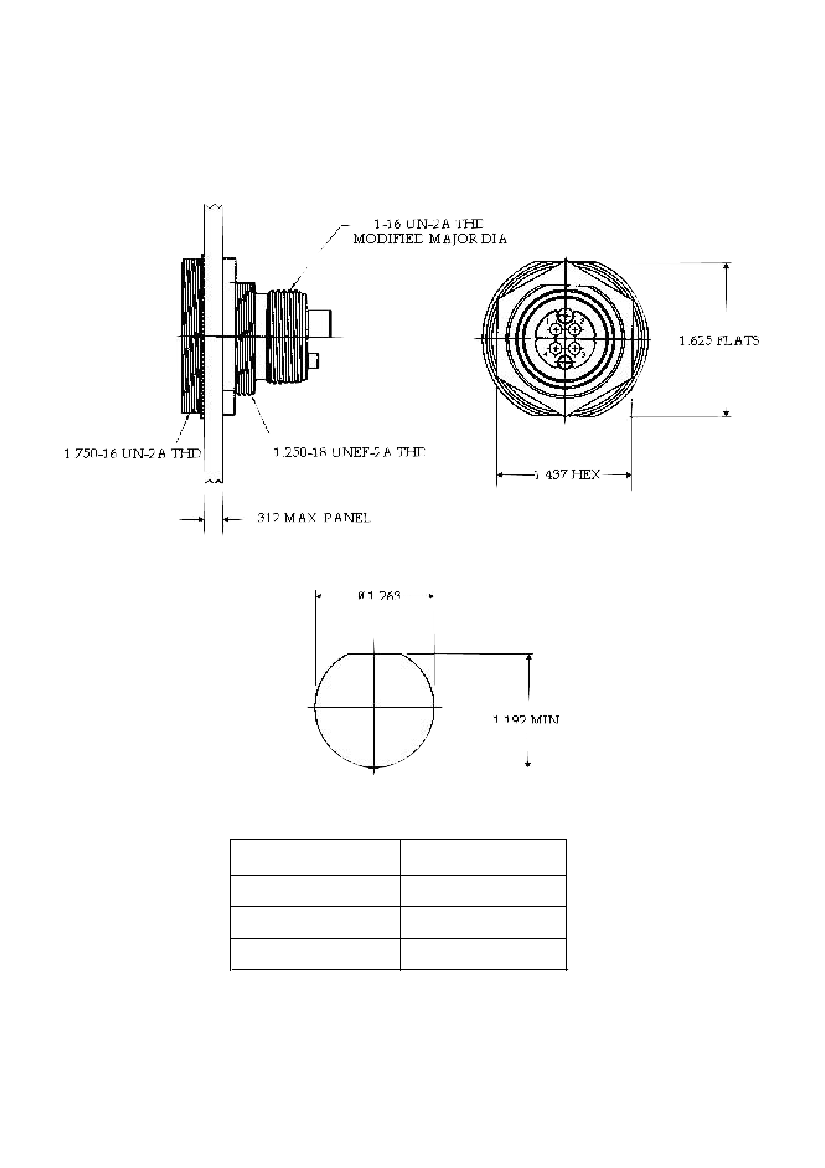

Receptacle, Jam Nut Mount
Recommended Panel Mounting
Part Number
1146936H
4567600H
1144122H
Description
Standard Aluminum
EMI Shielded
Composite
page 5
