C5122A2P datasheet, PDF - EEWORLD Datasheet

C5122A2P: DescriptionPLL/Frequency Synthesis Circuit, CMOS, PDIP24,; CategoryAnalog mixed-signal IC The signal circuit; File Size308KB，9 Pages; ManufacturerNPC; Websitehttp://www.npc.co.jp/en/

Download Datasheet Parametric View All

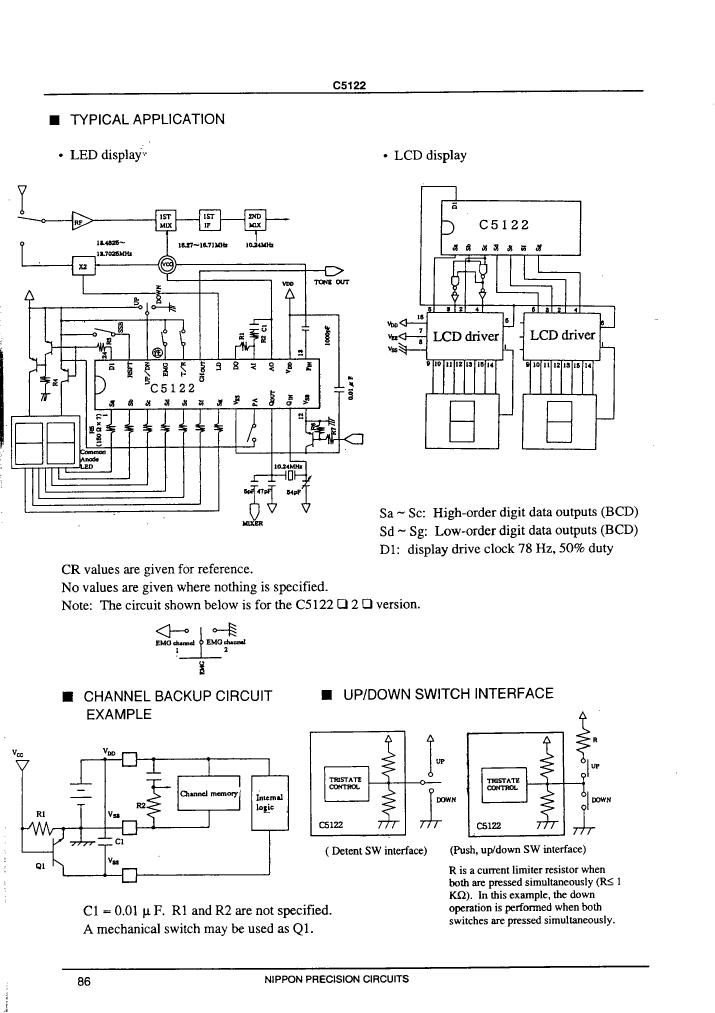

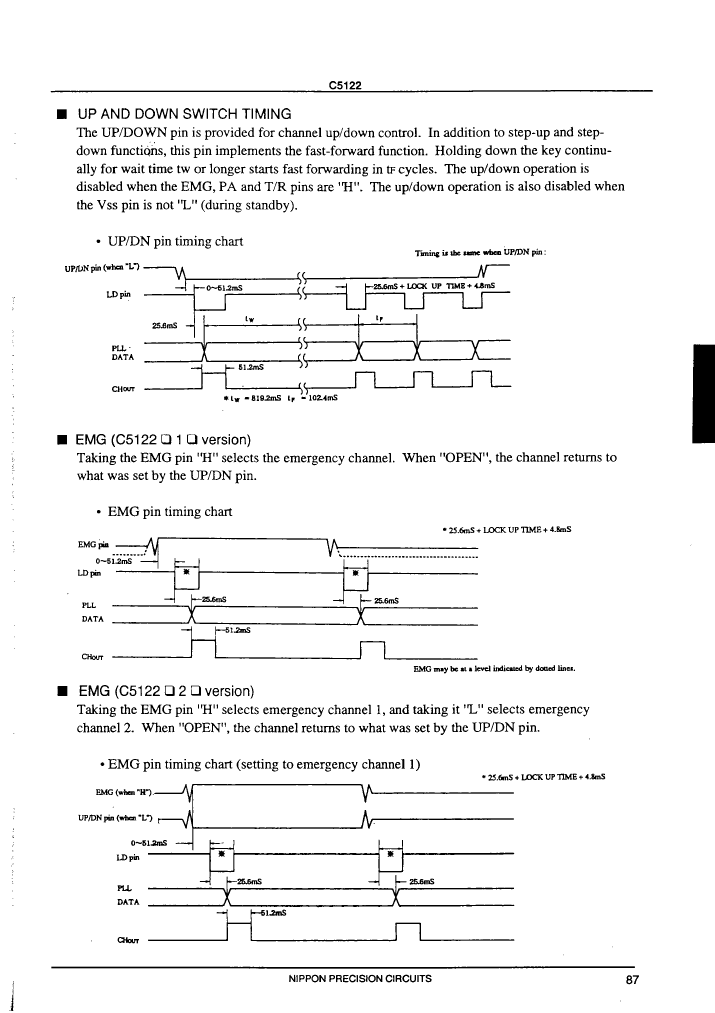

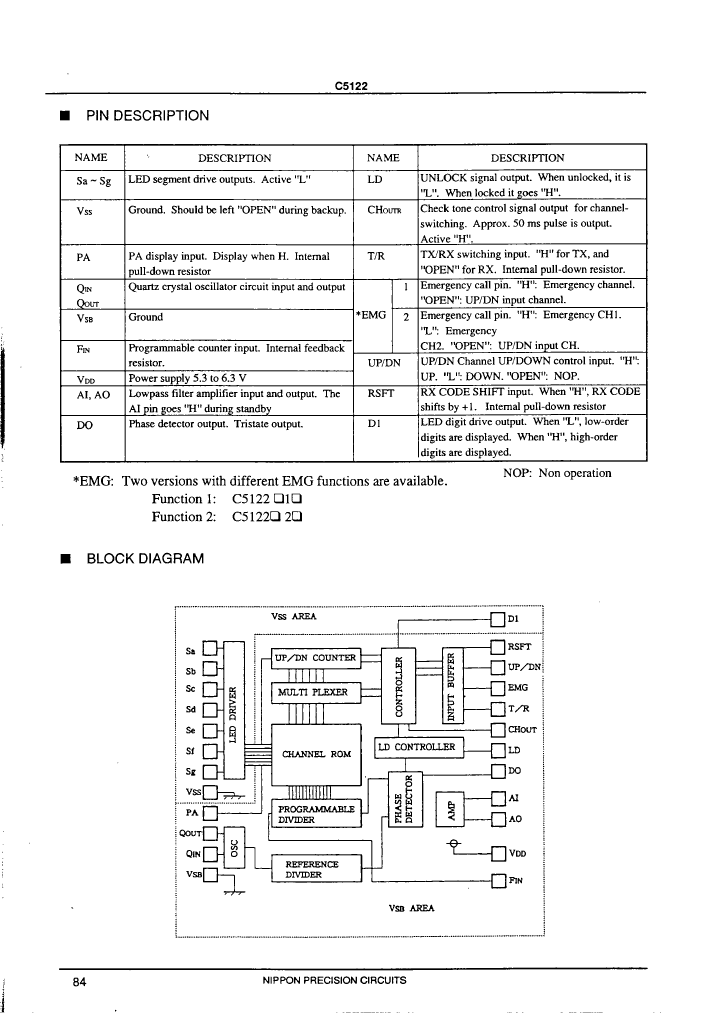

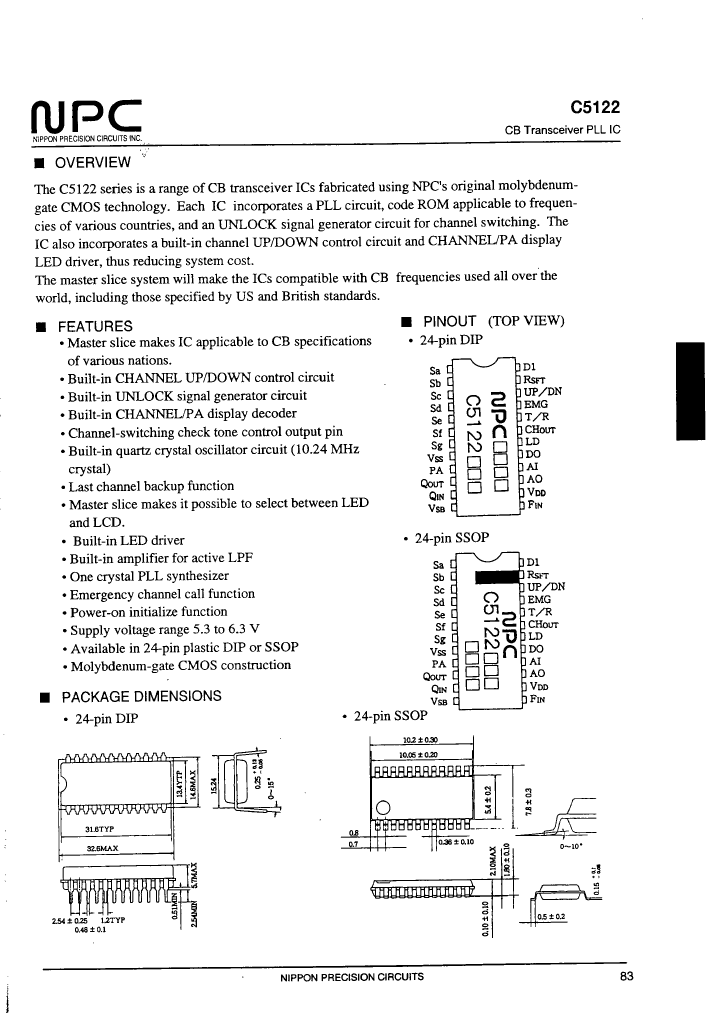

C5122A2P Overview

PLL/Frequency Synthesis Circuit, CMOS, PDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NPC
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of terminals	24
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE

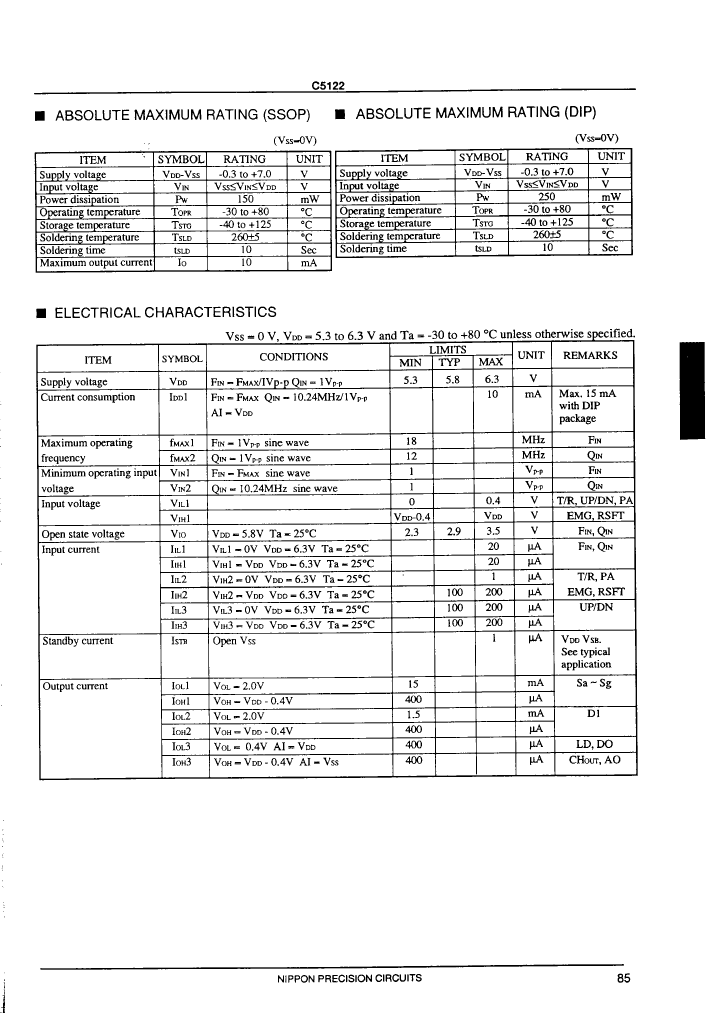

power supply	5.3/6.3 V
Certification status	Not Qualified
Maximum supply current (Isup)	15 mA
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
