5KP110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KP110

5KP110: Description5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size966KB，4 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

5KP110 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5KP110	-	-	View	Buy Now

5KP110 Overview

5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE

5KP110 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	PLASTIC, R-6, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW ZENER IMPEDANCE
Maximum breakdown voltage	149 V
Minimum breakdown voltage	122 V
Breakdown voltage nominal value	136 V
Shell connection	ISOLATED
Maximum clamping voltage	196 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	265
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	110 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

TVS

5KP

SERIES

GPP TRANSIENT VOLTAGE SUPPRESSOR

5000 WATT PEAK POWER 5.0 WATT STEADY STATE

FEATURES

Plastic package has underwriters laboratory

Glass passivated chip construction

5000 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

R-6

Ratings at 25 C ambient temperature unless otherwise specified.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load,

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types 5KP5.0 thru 5KP110

Electrical characteristics apply in both direction

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

RATINGS

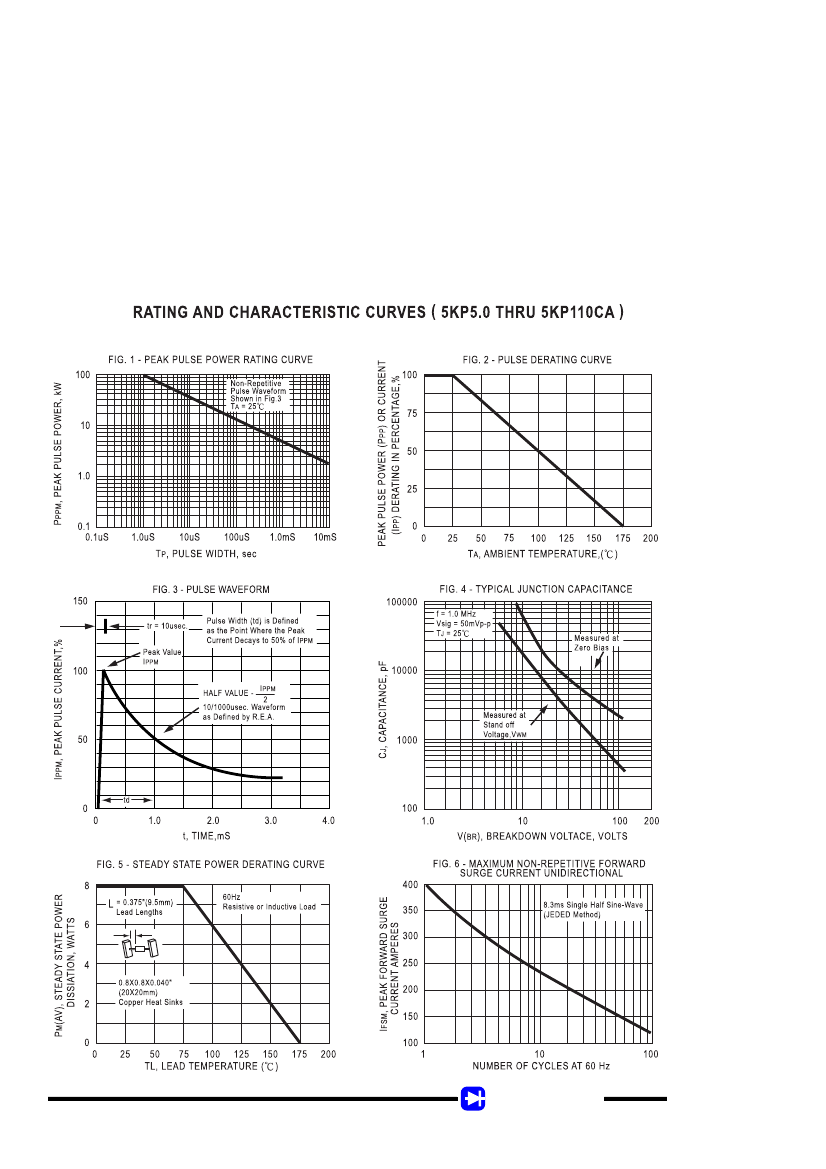

Peak Pulse Power Dissipation with a 10/1000uS

waveform (Note 1, FIG.1)

Peak Pulse Current with a 10/1000uS waveform (Note 1, Fig. 3)

Steady State Power Dissipation at T

= 75 C lead lengths

0.375” (9.5mm) (Note 2)

Peak Forward Surge Current, 8.3ms single half sine wave-

superimposed on rated load( JEDEC METHOD ) (Note 3)

Instantaneous Forward Voltage at 100A, (Note 3)

Operating and Storage Temperature Range

SYMBOL

PPM

M(AV)

FSM

, T

STG

VALUE

Minimum 5000

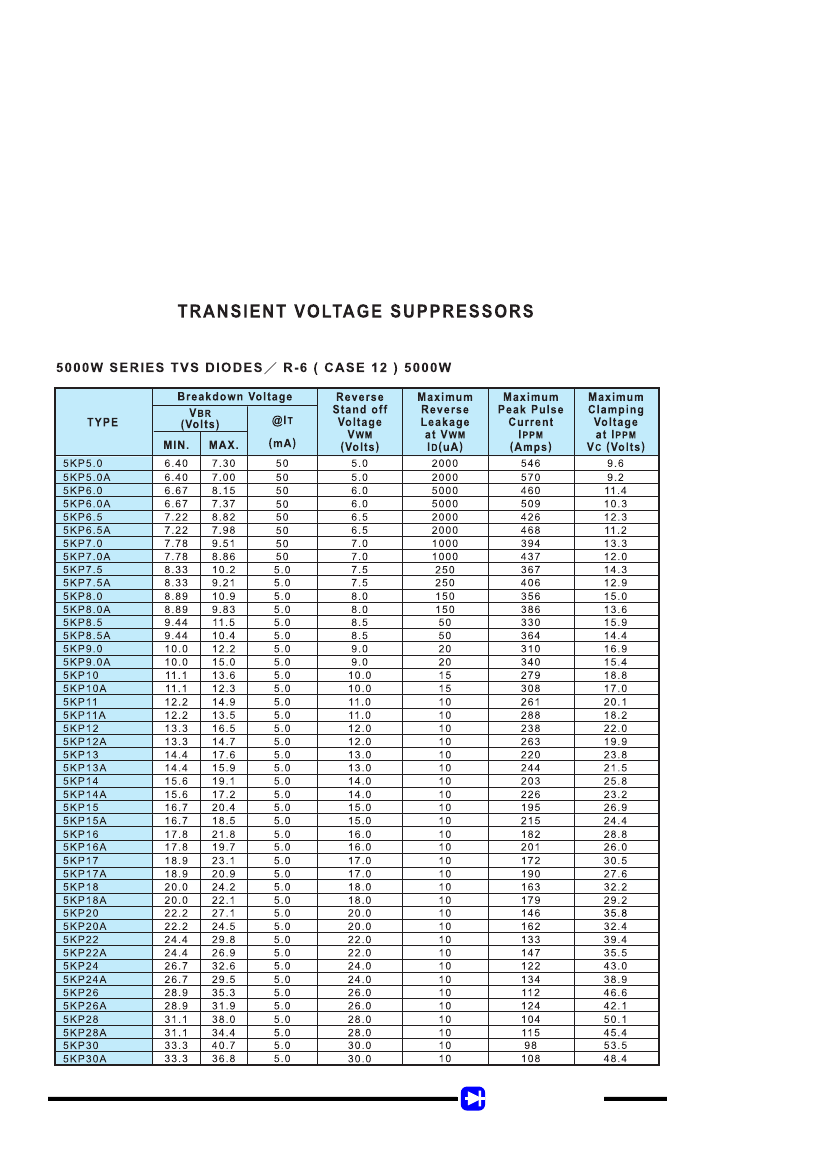

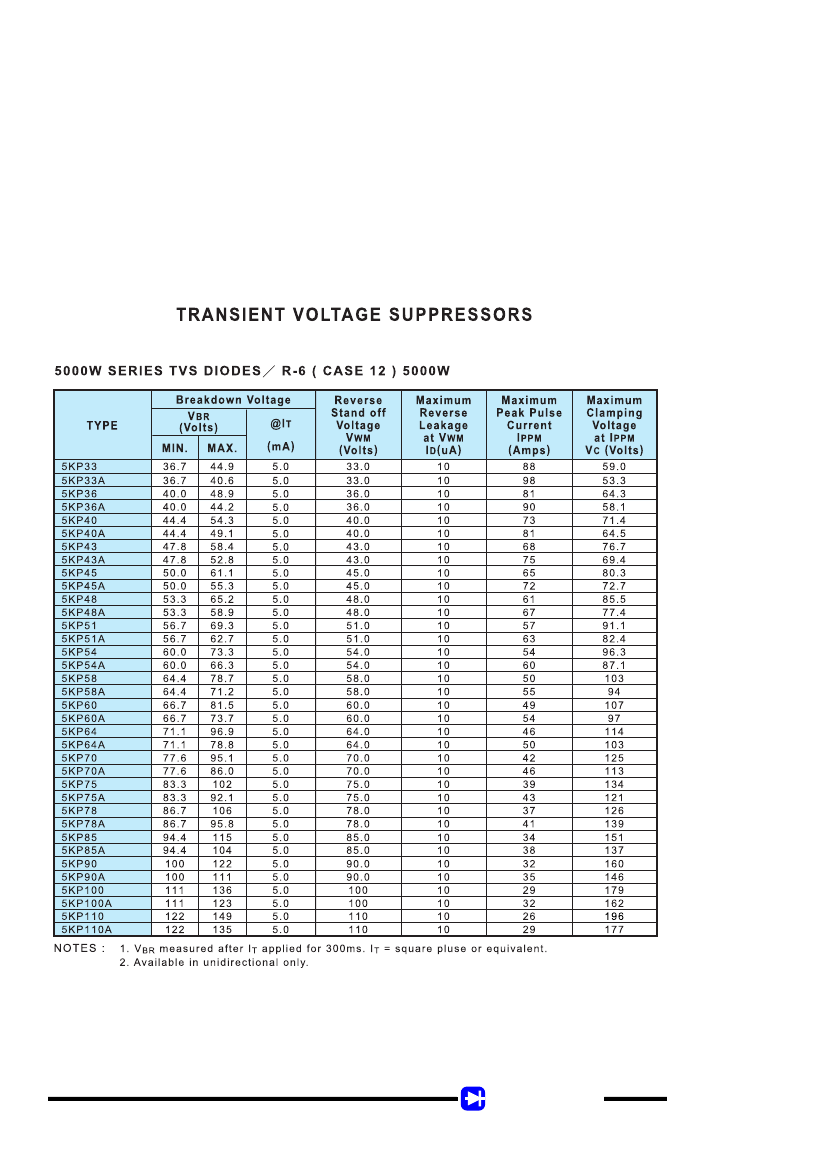

SEE TABLE 1

8.0

400

3.5

-55 to + 175

UNITS

Watts

Amps

Watts

Amps

Volts

1998-8

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25

C per Fig.2.

2. Mounted on copper pad area of 0.8 X 0.8” ( 20 X 20mm ) per Fig. 5

3. Measured on 8.3mS single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
