HM41-12020 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> HM41-12020

Preview

HM41-12020: DescriptionPulse Transformer, GATE DRIVE Application(s), 20:20:20,; CategoryPower management transformer; File Size84KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

HM41-12020 Overview

Pulse Transformer, GATE DRIVE Application(s), 20:20:20,

HM41-12020 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
Reach Compliance Code	compliant
ECCN code	EAR99
application	GATE DRIVE
Certification	VDE
high	20 mm
length	24 mm
Manufacturer's serial number	HM41
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
physical size	L24XB14XH20 (mm)
Primary inductance	860 µH
surface mount	NO
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	20:20:20
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

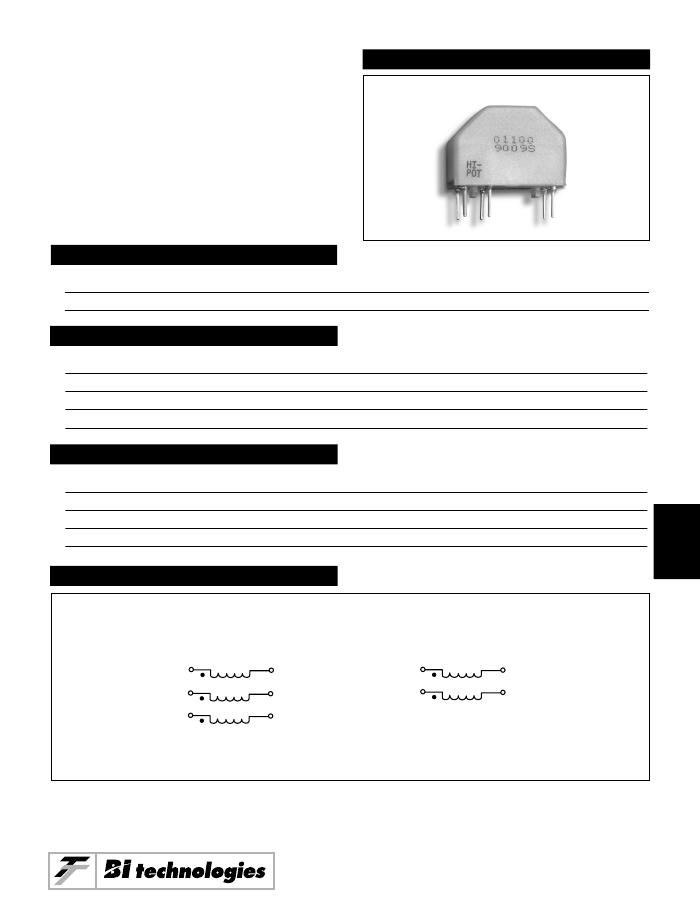

MODEL HM41 SERIES

Toroid Style

Gate Drive Transformers

with Mounting Bracket

FEATURES AND BENEFITS

• Complies with VDE safety requirements

• Custom designs available

APPLICATIONS

•

Switching power supply

Motor control circuit

Ofﬁce equipment

CRT display

ELECTRICAL / ENVIRONMENTAL

Insulation Resistance, Minimum

Insulation System

Temperature Rise, Maximum

Current Rating

SCHEMATICS

100 Megohms

Tefzel Wire

40°C

0.3 Amps

6

Schematic 1

(3)

(2)

(1)

N3

N2

N1

(4)

(5)

(6)

(3)

(1)

Schematic 2

N2

N1

(4)

(6)

Speciﬁcations subject to change without notice.

6-85

Model HM41 Series
