APL5508/5508R/5509/5509R
Low I
Q
, Low Dropout 560mA Fixed Voltage Regulator
Features
•
•
•
•
•
•
•
•
•
•
•
•
Low Quiescent Current : 60µA (No load)
Low Dropout Voltage : 600mV (@560mA)
Very low Shutdown Current : < 0.5uA
Fixed Output Voltage : 1.5V ~ 4.5V
by Step 0.1V Increment
Stable with Aluminum, Tantalum or Ceramic
Capacitors
No Protection Diodes Needed
Built in Thermal Protection
Built in Current Limit Protection
Controlled Short Circuit Current : 50mA
Fast Transient Response
SOT-23, SOT-89 and SOT-223 Packages
Lead Free and Green Devices Available
(RoHS Compliant)
General Description
The APL5508/5508R/5509/5509R is low-power and low
dropout linear regulator, which operates in the rage of
2.7V to 6V input voltage and delivers up to 560mA
output current. Typical dropout voltage is only 600mV
(typical) at 560mA output current. The APL5508/5508R/
5509/5509R regulator with low 60µA quiescent cur-
rent is ideal for battery powered system appliances.
The APL5508/5508R/5509/5509R regulator is stable
with a 4.7µF ceramic capacitor. The features of cur-
rent limit, short circuit current limit, and over-tempera-
ture protection protect the device against current over
loads and over temperature. The APL5508/5508R/
5509/5509R regulator is available in SOT-23, SOT-89,
or SOT-223 packages.
Applications
•
•
•
•
•
5V to 3.3~4.3V Linear Regulators
3.3V to 1.5~2.5V Linear Regulators
CD-R/W, DVD Player
LAN Card, ADSL/Cable Modem
Computers
Pin Configuration
SOT-23 Top View
GND 1
3 VIN
VOUT 2
VIN 2
VOUT 3
VOUT 1
3 GND
SOT-23 Top View
SOT-89 Top View
GND 1
VIN 2
VIN
(Tab)
VOUT 1
GND 2
VIN 3
SOT-89 Top View
GND
(Tab)
APL5508
SOT-223 Top View
GND 1
VIN 2
VOUT 3
VIN
(Tab)
GND 1
VOUT 2
VIN 3
APL5509
APL5508
SOT-223 Top View
SOT-223 Top View
VOUT 1
VOUT
(Tab)
GND 2
VIN 3
GND
(Tab)
APL5509
SOT-223 Top View
VIN 1
GND 2
VOUT 3
GND
(Tab)
APL5508
APL5508R
APL5509
APL5509R
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise
customers to obtain the latest version of relevant information to verify before placing orders.
Copyright
©
ANPEC Electronics Corp.
Rev. A.8 - Mar., 2008
1
www.anpec.com.tw
APL5508/5508R/5509/5509R
Ordering and Marking Information
APL5508
APL5508R
APL5509
APL5509R
Assembly Material
Handling Code
Temperature Range
Package Code
Voltage Code
Package Code
A : SOT-23
D : SOT-89
V : SOT-223
Temperature Range
C : 0 to 70
o
C
Handling Code
TR : Tape & Reel
Voltage Code :
15 : 1.5V ~ 45 : 4.5V
Assembly Material
L : Lead Free Device
G : Halogen and Lead Free Device
APL5508R
XXXXX 15
APL5509R
XXXXX 15
APL5508 -15 D/V :
APL5508
XXXXX 15
APL5509
XXXXX 15
APL5508R -15 D/V :
APL5509 -15 D/V :
APL5509R -15 D/V :
XXXXX - Date Code
;
15 - 1.5V
Note: ANPEC lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; which
are fully compliant with RoHS. ANPEC lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J-STD-020C for
MSL classification at lead-free peak reflow temperature. ANPEC defines “Green” to mean lead-free (RoHS compliant) and halogen
free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by
weight).
Marking Information
SOT-23 package
Product
Name
APL5508-15A
APL5508-16A
APL5508-17A
APL5508-18A
APL5508-19A
APL5508-20A
APL5508-21A
APL5508-22A
APL5508-23A
APL5508-24A
APL5508-25A
APL5508-26A
APL5508-27A
APL5508-28A
APL5508-29A
APL5508-30A
APL5508-31A
APL5508-32A
APL5508-33A
APL5508-34A
APL5508-35A
APL5508-43A
APL5508-45A
Marking
589X
58AX
58BX
58CX
58DX
58EX
58FX
58GX
58HX
58IX
58JX
58KX
58LX
58MX
58NX
58OX
58PX
58QX
58RX
58SX
58TX
58UX
58VX
Product
Name
APL5508R-15A
APL5508R-16A
APL5508R-17A
APL5508R-18A
APL5508R-19A
APL5508R-20A
APL5508R-21A
APL5508R-22A
APL5508R-23A
APL5508R-24A
APL5508R-25A
APL5508R-26A
APL5508R-27A
APL5508R-28A
APL5508R-29A
APL5508R-30A
APL5508R-31A
APL5508R-32A
APL5508R-33A
APL5508R-34A
APL5508R-35A
APL5508R-43A
APL5508R-45A
Marking
58R9X
58RAX
58RBX
58RCX
58RDX
58REX
58RFX
58RGX
58RHX
58RIX
58RJX
58RKX
58RLX
58RMX
58RNX
58ROX
58RPX
58RQX
58RRX
58RSX
58RTX
58RUX
58RVX
Product
Name
APL5509-15A
APL5509-16A
APL5509-17A
APL5509-18A
APL5509-19A
APL5509-20A
APL5509-21A
APL5509-22A
APL5509-23A
APL5509-24A
APL5509-25A
APL5509-26A
APL5509-27A
APL5509-28A
APL5509-29A
APL5509-30A
APL5509-31A
APL550932A
APL5509-33A
APL5509-34 A
APL5509-35A
APL5509-43A
APL5509-45A
Marking
599X
59AX
59BX
59CX
59DX
59EX
59FX
59GX
59HX
59IX
59JX
59KX
59LX
59MX
59NX
59OX
59PX
59QX
59RX
59SX
59TX
59UX
59VX
Product
Name
APL5509R-15A
APL5509R-16A
APL5509R-17A
APL5509R-18A
APL5509R-19A
APL5509R-20A
APL5509R-21A
APL5509R-22A
APL5509R-23A
APL5509R-24A
APL5509R-25A
APL5509R-26A
APL5509R-27A
APL5509R-28A
APL5509R-29A
APL5509R-30A
APL5509R-31A
APL5509R-32A
APL5509R-33A
APL5509R-34 A
APL5509R-35A
APL5509R-43A
APL5509R-45A
Marking
59R9X
59RAX
59RBX
59RCX
59RDX
59REX
59RFX
59RGX
59RHX
59RIX
59RJX
59RKX
59RLX
59RMX
59RNX
59ROX
59RPX
59RQX
59RRX
59RSX
59RTX
59RUX
59RVX
The last character “X” in the marking is for data code.
Copyright
©
ANPEC Electronics Corp.
Rev. A.8 - Mar., 2008
2
www.anpec.com.tw
APL5508/5508R/5509/5509R
Pin Description
PIN
NO.
1
2
3
NAME
VIN
GND
VOUT
Function
Input Supply Pin. Provides power to the IC, V
IN
can range from 2.7V to 6V and should be bypassed
with at least a 1µF capacitor to GND.
Ground. Solder to a large ground plane for heatsinking.
LDO Output. Sources up to 560mA. Bypass with at least a 4.7µF capacitor to GND.
Absolute Maximum Ratings
Symbol
V
IN
, V
OUT
Parameter
Input Voltage, Output Voltage
Rating
6.5
SOT-23 : 260
SOT-89 : 180
SOT-223 : 135
SOT-23 : 130
SOT-89 : 60
SOT-223 : 40
Internally Limited
150
-65 to +150
260
Unit
V
R
TH,JA
Thermal Resistance – Junction to Ambient
°C/W
R
TH,JC
Thermal Resistance – Junction to Case
°C/W
P
D
T
J
T
STG
T
L
Power Dissipation
Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering, 10 second)
W
°C
°C
°C
Note 1: Stresses beyond the absolute maximum rating may damage the device and operating in the absolute maximum rating
conditions may affect device reliability.
Note 2: The maximum allowable power dissipation at any T
A
(ambient temperature) is calculated using: P
D
(max) = (T
J
– T
A
) /
θ
JA
;
T
J
= 125°C. Exceeding the maximum allowable power dissipation will result in excessive die temperature.
Electrical Characteristics
Unless otherwise noted these specifications apply over full temperature, C
IN
= 1
µ
F, C
OUT
= 4.7
µ
F, T
A
= 0 to 70°C. Typical
values refer to T
A
= 25°C.
Symbol
V
IN
V
OUT
I
LIMIT
I
SHORT
I
OUT
REG
LINE
REG
LOAD
Parameter
Input Voltage
Output Voltage
Circuit Current Limit
Short Current
Output Current
Line Regulation
Load Regulation
V
OUT
+1.0V< V
IN
<6.0V, 0mA< I
OUT
< I
MAX
V
IN
= V
OUT
+1V
V
OUT
= 0V
V
IN
= V
OUT
+1V
V
OUT
+1V< V
IN
<6.0V, I
OUT
= 1mA
V
IN
= V
OUT
+1V, 0mA< I
OUT
< I
MAX
560
1
20
10
40
Test Conditions
APL5508/9/R
Min.
Typ.
Max.
2.7
V
OUT
-2%
V
OUT
800
50
6
V
OUT
+2%
Unit
V
V
mA
mA
mA
mV
mV
Copyright
©
ANPEC Electronics Corp.
Rev. A.8 - Mar., 2008
3
www.anpec.com.tw
APL5508/5508R/5509/5509R
Electrical Characteristics (Cont.)
Unless otherwise noted these specifications apply over full temperature, C
IN
= 1µF, C
OUT
= 4.7µF, T
A
= 0 to 70°C. Typical
values refer to T
A
= 25°C.
Symbol
Parameter
Load Transient
Test Conditions
V
IN
= V
OUT
+1V, I
OUT
= 1mA-560mA in 1µs
1.5V≤V
OUT
<2.0V
V
DROP
Dropout Voltage
(Note3)
2.0V≤V
OUT
<2.5V
I
OUT
= 560mA
2.5V≤V
OUT
<3V
3V≤V
OUT
≤
3.5V
PSRR
I
Q
Ripple Rejection
Quiescent Current
f≤1kHz, 1Vpp at V
IN
= V
OUT
+1.0V
No load
I
OUT
= 560mA
OTS
Over Temperature
Shutdown
Over Temperature
Hysteresis
Output Voltage
Temperature Coefficient
Junction Temperature
Output Capacitor
ESR
0.01
0
4.7
0.1
1
45
0.7
0.6
55
60
450
150
30
50
125
100
500
°C
°C
ppm/°C
°C
µF
Ω
0.8
0.7
dB
µA
APL5508/9/R
Min.
Typ.
Max.
150
1.1
0.9
250
1.3
1.0
V
Unit
mV
TC
T
J
C
OUT
Note3 : Dropout voltage definition : V
IN
-V
OUT
when V
OUT
is 2% below the value of V
OUT
for V
IN
= V
OUT
+1V.
Typical Application Circuit
V
IN
2.7V to 6V
VIN
APL5508/R
APL5509/R
GND
VOUT
V
OUT
C
IN
1µF
C
OUT
4.7µF
1
Copyright
©
ANPEC Electronics Corp.
Rev. A.8 - Mar., 2008
4
www.anpec.com.tw
APL5508/5508R/5509/5509R

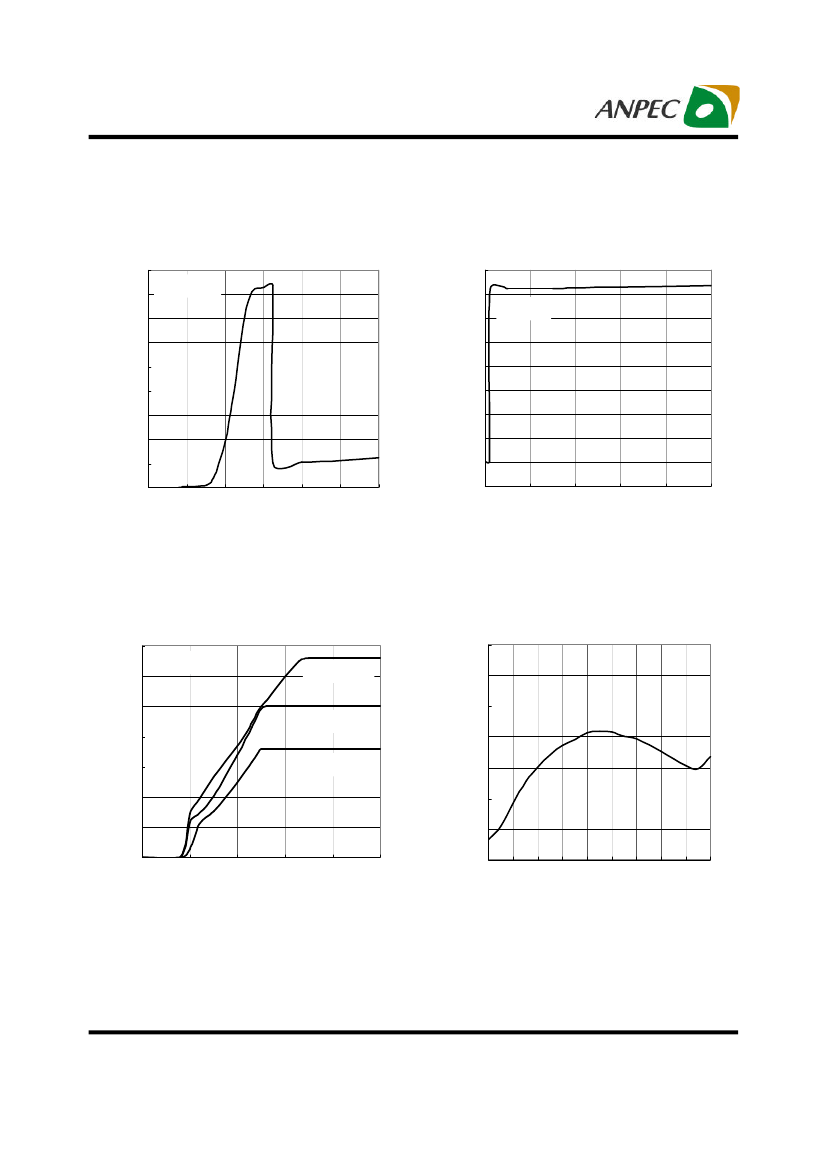

Typical Operating Characteristics
Quiescent Current vs. Input Voltage
450
400
APL5508/9/R-33
Quiescent Current vs. Output Current
APL5508/9/R-33
450
400
I
OUT
=0mA
Quiescent Current (µA)
Quiescent Current (µA)
350
300
250
200
150
100
50
0
0
1
2
3
4
5
6
350
300
250
200
150
100
50
0
0
V
IN
=5V
100
200
300
400
500
Input Voltage (V)
Output Current (mA)
Output Voltage vs. Input Voltage
3.5
Output Voltage vs. Junction Temperature
3.31
APL5508/9/R-33
I
OUT
=0mA
3
V
OUT
=3.3V
3.31
Output Voltage (V)
Output Voltage (V)
5
2.5
3.30
3.30
3.29
3.29
3.28
3.28
V
OUT
=2.5V
2
1.5
1
0.5
0
0
1
2
3
4
V
OUT
=1.8V
-40
-20
0
20
40
60
80
100 120 140
Input Voltage (V)
Junction Temperature (°C)
Copyright
©
ANPEC Electronics Corp.
Rev. A.8 - Mar., 2008
5
www.anpec.com.tw
