10130049-342LF

Description
Board Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size112KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

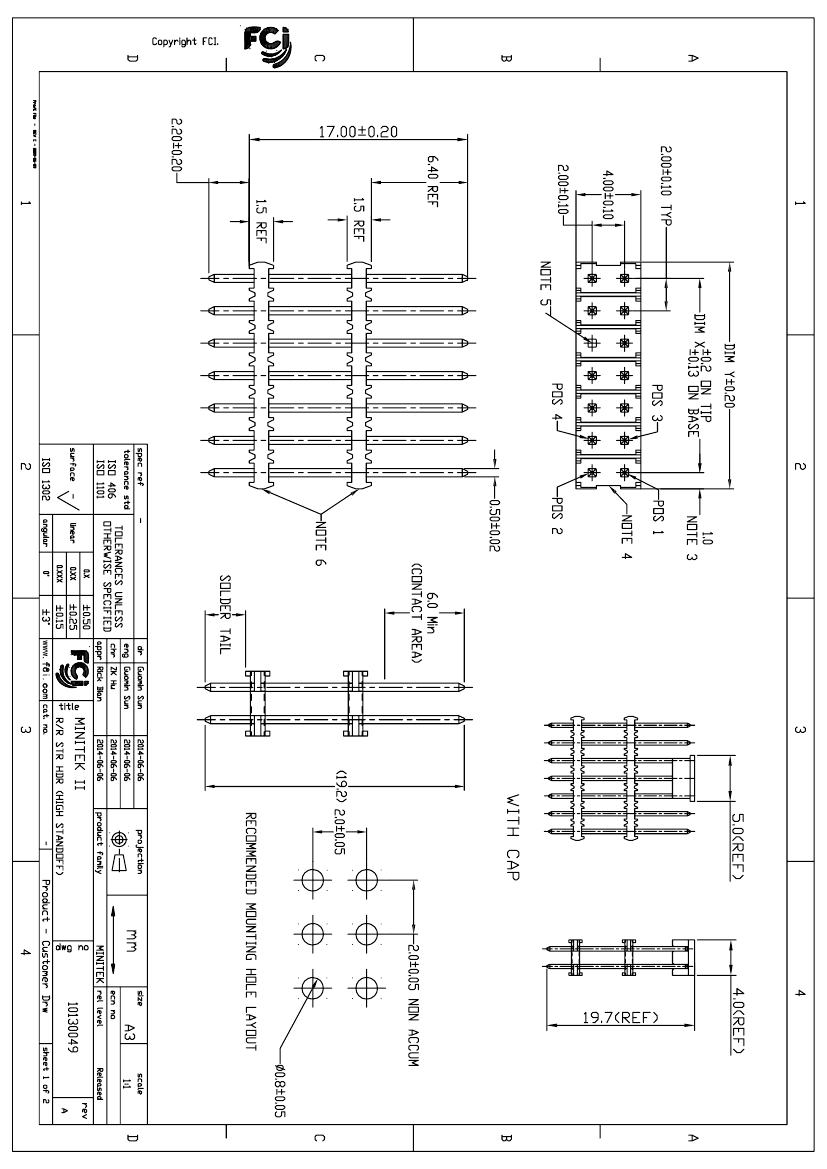

10130049-342LF Overview

Board Connector, 42 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator

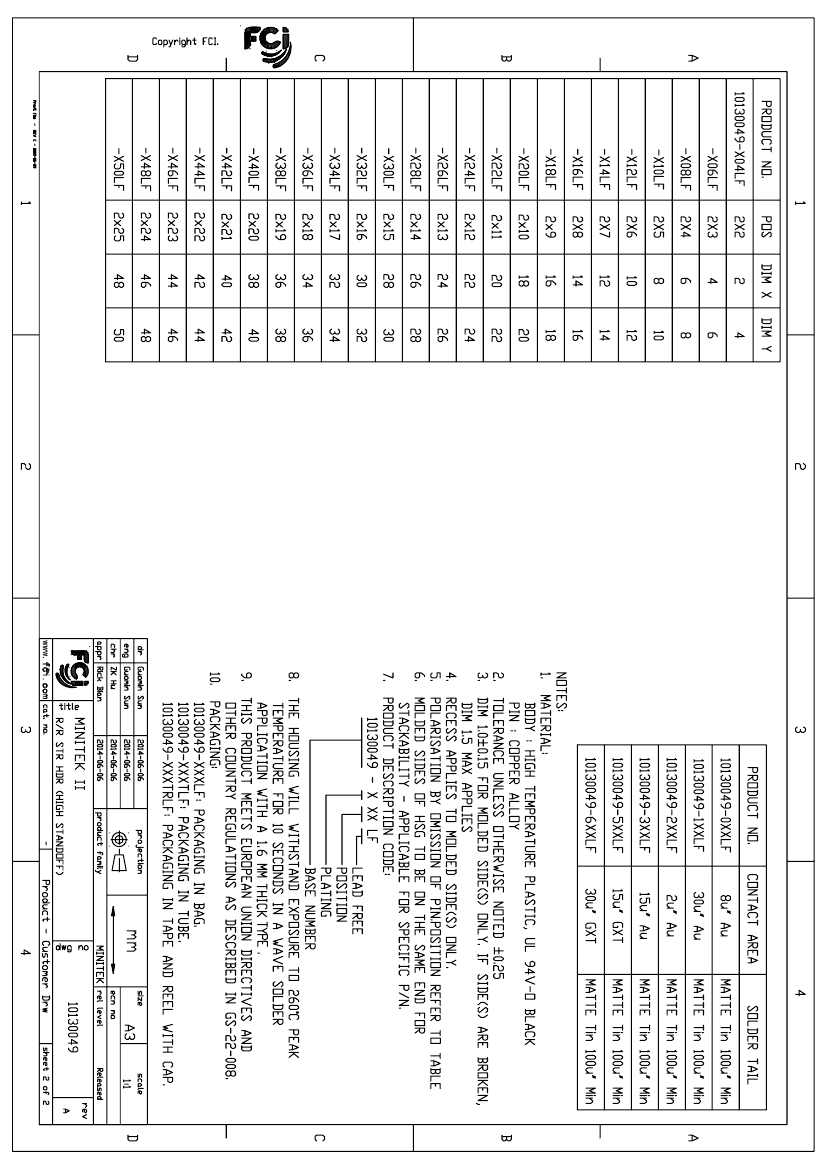

10130049-342LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
Reach Compliance Codecompliant
body width0.157 inch
subject depth0.417 inch
body length1.654 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedMatte Tin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
JESD-609 codee3
Manufacturer's serial number10130049
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.087 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts42
Base Number Matches1
PDS: Rev :A
STATUS:Released
Printed: Feb 01, 2016
