UE27-BC54-20H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> UE27-BC54-20H

UE27-BC54-20H: DescriptionUSB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size145KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UE27-BC54-20H Overview

USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT

UE27-BC54-20H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARISED
body width	0.435 inch
subject depth	0.642 inch
body length	0.474 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (40)
Contact completed and terminated	MATTE TIN (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER B SQ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	1500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.7178 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.112 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

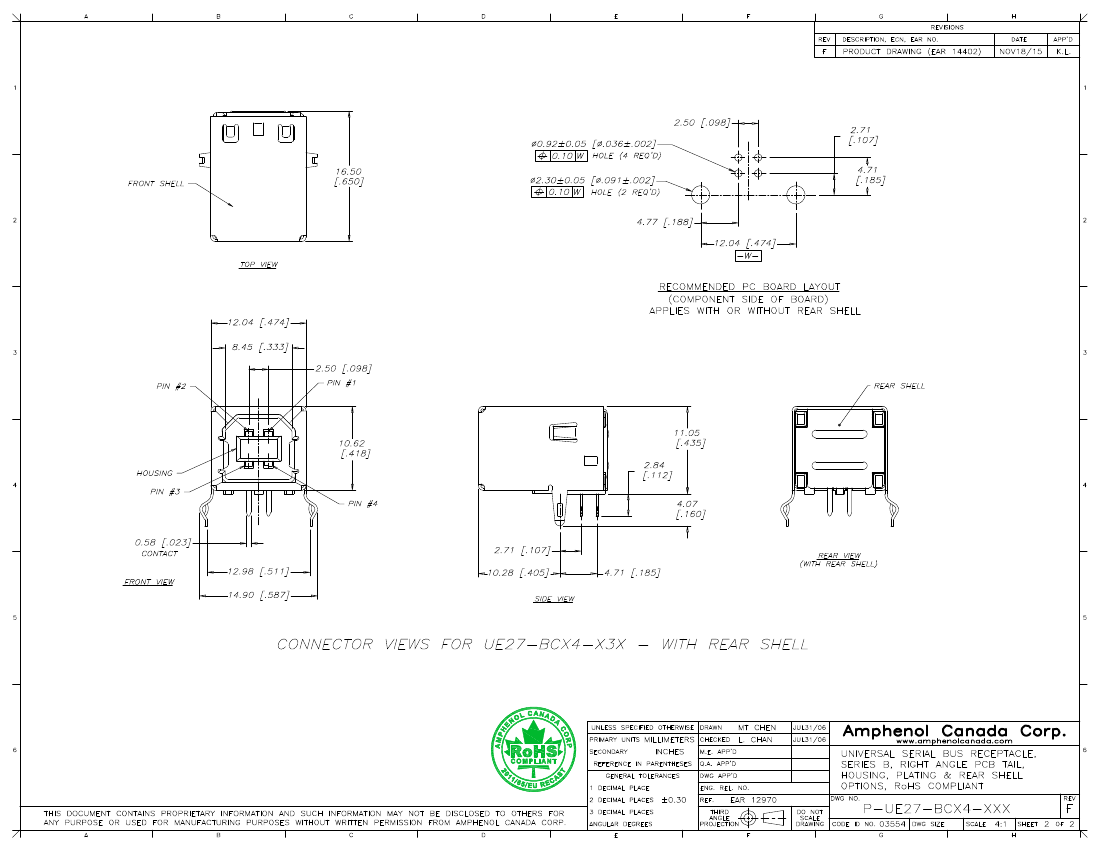

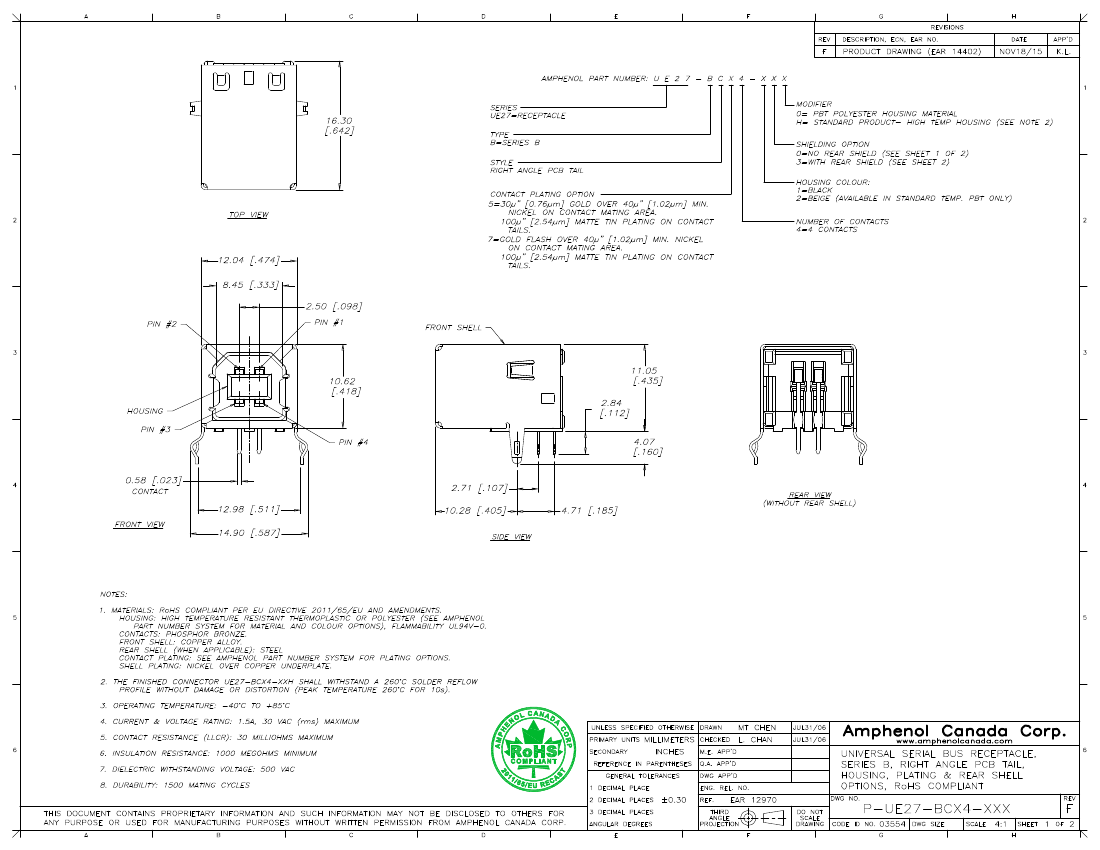

Preview

Download Datasheet

View All

UE27-BC54-20H Related Products

	UE27-BC54-20H	UE27-BC74-100	UE27-BC74-130	UE27-BC54-100	UE27-BC54-23H	UE27-BC54-130
Description	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT	USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown
Other features	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED
body width	0.435 inch	0.435 inch	0.435 inch	0.435 inch	0.435 inch	0.435 inch
subject depth	0.642 inch	0.642 inch	0.642 inch	0.642 inch	0.642 inch	0.642 inch
body length	0.474 inch	0.474 inch	0.474 inch	0.474 inch	0.474 inch	0.474 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (40)	MATTE TIN	MATTE TIN	GOLD (30) OVER NICKEL (40)	GOLD (30) OVER NICKEL (40)	GOLD (30) OVER NICKEL (40)
Contact completed and terminated	MATTE TIN (100)	MATTE TIN (100)	MATTE TIN (100)	MATTE TIN (100)	MATTE TIN (100)	MATTE TIN (100)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ	USB, SER B SQ
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	1500 Cycles	1500 Cycles	1500 Cycles	1500 Cycles	1500 Cycles	1500 Cycles
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	YES	YES	YES	NO	YES
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	NO	NO	NO	YES	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of ports	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.7178 mm	2.7178 mm	2.7178 mm	2.7178 mm	2.7178 mm	2.7178 mm
Plating thickness	30u inch	FLASH inch	FLASH inch	30u inch	30u inch	30u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Terminal length	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	-	-	1	1	1
