MIL-DTL-5015, Matrix
TABLE OF CONTENTS
®
MIL-DTL-5015, Matrix
®
• Design Characteristics, Customer Options
• Insert Availability and Identification
• Insert Arrangement Drawings
• Class Descriptions, Performance Specifications
• Insert Alternate Positioning
• How to Order, Military and Commercial
Shell Styles:
• Wall mounting receptacle threaded MS3450 (9440)
• Cable connecting receptacle threaded MS3451 (9441)
• Box mounting receptacle threaded MS3452 (9442)
• Jam nut receptacle threaded MS3454 (9444)
• Straight plug threaded MS3456 (9446)
• Straight plug, self-locking threaded MS3459 (9816)
• Quick disconnect plug push-pull coupling (9817/9818)
• Matrix
®
5015 with RADSOK
®
contacts, for high power
• Contact information, sealing plugs, tools
• Protection caps, dust caps
• Additional MIL-DTL-5015 connectors offered by Amphenol
433
434, 435
436-444
445
446
447
448
449
450
451
452
453
454
455
456
457-459
460
MIL-DTL-5015, Matrix
®
Typical Markets:
• Military Vehicles
• Heavy Equipment
• Military Aircraft
• Power Generation
Amphenol
Aerospace
432
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
Amphenol
®
/Matrix
®
MS/Standard Circular
MIL-DTL-5015 with Crimp Rear Release Contacts
Amphenol
Aerospace
38999
III
HD
Dualok
II
I
SJT
A
ccessories
A
quacon
H
erm/Seal
PCB

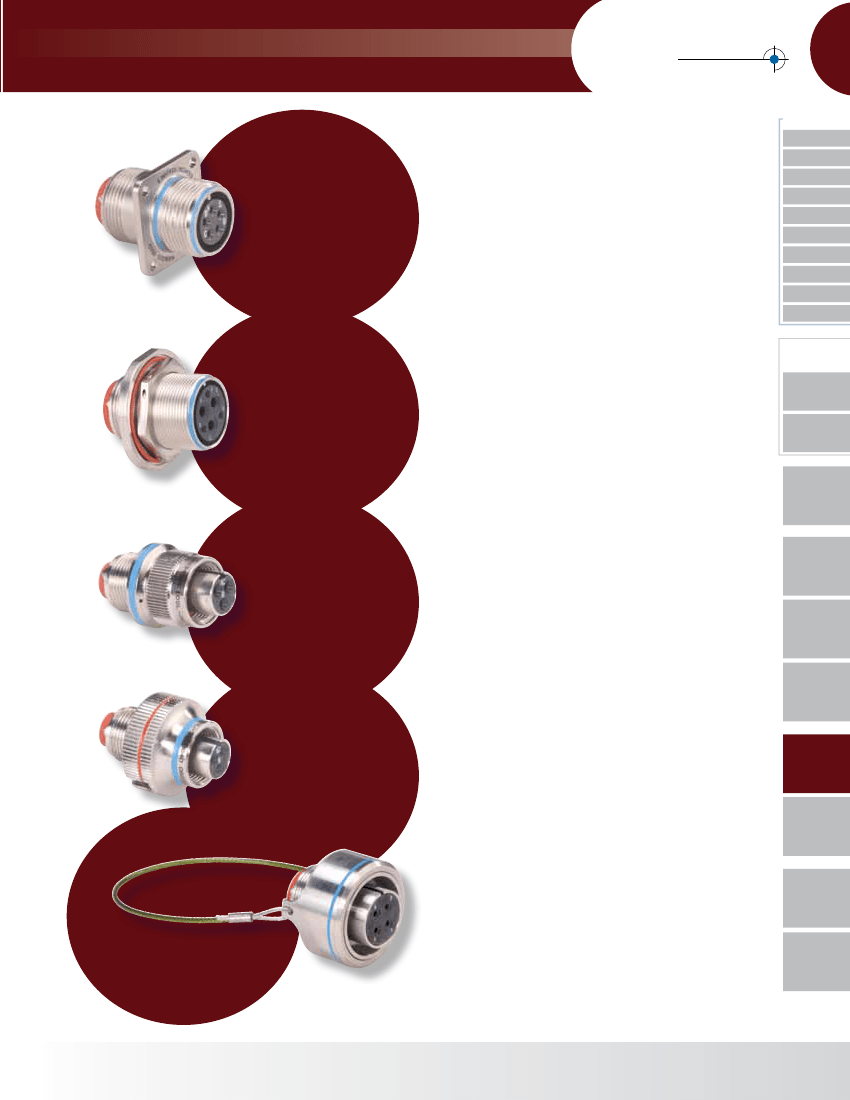

MS3450
wall mounting receptacle
MS3451
cable connecting receptacle
MS3452
box mounting receptacle
Amphenol broadens their MS/Standard family of
connectors with the MIL-DTL-5015 Crimp Rear
Release Series.
This series provides an alternative to the older MIL-C-5015
solder type It bridges the gap between an old connector
standard and the environmental and high performance needs
of current technologies
DESIGN CHARACTERISTICS
• Medium to heavy weight cylindrical
• MS345( ) series intermateable with existing MIL-DTL-5015
solder or crimp versions on existing equipment
• Captive coupling nut mechanism, utilizes retaining rings
in combination with “L” washers to prevent inadvertent
disassembly
• Multiple interlock systems ensure permanent
insert retention
• Positive control of dielectric separation with guaranteed
ease of contact insertion
• Positive contact retention provided by a closely toleranced
damage-proof metal retention clip
• Completely sealed against environmental extremes with -
• Individual contact seals (conical risers on pin interface)
• Interfacial seals between contacts
• Peripheral gasket shell-to-shell seals
• Redundant rear wire seals and insert-to-shell seals
HIgH
SPEED
Fiber
Optics
Contacts
Cables
Connectors
MS3454
jam nut receptacle
EMI Filter
Transient
Matrix 2
26482
MS3456
plug with threaded
coupling
CUSTOMER OPTIONS
• Seven mounting styles, in shell sizes 8 to 48*
• Threaded coupling or self-locking plug (MS3459) with an
internal ratcheting mechanism to prevent unmating due to
vibration and shock, eliminating the need for safety wiring
• Proprietary quick disconnect plug, with or without
lanyard available
• Classes include aluminum or stainless steel shells,
or firewall capability
• MS and Proprietary versions available
• Some styles are supplied to McDonnell Douglas
Specification BAN 7025, DC60 Series
• Accommodation of contact sizes 0 to 16
• Over 100 insert arrangement patterns available,
accommodating from a minimum of 1 to a maximum
of 85 circuits
• Alternate positioning available
• Thermocouple pin and socket contacts are available**
83723 III
Matrix|Pyle
Pyle
26500
MS3459
plug with self-locking
coupling nut
Crimp Rear
Release
Matrix
Class L
5015
22992
Back-
Shells
Commercial quick
disconnect plug
with/without lanyard
Options
Others
NOTE: MIL-C-5015 is superseded to MIL-DTL-5015 for all
Amphenol/Matrix rear release crimp type contacts
* Consult Amphenol Aerospace for availability of shell sizes 44 and 48
** Consult Amphenol Aerospace for information on thermocouple contacts
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
433
Amphenol
Aerospace
38999
III
HD
Dualok
II
I
SJT
MIL-DTL-5015 Crimp Rear Release

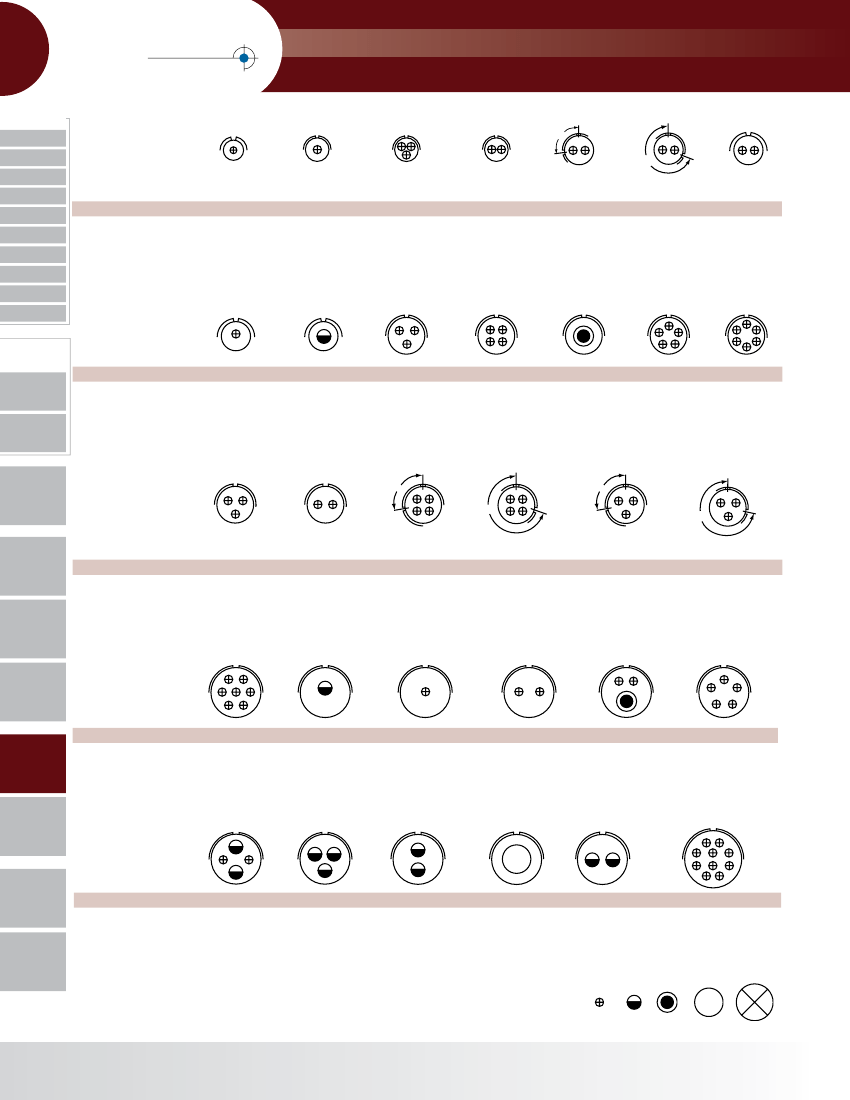

Insert Arrangements
F
ront Face of Pin Insert or Rear Face of Socket Insert Illustrated
C
B
A
A
B
100˚
B
A
B
A
B
A
250˚
100° Rotation
of 12S-3
250° Rotation
of 12S-3
A
ccessories
A
quacon
H
erm/Seal
PCB
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
8S-1
A
1
16
10S-2
A
1
16
10SL-3
A***
3
16
10SL-4
A
2
16
12S-1
A
2
16
12S-2
A
2
16
12S-3
A
2
16
C
A
B
D
C
A
B
E
D
C
A
B
E
F
A
B
HIgH
SPEED
Fiber
Optics
Connectors
D
C
Contacts
Cables
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
12S-4
D
1
16
12-5
D
1
12
14S-1**
A
3
16
14S-2
Inst.
4
16
14-3
A
1
8
14S-5
Inst.
5
16
14S-6
Inst.
6
16
EMI Filter
Transient
100˚
B
C
B
A
100˚
A
B
A
D
C
D
A
C
A
B
C A
B
250˚
C
B
260˚
Matrix 2
26482
100° Rotation
of 14S-2
250° Rotation
of 14S-2
100° Rotation
of 14S-1
260° Rotation
of 14S-1
83723 III
Matrix|Pyle
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
14S-7
A
3
16
14S-9**
A
2
16
14S-10
Inst.
4
16
14S-11
Inst.
4
16
14S-12
A
3
16
14S-13
A
3
16
26500
F
E
D
G
A
B
C
A
B
D
E
A
Pyle
B
A
C
C
B
Crimp Rear
Release
Matrix
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
16S-1
A
7
16
16-2*
E
1
12
16S-3*
B
1
16
16S-4*
D
2
16
5015
16-7*
A
1
8
2
16
16S-8
A
5
16
22992
Class L
A
D
C
B
C
A
A
H
B
A
A
I
J
B
C
D
G
F
E
B
B
Back-
Shells
Options
Others
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
16-9
A
2
12
2
16
16-10
A
3
12
16-11
A
2
12
16-12
A
1
4
16-13
A
2†
12
18-1
B, C, F, G = A; Bal. = Inst.
10
16
* Consult Amphenol Aerospace for availability
** Inactive for new design
*** Service rating Inst Class K
† one Iron contact and one Constantan contact
CONTACT LEGEND
16
12
8
4
0
436
