E13D8
Series
• RoHS Compliant (Pb-Free)
• LVPECL Output Oscillators
• 3.3V Supply Voltage
• Ceramic 6-pad SMD Package
• Stability to ±25ppm
• Tri-State Output
• Complementary Output
• Available on Tape and Reel
• Wide Range of Available Frequencies
H
L
W
E13D8
2.0
7.0
5.0
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Nominal Frequency
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
CC
)
Input Current
Frequency Tolerance / Stability
75MHz, 77.76MHz, 80MHz, 100MHz, 106.25MHz, 125MHz, 150MHz, 155.52MHz, 156.25MHz, 159.375MHz, 187.5MHz,
212.5MHz, 250MHz, 311.04MHz, 312.5MHz
0°C to +70°C, or -40°C to +85°C
-55°C to 125°C
3.3V
DC
±5%
75mA Maximum
±50ppm Maximum, or ±25ppm Maximum
With Load
Inclusive of All Conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, 1st Year Aging
at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Peak to Peak Output Voltage Swing
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Logic Control / Additional Output
Tri-State Input Voltage
20% to 80% of waveform
at 50% of waveform
V
CC
-1.4V
DC
Minimum, V
CC
-1.2V
DC
Typical, V
CC
-0.9V
DC
Maximum
V
CC
-1.7V
DC
Minimum, V
CC
-1.85V
DC
Typical, V
CC
-2.0V
DC
Maximum
600mVdc Minimum, 800mVdc Typical, 1000mVdc Maximum
300pSec Typical, 600pSec Maximum
50 ±5(%)
50 Ohms into V
CC
-2.0V
DC
Tri-State and Complementary Output
Enables Output
Enables Output
Disables Output: High Impedance
600µA Maximum
10 mSeconds Maximum
0.7pSec Typical, 1 pSec Maximum
-60dBc/Hz at 10Hz Offset
-90dBc/Hz at 100Hz Offset
-115dBc/Hz at 1kHz Offset
-129dBc/Hz at 10kHz Offset
-130dBc/Hz at 100kHz Offset
-131dBc/Hz at 1MHz Offset
-148dBc/Hz at 10MHz Offset
Standby Current
Start Up Time
RMS Phase Jitter
Typical Phase Noise
V
IH
of 70% of V
CC
Minimum
No Connection
V
IL
of 30% of V
CC
Maximum
Disabled Output, High Impedance, Without Load
FJ = 12kHz to 20MHz
Fo=156.250MHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E13D8
CERAMIC
3.3V
OS4N
10/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
E13D8 D 2 F - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
C=±25ppm Maximum over 0°C to +70°C
D=±50ppm Maximum over 0°C to +70°C
G=±25ppm Maximum over -40°C to +85°C
H=±50ppm Maximum over -40°C to +85°C
AVAILABLE OPTIONS
Blank=Tubes
TR=Tape and Reel (Standard)
FREQUENCY
LOGIC CONTROL/ADDITIONAL OUTPUT
F=Tri-State and Complementary Output
DUTY CYCLE
2=50 ±5(%)
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS

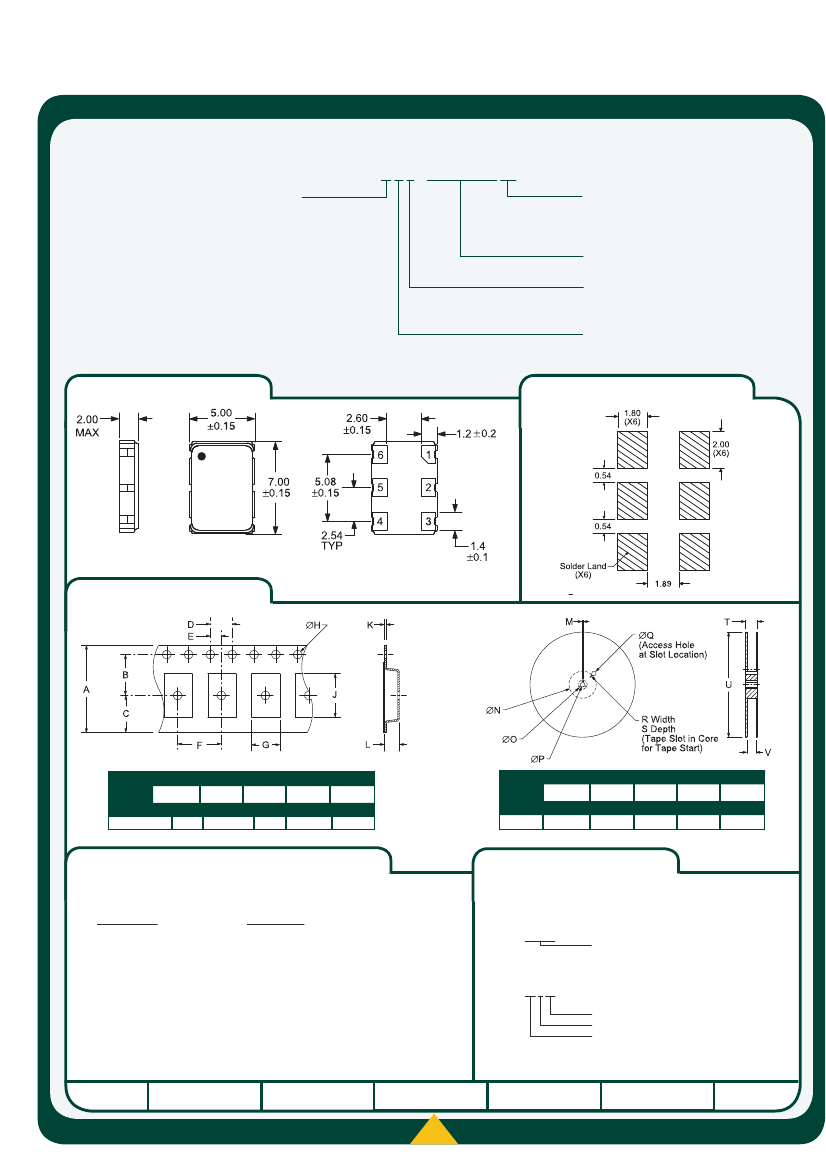

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Tri-State
Pin 2: No Connect
Pin 3: Case Ground
Pin 4: Output
Pin 5: Complementary Output
Pin 6: Supply Voltage
Tolerances= +0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E13D8
CERAMIC
3.3V
OS4N
10/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
