E13C7
Series
• RoHS Compliant (Pb-Free)
• LVPECL Output Oscillators
• 3.3V Supply Voltage
• Ceramic 6-pad SMD Package
• Stability to ±25ppm
• Tri-State Output
• Complementary Output
• Available on Tape and Reel
• Wide Range of Available Frequencies
H
L
W
E13C7
2.0
7.0
5.0
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Nominal Frequency (MHz)
77.760M, 78.125M, 80M, 80.157M, 85M, 87.125M, 90M, 100M, 106.25M, 110M, 119M, 120M, 122.888M,
124.4M, 125M, 127M, 128M, 133M, 133.333M, 137.472M,150M, 155.52M, 156.25M, 159.375M,
161.1328M, 162.5M, 166M, 170M, 175M, 176.83816M, 187.5M, 187.509375M, 200M, or 212.5MHz
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
CC
)
Input Current
Frequency Tolerance / Stability
0°C to 70°C, or -40°C to +85°C
-55°C to 125°C
3.3V
DC
±5%
75mA Maximum
±100ppm, ±50ppm, or
±25ppm Maximum
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Logic Control / Additional Output
V
IH
of 70% of V
CC
Minimum
Tri-State Input Voltage
No Connection
V
IL
of 30% of V
CC
Maximum
Without Load
Standby Current
Start Up Time
RMS Phase Jitter
Typical Phase Noise
FJ = 12kHz to 20MHz
Fo=156.250MHz
Inclusive of All Conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, 1st Year
Aging at 25°C, Shock, and Vibration
0°C to 85°C
-40°C to 0°C
0°C to 85°C
-40°C to 0°C
20% to 80% of waveform
at 50% of waveform
V
CC
-1.025V
DC
Minimum
V
CC
-1.085V
DC
Minimum
V
CC
-1.620V
DC
Maximum
V
CC
-1.555V
DC
Maximum
300pSec Typical, 700pSec Maximum
50 ±5(%)
50 Ohms into V
CC
-2.0V
DC
Tri-State and Complementary Output
Enables Output
Enables Output
Disables Output: High Impedance
30µA Maximum
10 mSeconds Maximum
0.4pSec Typical, 1 pSec Maximum
-60dBc/Hz at 10Hz Offset
-95dBc/Hz at 100Hz Offset
-125dBc/Hz at 1kHz Offset
-143dBc/Hz at 10kHz Offset
-145dBc/Hz at 100kHz Offset
-145dBc/Hz at 1MHz Offset
-146dBc/Hz at 10MHz Offset
CLASS
REV
.
DATE
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
ECLIPTEK CORP.
OSCILLATOR
E13C7
CERAMIC
3.3V
OS1M
01/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
E13C7 E 2 F - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
C=±100ppm Maximum over 0°C to +70°C
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
G=±100ppm Maximum over -40°C to +85°C
H=±50ppm Maximum over -40°C to +85°C
J=±25ppm Maximum over -40°C to +85°C (*)
DUTY CYCLE
2=50 ±5(%)
(*) Not available over Nominal Frequency range of 176.83816MHz to 212.500MHz

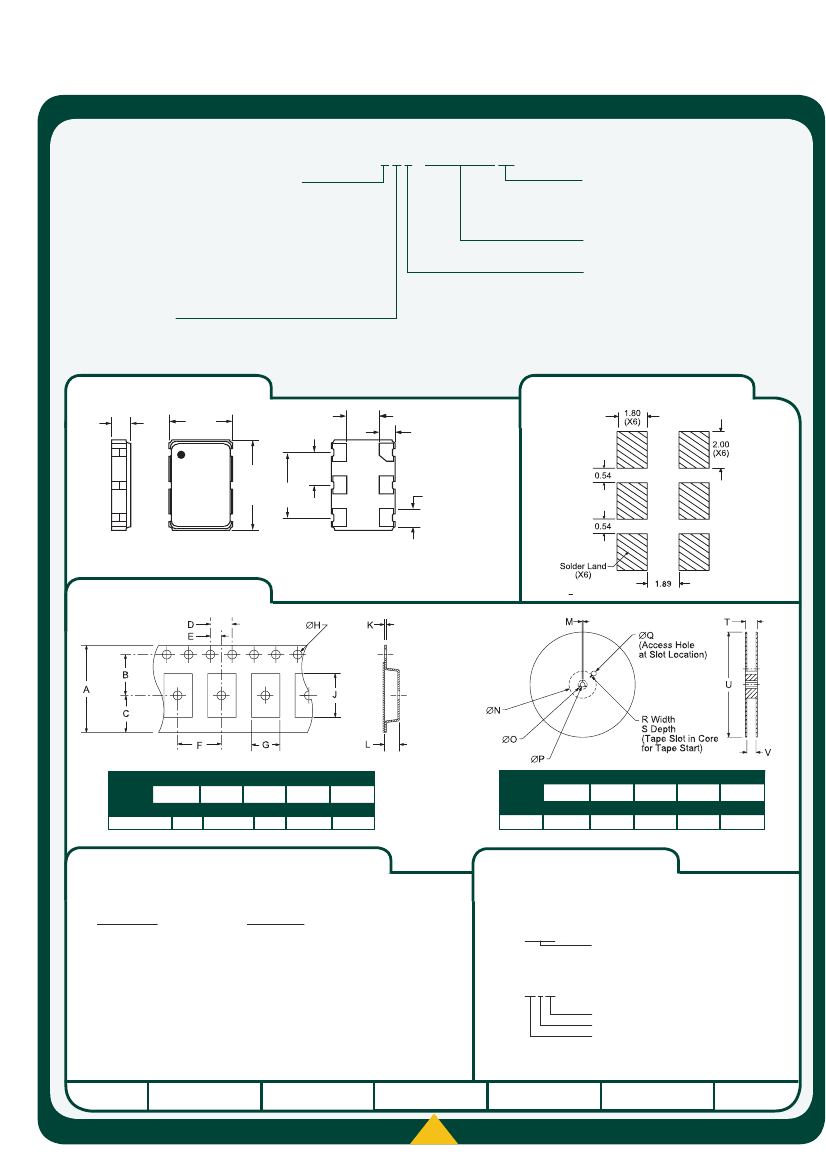

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
AVAILABLE OPTIONS
Blank=Tubes
TR=Tape and Reel (Standard)
FREQUENCY
LOGIC CONTROL/ADDITIONAL OUTPUT
F=Tri-State and Complementary Output
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
2.00
MAX
5.00
±0.20
MARKINING
ORIENTATION
2.60 +0.40/-0.60
1.2
+0.3/
-0.2
7.00
+0.70/ 5.08
-0.15 ±0.20
2.54
±0.10
6
5
4
1
2
3
1.4
±0.2
Pin 1: Tri-State
Pin 2: No Connect
Pin 3: Case Ground
Pin 4: Output
Pin 5: Complementary Output
Pin 6: Supply Voltage
Tolerances= +0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E13C7
CERAMIC
3.3V
OS1M
01/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
