91
Headers
to
Type 157
Type 046
Type 318
page 127
page 128

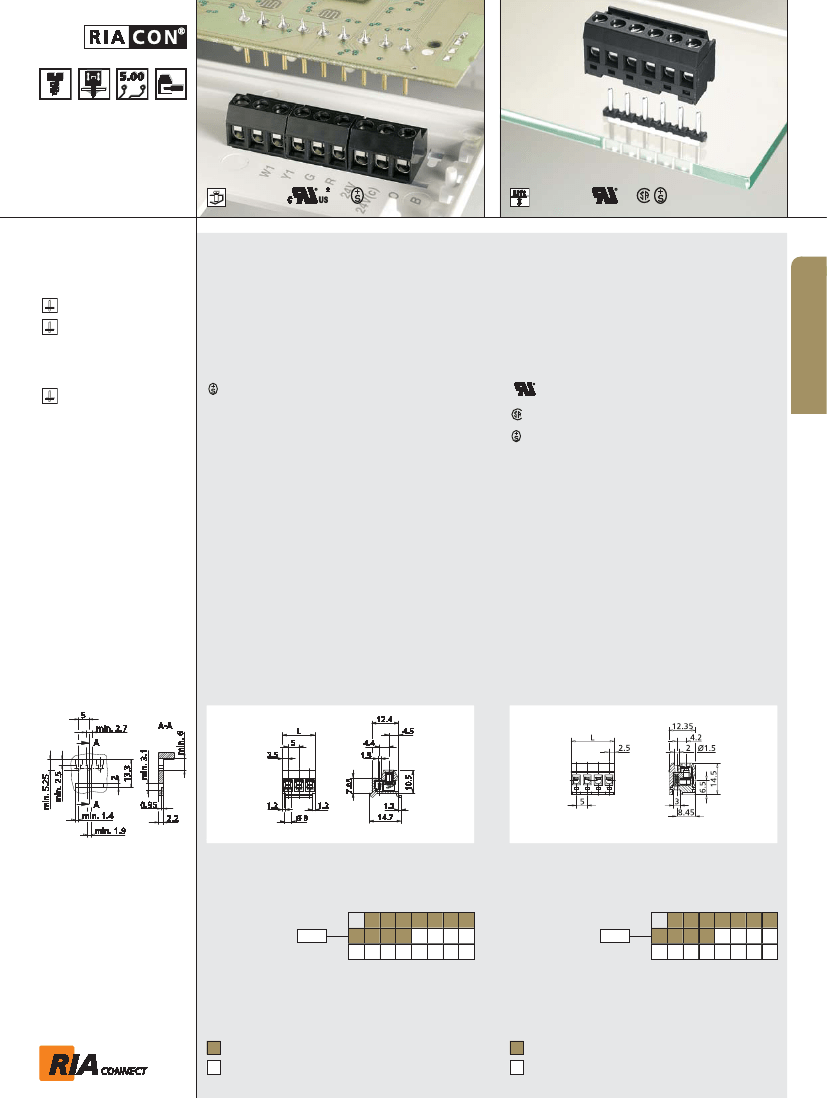

Type 157
Screw type terminal block, pluggable, centerline 5 mm /
0.197 inches, wire entry perpendicular to plug
direction, contact system with integrated wire
protection, top side pin insertion, clip system for
mounting into a housing
Type 137
Screw type terminal block, pluggable, centerline 5 mm /
0.197 inches, wire entry perpendicular to plug
direction, lift system, female contact
A
Technical Data
to
Type 137
Type 027
page 126
0.08 - 1.5 mm² 320 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4.15 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Pole size
2 - 24
Color
black
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 26 - 12
300 / 15 / 26 - 12
Accessories
for
Type 137
Coding pin
720161 short
720161 long
Coding set
page 203
0.12 - 1.5 mm² 250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Pole size
2 - 24
Color
black
716846
page 203
Mounting flange
750313 right
750314 left
page 200
Installation conditions
for type 157
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 157
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 137
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
311571
P/N
311371
* approval pending
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
