MARQUAGE MATIERE
MATERIAL IDENTIFICATION
REPERE EMPREINTE
CAVITY NUMBER
INDICE PIECE SUR PAVE AMOVIBLE
REVISION LEVEL ON REMOVABLE PIECE
SECTION
ECHELLE : 5
SCALE : 5
J-J
DETAIL
C DETAIL
ECHELLE : 5
SCALE
5:1
C
J
REPERE
INDEX
DESIGNATION
designation
QUANTITE
quantity
MATIERE
material
COULEUR
colour
GRIS
GREY
REFERENCE
PART NUMBER
211I8018
211I1018
211I0018
1
DATEUR EN CREUX
SUR AUTRE FACE
DU PORTE-CLIP
PORTE-CLIPS
harness connector
1
PBT 15%FV
PBT 15%GF
MARRON
BROWN
NOIR
BLACK
RECESSED DATE
ON CONNECTOR
OPPOSITE SIDE
MARQUAGE SIGLE
ACRONYM MARKING
2
JOINT INTERFACIAL
interface seal
2
SILICONE
silicone
VERT
green
211M044
XX = annee
year
6
3
GRILLE
spacer
2
PBT 15%FV
PBT 15%GF
JAUNE
yellow
211M4041
4
REPERAGE VOIES
CONTACT CAVITY NUMBER
5
GROMMET
grommet
2
SILICONE
silicone
ROUGE
red
211M043
PLAQUETTE
plate
1
PBT 15%FV
PBT 15%GF
NOIR
black
211M0042
+0.10
0
2.75
0.60
#
0.05
2.15
J
SECTION
SECTION
H-H
B
B-B
5
4
#
0.20
1
42.65
2
6.00
4.35
3
SEE DETAIL
14 x
10/3
= 46.67
C
18.00
B
14 x
10/3
= 46.67
0.10
A C
0.10
2 x
6.00
C
27.25
A C
B
A
0.10
A C
PINCEMENT ADMIS: 1 MM
PERMISSIBLE PINCHING
H
Pincement maxi admis: 1.2
Maxi permissible pinching: 1.2
REPEREAGE VOIES
CONTACT CAVITY NUMBER
+0.30
-0.20
NOTA:
-1- PRODUCT IDENTIQUE A REF. : 211 PC 90 2 S X 008
SAUF MARQUAGE
product identical to ref: 211 A 90 S X 008
excepted marking
-2-
cote M.S.P.
S.P.C. dimension
H
136.20
#
0.30
36.65
-3- ALVEOLE POUR CONTACT CLIP: SICMA 2
cavity for female terminal contact: sicma 2
A
6.60
3
211 PC 90 2 S 8 009
A
33511060
01
GRIS
GREY
A
A
11.40
A
2
211 PC 90 2 S 1 009
A
33511059
01
MARRON
BROWN
-
-
-
-
-
-
-
DELPHI P/N ADDED
CODING COTATION OF GREY AND BROWN CORRECTED-
PDS MIGRATION - CHANGE CAD SYSTEM : TOPCAD --> PRO-E
A
16.20
1
211 PC 90 2 S 0 009
A
10776517
01
NOIR
BLACK
#
0.20 #
1°
--
A
VOIR TABLEAU
--
grey
--
--
--
A1
COTE A PRISE A L'ENTREE ENTRE
LE CODEUR ET LE DETROMPEUR
DIMENSION A BETWEEN THE CODING
GROOVE AND PROOF GROOVE
A
# 0.10
N $CODAGE
KEY
NUMBER
N $PIECE
PIECE
NUMBER
INDICE PIECE
REVISION
LEVEL
N $PIECE
PIECE
NUMBER
INDICE PIECE
REVISION
LEVEL
1997/05/26
F.MENEZ
F FAURIE
S LACOTE
L ETIFIER
VERSION ANONYME

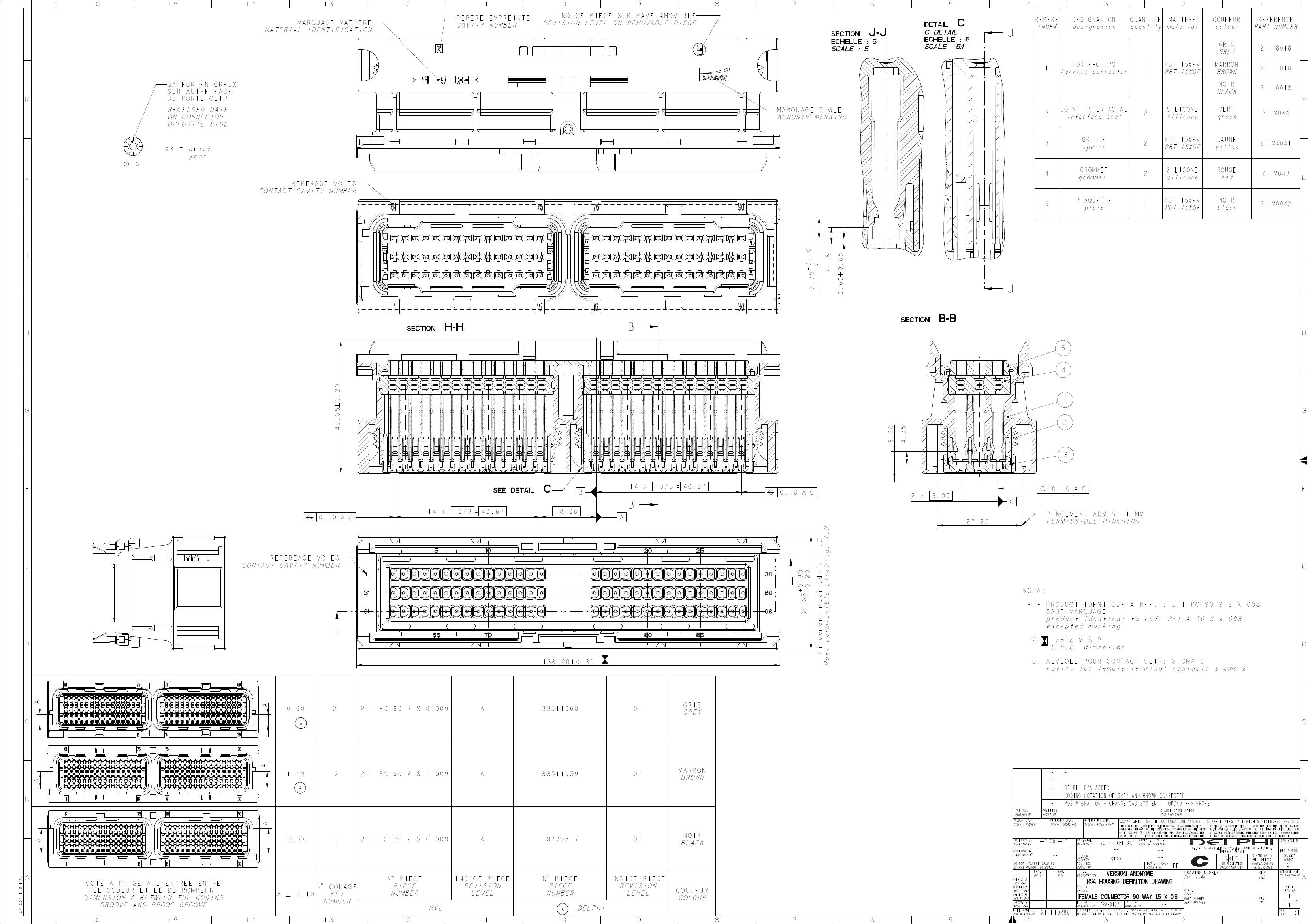

RSA HOUSING DEFINITION DRAWING
FEMALE CONNECTOR 90 WAY 1.5 X 0.8
FRA-0127
--
211FT0280
SERIAL RELEASED
See Table
A
1
1
-
COULEUR
COLOUR
2013/07/19
2013/07/25
2013/08/28
MVL
DELPHI
211FT0280
1:1
