LSFB20-469-001M0

Description
SAW Filter, 1 FUNCTIONS, 469.1875 MHz, SAW FILTER, SURFACE MOUNT
CategoryAnalog mixed-signal IC    filter
File Size81KB,1 Pages
ManufacturerKyocera
Environmental Compliance
Download Datasheet Parametric Compare View All

LSFB20-469-001M0 Overview

SAW Filter, 1 FUNCTIONS, 469.1875 MHz, SAW FILTER, SURFACE MOUNT

LSFB20-469-001M0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKyocera
package instructionROHS COMPLIANT, MINIATURE PACKAGE-8
Reach Compliance Codeunknown
Center frequency or cutoff frequency (fo/fc)469.1875 MHz
filter typeSAW FILTER
high1.8 mm
length7 mm
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL7.0XB5.0XH1.8 (mm)/L0.276XB0.197XH0.071 (inch)
width5 mm
Base Number Matches1

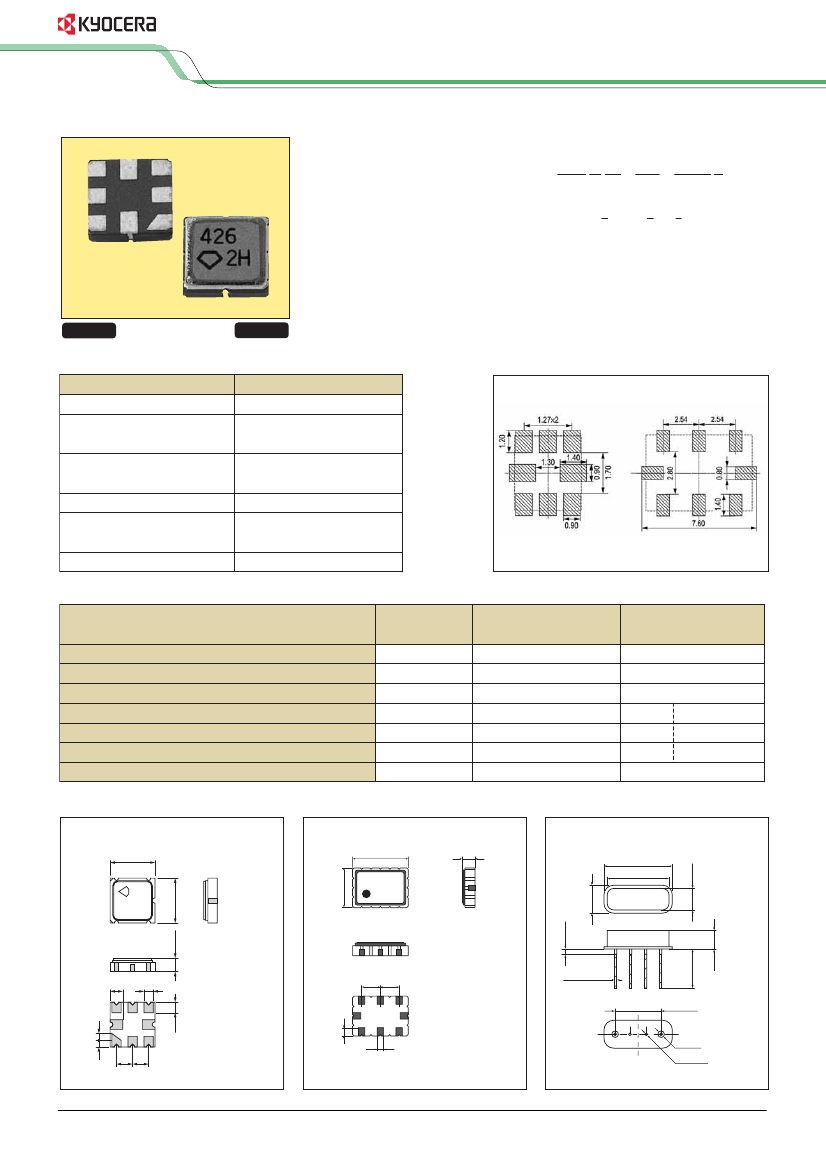

Surface Acoustic Wave (SAW) Filters
400MHz Band SAW Filters for Low Power Radio Communications
LSFB44-426-800K0/LSFB44-429-800K0/LSFA02-434-002M0/LSFA02-422-800K0/LSFA02-440-400K0/LSFB20-469-001M0
Features
• RF filter for transmission and reception.
• Low power consumption.
Miniature
size and light weight
How to Order
LSF B 44 - 426 - 800K 0
q we
r
t y
qLSF······
Li
2
B
4
O
7
SAW Filter
wB···········
Seam weld type
e44·········
Package Number (01, 02·······)
r426·······
Nominal Frequency
t800·······
Pass Bandwidth 800kHz
y0···········
Sub-Number
Applications
• For engine-starter.
• For transceiver.
• For pager.
• For radio phone.
Pb Free
RoHS Conforming
Standard Frequency
Nominal Frequency(MHz)
421.90000
426.08125
426.54
429.5500
433.9200
440.2000
469.1875
Type
LSFA02-422-800K0
LSFA02-426-400K0
LSFB44-426-800K0
LSFA02-429-800K0
LSFB44-429-800K0
LSFA02-434-002M0
LSFA02-440-400K0
LSFB44-440-400K0
LSFB20-469-001M0
Recommended Land Pattern
B44
#6
#7
#5
#7
(Unit : mm)
B20
#6
#5
#8
#4
#8
#4
#1
#2
#3
#1
#2
#3
Specifications
Item
Nominal Frequency
Operating Temperature Range
Storage Temperature Range
Ripple
Insertion Loss
Guaranteed Attenuation
Terminating Impedance
Unit
MHz
˚C
˚C
dB
dB
dB
Conditions
––––––
−10~+60
−30~+70
Fo
±
400kHz
Fo
±
400kHz
(F−21.4)±400kHz
––––––
* : Typ.
0.4 *
2.8 *
60 *
LSFB44-426-800K0
Specifications
426.54
––––––
––––––
1.5
MAX.
3.5
MAX.
50
MIN.
50 Typical
(Unit : mm)
Dimensions
LSFB44
3.50±0.10
5.0±0.2
#7
#6
#5
3.50±0.10
LSFB20
#7
7.0±0.2
#6 #5
1.8MAX.
LSFA02
11.0±0.3
9.95±0.1
4.5±0.3
#4
3.45±0.1
7.62±0.15
(2.5423)
CONNECTION
1:IN(OUT)
φ1.1±0.1
2:GND
3:GND
φ0.45±0.05
4:OUT(IN)
#4
6.35±0.5
#2
#3
3.0±0.3
#8
469 1H
426
1H
#1
#2
#3
#1
#2
#3
#7 #6 #5
1.27 1.27
#8
#4
KSS
#1
#2
#3
422
KSS
1H
1.30MAX.
2–1.0
8–0.7
CONNECTION
1:GND
2:IN(OUT)
3:GND
4:GND
5:GND
6:OUT(IN)
7:GND
8:GND
2.54 2.54
#1 #2 #3
#8
1.1
#7
#6
#5
0.8
#4
CONNECTION
1:GND
2:GND
3:GND
4:IN(OUT)
5:GND
6:GND
7:GND
8:OUT(IN)
φ0.45±0.05
(before solder DIP)
#8
#4
5–0.8
0.5
0.8MAX.
#1
0.5

LSFB20-469-001M0 Related Products

LSFB20-469-001M0 LSFB44-426-800K0 LSFB44-440-400K0 LSFA02-434-002M0
Description SAW Filter, 1 FUNCTIONS, 469.1875 MHz, SAW FILTER, SURFACE MOUNT SAW Filter, 1 FUNCTIONS, 426.54 MHz, SAW FILTER, SURFACE MOUNT SAW Filter, 1 FUNCTIONS, 440.2 MHz, SAW FILTER, SURFACE MOUNT SAW Filter, 1 FUNCTIONS, 433.92 MHz, SAW FILTER, THROUGH HOLE MOUNT
Reach Compliance Code unknown unknown unknown unknown
Center frequency or cutoff frequency (fo/fc) 469.1875 MHz 426.54 MHz 440.2 MHz 433.92 MHz
filter type SAW FILTER SAW FILTER SAW FILTER SAW FILTER
high 1.8 mm 1.3 mm 1.3 mm 3 mm
length 7 mm 3.5 mm 3.5 mm 11 mm
Installation type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT THROUGH HOLE MOUNT
Number of functions 1 1 1 1
Maximum operating temperature 60 °C 60 °C 60 °C 60 °C
Minimum operating temperature -10 °C -10 °C -10 °C -10 °C
physical size L7.0XB5.0XH1.8 (mm)/L0.276XB0.197XH0.071 (inch) L3.5XB3.5XH1.3 (mm)/L0.138XB0.138XH0.051 (inch) L3.5XB3.5XH1.3 (mm)/L0.138XB0.138XH0.051 (inch) L11.0XB4.5XH3.0 (mm)/L0.433XB0.177XH0.118 (inch)
width 5 mm 3.5 mm 3.5 mm 4.5 mm
Base Number Matches 1 1 1 -
