86094228114780NELF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86094228114780NELF

86094228114780NELF: DescriptionBoard Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86094228114780NELF Overview

Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

86094228114780NELF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS : IEC 603-2, MIL-C-55302
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	YES
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

2 3

FCIconnect.com

linear

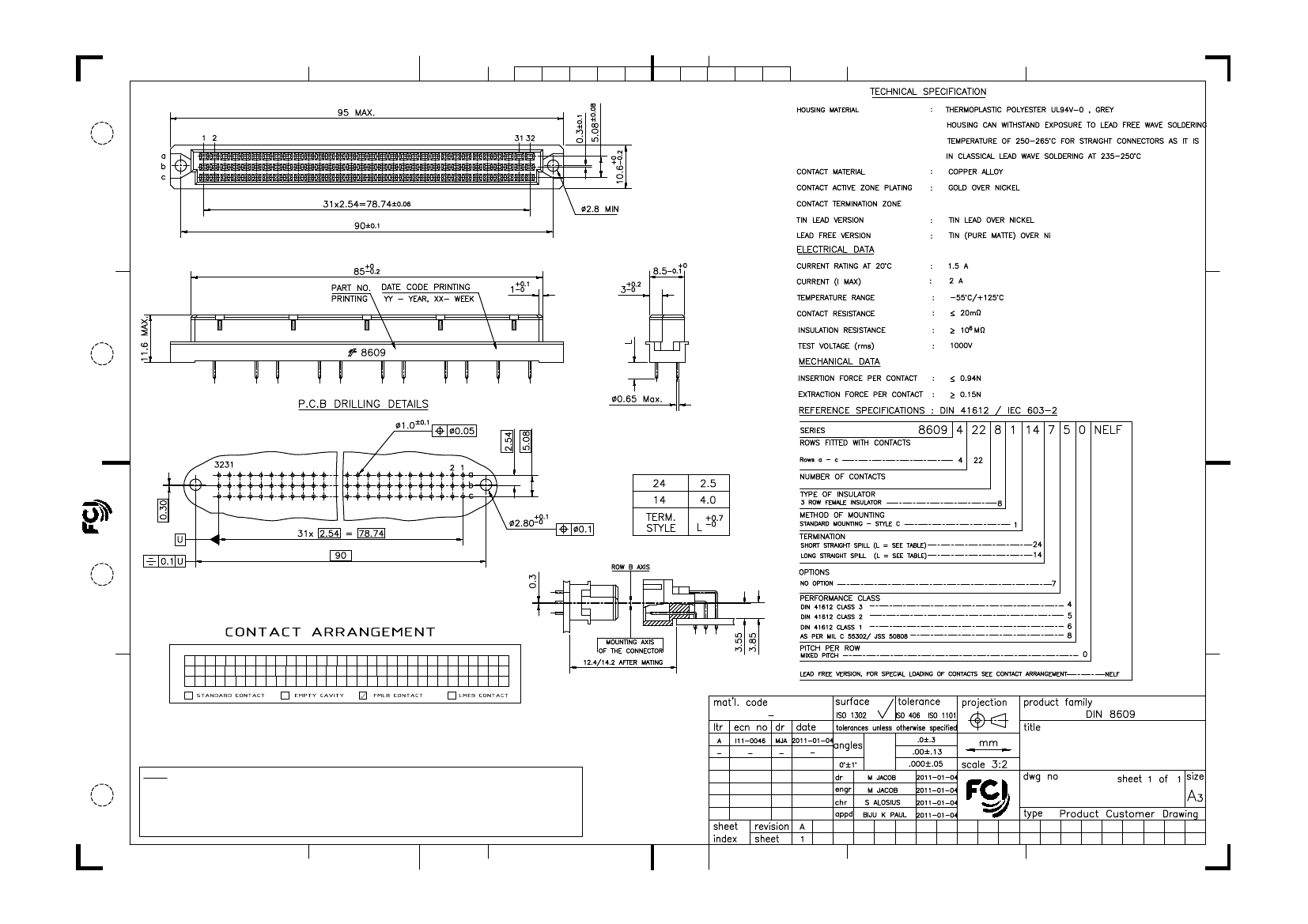

DIN STANDARD RECEPTACLE

STRAIGHT DIN 41612 STYLE-C

C-8609-2265

form: A3

PDM: Rev:A

STATUS:

Released

Printed: Mar 20, 2011

86094228114780NELF Related Products

	86094228114780NELF	86094228124760NELF	86094228114740NELF	86094228124780NELF	86094228124750NELF	86094228124740NELF	86094228114760NELF
Description	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 22 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS : IEC 603-2, MIL-C-55302	STANDARDS : DIN 41612, IEC 603-2	STANDARDS : DIN 41612, IEC 603-2	STANDARDS : IEC 603-2, MIL-C-55302	STANDARDS : DIN 41612, IEC 603-2	STANDARDS : DIN 41612, IEC 603-2	STANDARDS : DIN 41612, IEC 603-2
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	YES	YES	NO	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	YES	NO	NO	YES	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	22	22	22	22	22	22
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol
Manufacturer's serial number	8609	8609	8609	8609	8609	-	8609
Base Number Matches	1	1	1	1	1	-	1
