76314-145LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76314-145LF

76314-145LF: DescriptionBoard Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

76314-145LF Overview

Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE

76314-145LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	11 weeks 1 day
body width	0.2 inch
subject depth	0.335 inch
body length	4.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (51)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLUE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	76314
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	90
UL Flammability Code	94V-0
Base Number Matches	1

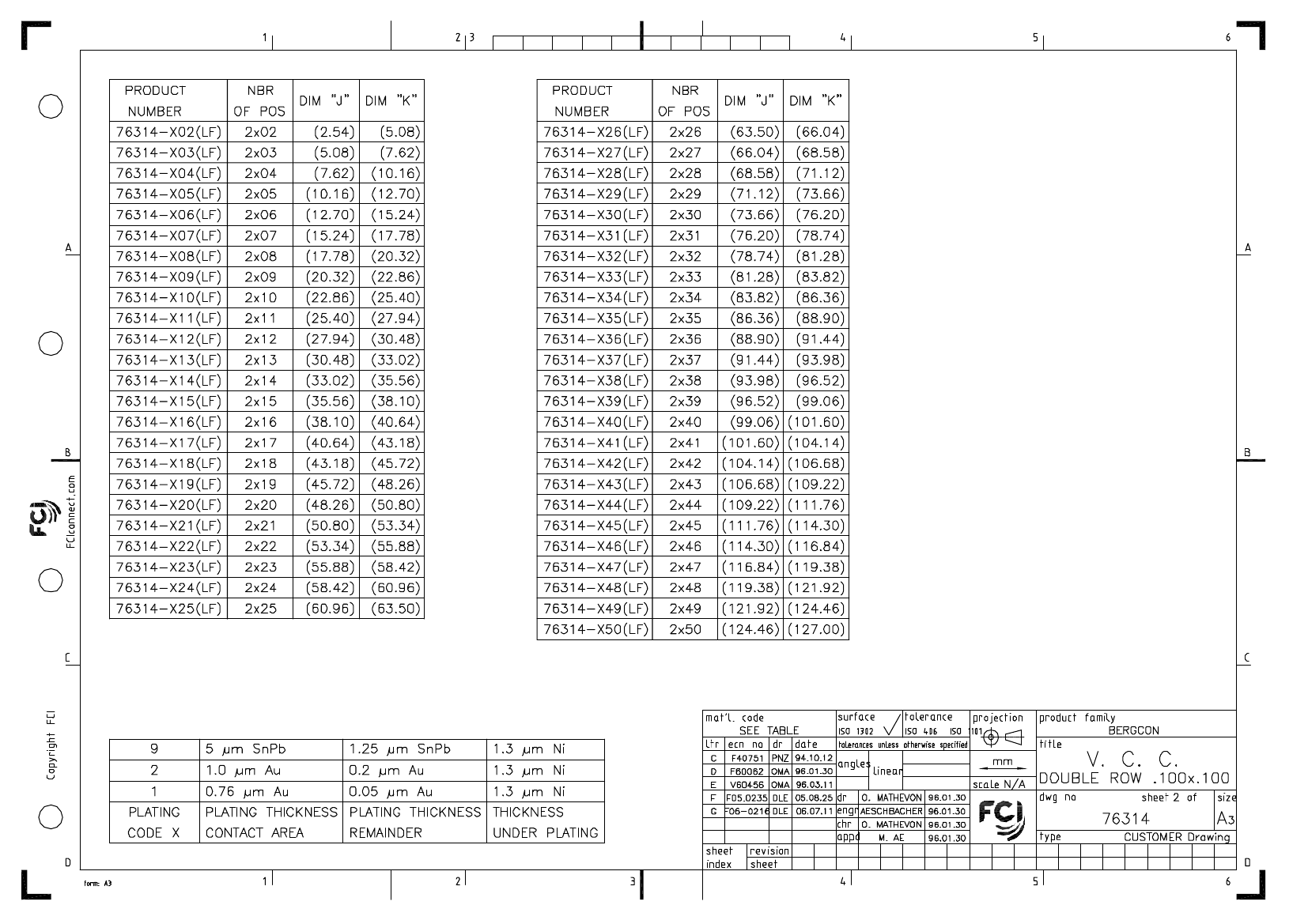

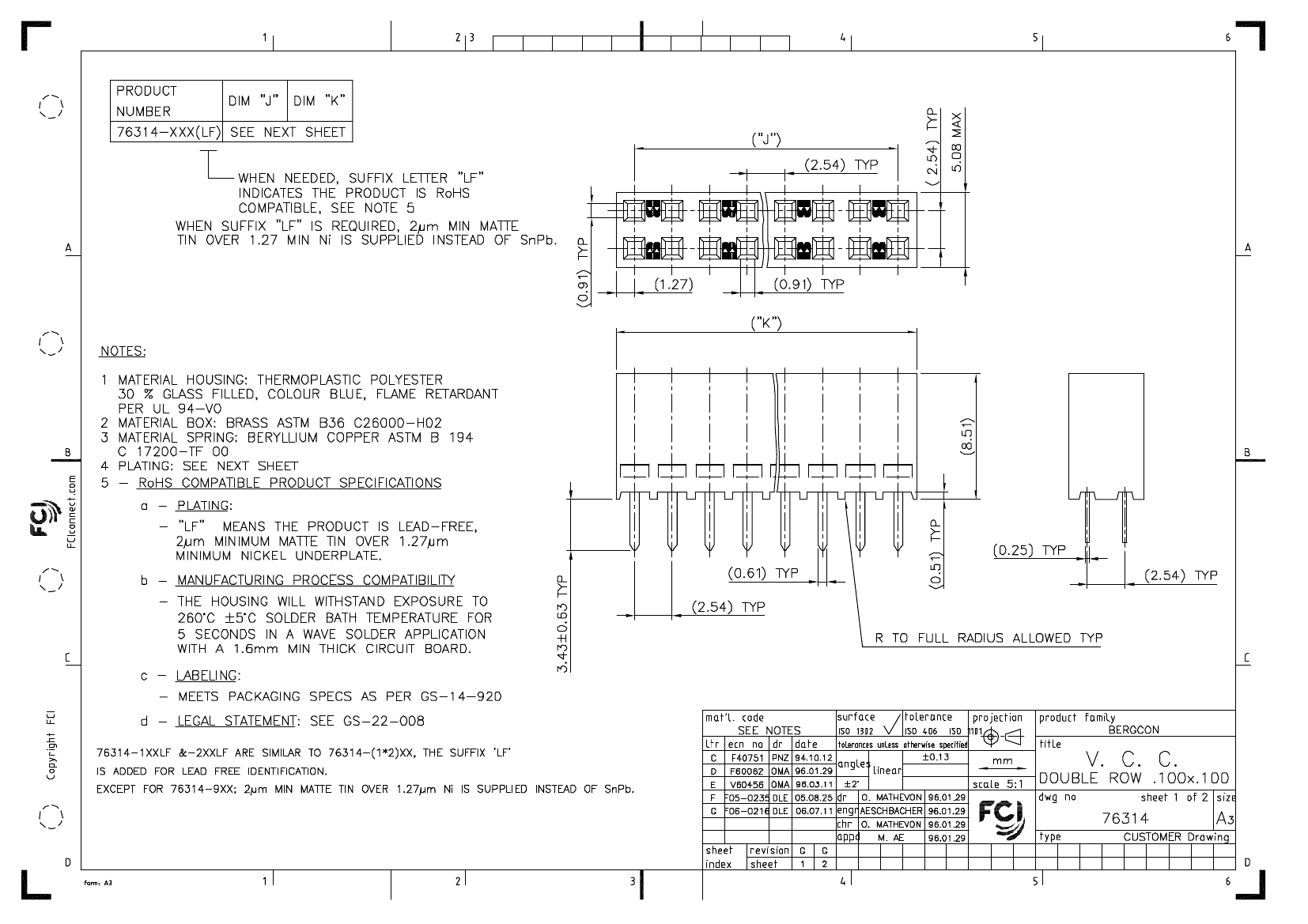

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Jun 06, 2009

76314-145LF Related Products

	76314-145LF	76314-237LF	76314-103	76314-136LF	76314-228LF	76314-236LF	76314-905LF	76314-908LF	76314-913LF	76314-918LF
Description	Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 74 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug,	Board Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, LEAD FREE	Board Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE	Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, LEAD FREE
Is it lead-free?	Lead free	Lead free	Contains lead	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch
body length	4.5 inch	3.7 inch	0.3 inch	3.6 inch	2.8 inch	3.6 inch	0.5 inch	0.8 inch	1.3 inch	1.8 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (51)	GOLD (39) OVER NICKEL (51)	GOLD (30) OVER NICKEL (51)	GOLD (30) OVER NICKEL (51)	GOLD (39) OVER NICKEL (51)	GOLD (39) OVER NICKEL (51)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
JESD-609 code	e4	e4	e4	e4	e4	e4	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	30u inch	39u inch	30u inch	30u inch	39u inch	39u inch	197u inch	197u inch	197u inch	197u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	90	74	6	72	56	72	10	16	26	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	-	-	-	-
Manufacturer's serial number	76314	76314	-	76314	-	76314	76314	76314	76314	76314
Base Number Matches	1	1	1	1	1	1	-	-	-	-
