30SB04SA datasheet, PDF - EEWORLD Datasheet

30SB04SA: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 30A, 40V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size45KB，2 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

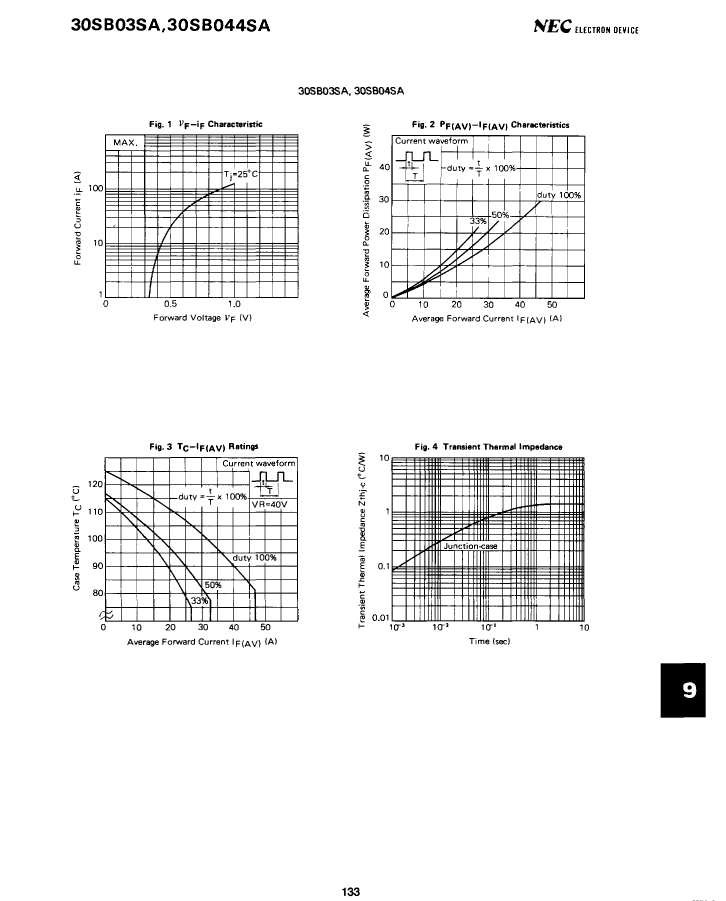

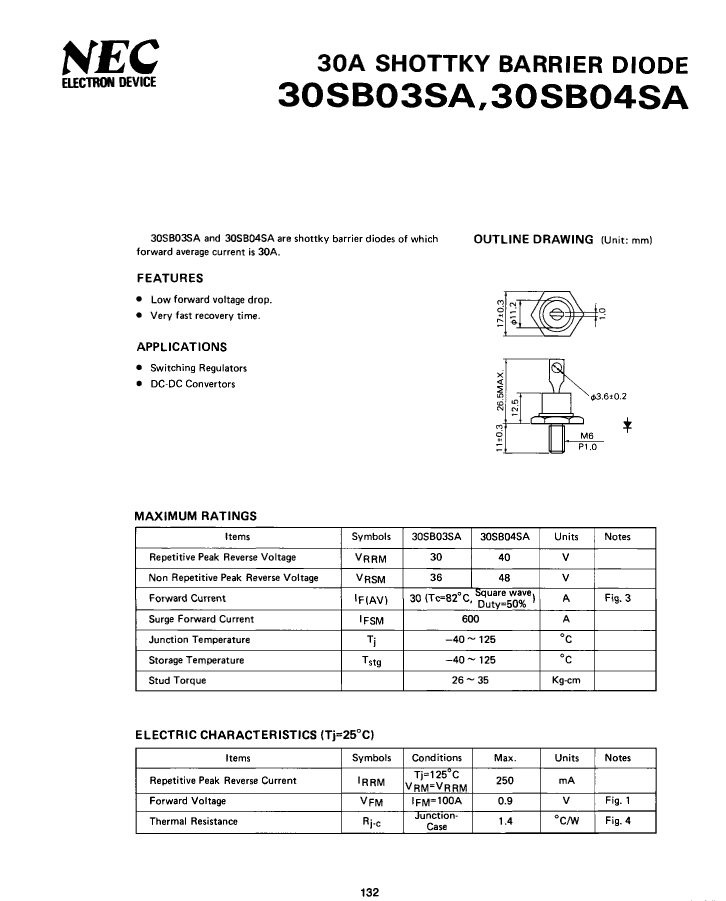

30SB04SA Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 30A, 40V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	NEC Electronics
Reach Compliance Code	unknown
application	FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	600 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	NO
technology	SCHOTTKY
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

	30SB04SA	30SB03SA
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 30A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 30A, 30V V(RRM), Silicon,
Maker	NEC Electronics	NEC Electronics
Reach Compliance Code	unknown	unknown
application	FAST RECOVERY	FAST RECOVERY
Shell connection	CATHODE	CATHODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	600 A	600 A
Number of components	1	1
Phase	1	1
Number of terminals	1	1
Maximum output current	30 A	30 A
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	30 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
Base Number Matches	1	1
