37P133-2

Description
RF SMC Connector, Female, Cable Mount, Clamp Terminal, Plug
CategoryThe connector    The connector
File Size62KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

37P133-2 Overview

RF SMC Connector, Female, Cable Mount, Clamp Terminal, Plug

37P133-2 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerAmphenol
Reach Compliance Codeunknown
Other featuresINSERTION LOSS MAX AT 4GHZ, APPLICABLE CABLES:RG-178/U; RG-196/U
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.25 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberSMC
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCLAMP
Base Number Matches1

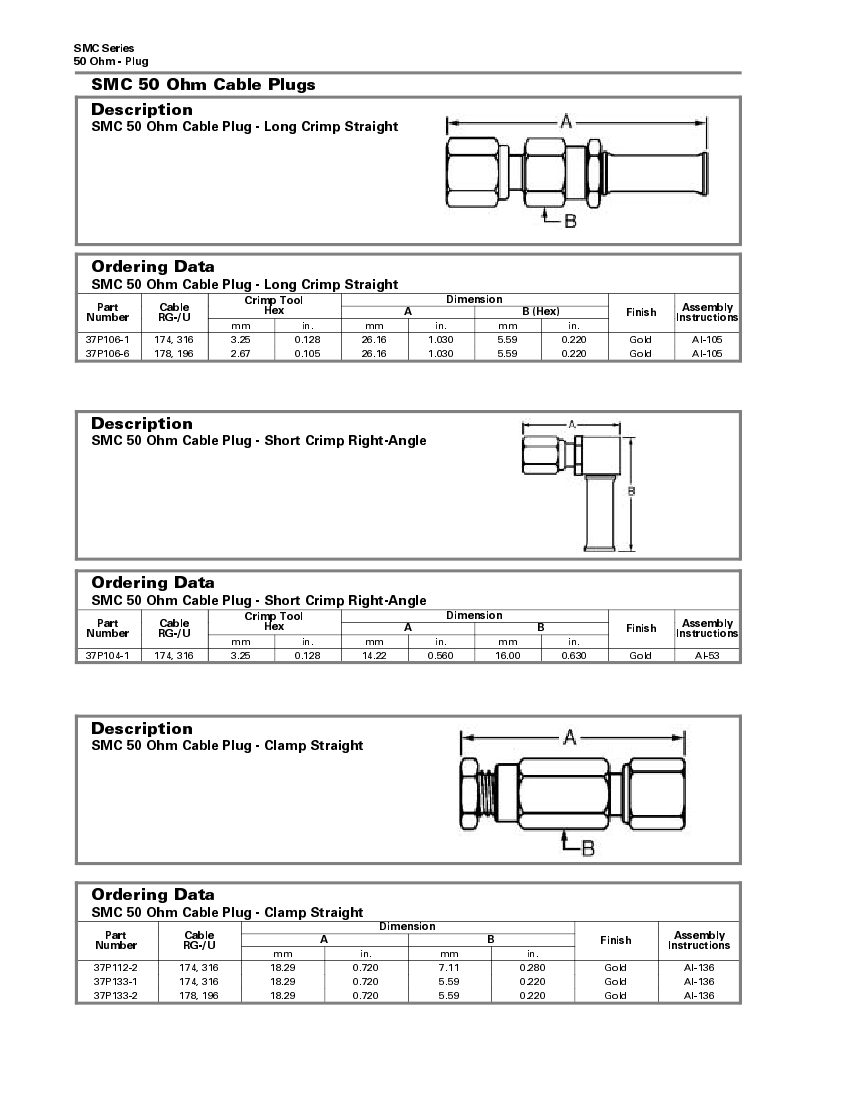

SMC Series
50 Ohm - Plug
SMC 50 Ohm Cable Plugs
Description
SMC 50 Ohm Cable Plug - Long Crimp Straight
SMC Series
50 Ohm - Plug
RF/Coaxial
Ordering Data
37P106-1
37P106-6
Part
Number
SMC 50 Ohm Cable Plug - Long Crimp Straight
174, 316
178, 196
Cable
RG-/U
mm
3.25
2.67
Crimp Tool
Hex
in.
0.128
0.105
mm
26.16
26.16
A
Dimension
in.
1.030
1.030
mm
5.59
5.59
B (Hex)
in.
0.220
0.220
Finish
Gold
Gold
Assembly
Instructions
AI-105
AI-105
Description
SMC 50 Ohm Cable Plug - Short Crimp Right-Angle
Ordering Data
37P104-1
Part
Number
SMC 50 Ohm Cable Plug - Short Crimp Right-Angle
174, 316
Cable
RG-/U
mm
3.25
Crimp Tool
Hex
in.
0.128
mm
14.22
A
Dimension
in.
0.560
mm
16.00
B
in.
0.630
Finish
Gold
Assembly
Instructions
AI-53
Description
SMC 50 Ohm Cable Plug - Clamp Straight
Ordering Data
37P112-2
37P133-1
37P133-2
Part
Number
SMC 50 Ohm Cable Plug - Clamp Straight
174, 316
174, 316
178, 196
Cable
RG-/U
mm
18.29
18.29
18.29
A
Dimension
in.
0.720
0.720
0.720
mm
7.11
5.59
5.59
B
in.
0.280
0.220
0.220
Finish
Gold
Gold
Gold
Assembly
Instructions
AI-136
AI-136
AI-136
30-120
RF/Coaxial

37P133-2 Related Products

37P133-2 37P104-1 37P133-1 37P106-6
Description RF SMC Connector, Female, Cable Mount, Clamp Terminal, Plug RF SMC Connector, Female, Cable Mount, Crimp Terminal, Plug RF SMC Connector, Female, Cable Mount, Clamp Terminal, Plug RF SMC Connector, Female, Cable Mount, Crimp Terminal, Plug
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Maker Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code unknown unknown unknown unknown
Other features INSERTION LOSS MAX AT 4GHZ, APPLICABLE CABLES:RG-178/U; RG-196/U STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-174/U; RG-188/U, INSERTION LOSS AT 4GHZ INSERTION LOSS MAX AT 4GHZ, APPLICABLE CABLES:RG-174/U; RG-316/U INSERTION LOSS MAX AT 4GHZ, APPLICABLE CABLES:RG-178/U; RG-196/U
Body/casing type PLUG PLUG PLUG PLUG
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF SMC CONNECTOR RF SMC CONNECTOR RF SMC CONNECTOR RF SMC CONNECTOR
Contact point gender FEMALE FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED BERYLLIUM COPPER NOT SPECIFIED NOT SPECIFIED
Coupling type THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
Insertion loss 0.25 dB 0.25 dB 0.25 dB 0.25 dB
insulator material POLYTETRAFLUORO ETHYLENE TFE FLUROCARBON POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
MIL compliance NO YES NO NO
Manufacturer's serial number SMC SMC SMC SMC
Installation method STRAIGHT RIGHT ANGLE STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE CABLE
Maximum operating frequency 10 GHz 10 GHz 10 GHz 10 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO NO NO
Termination type CLAMP CRIMP CLAMP CRIMP
Base Number Matches 1 1 1 1
Contact to complete cooperation GOLD - GOLD GOLD
Contact completed and terminated GOLD - GOLD GOLD
JESD-609 code e4 - e4 e4
