31-5787-T

Description
RF BNC Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Jack
CategoryThe connector    The connector
File Size426KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

31-5787-T Online Shopping

Suppliers Part Number Price MOQ In stock
31-5787-T - - View Buy Now

31-5787-T Overview

RF BNC Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Jack

31-5787-T Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLES: RG-174/U; RG-188/U; RG-316/U, INSERTION LOSS MAX AT 9 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.18 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP
voltage standing wave ratio1.3
Base Number Matches1
Reverse Polarity
RP-BNC Connectors

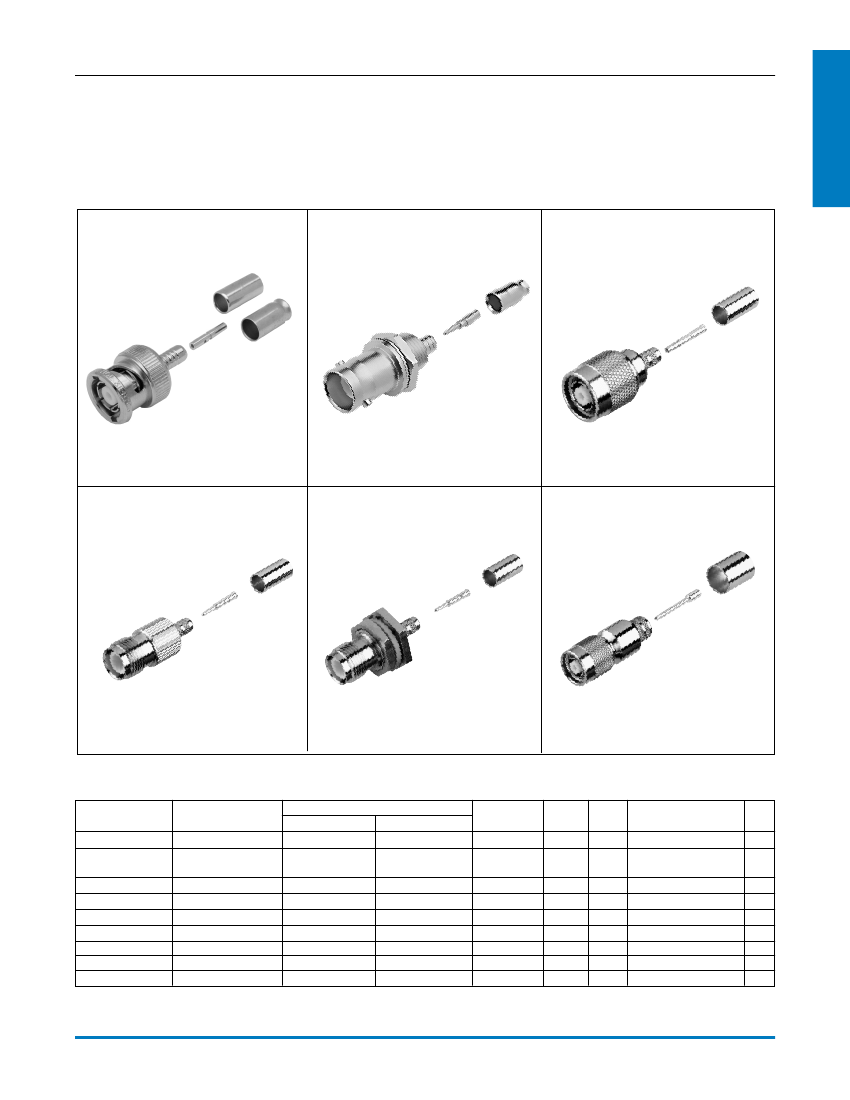

A m p h e n o l ’s R P - B N C c o n n e c t o r s p ro v i d e t h e q u i c k
connect/disconnect bayonet lock coupling of the BNC
series. The RP-BNC plug is supplied with two crimp
Amphenol
®
ferrules — one for use on PVC cables and another for
use on smaller diameter plenum cables.
Reverse Polarity
Fig. 1
Fig. 2
Fig. 3
RP-BNC Plug
31-6034
31-6036
31-5705
Fig. 4
Fig. 5
RP-BNC Bulkhead Jack
31-5787-T
31-6035
Fig. 6
RP-TNC Plug
31-6030
RP-TNC Jack
31-6031
RP-TNC Bulkhead Jack
31-6032
RP-TNC Plug
31-6033
RP-BNC/TNC PLUG
Cable
RG-/U
58, 141
174, 188, 316
58, 141
58, 141
58, 141
8214, 9913
8214, 9913
58, 141
58, 141
Conn.
Type
RP-BNC Plug
RP-BNC Bulkhead
Jack Front Mount
RP-TNC Plug
RP-TNC Jack
RP-TNC Bulk Jack
RP-TNC Plug
RP-BNC Plug
RP-BNC Jack
RP-BNC Plug
Cable Attachment
Outer
Inner
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
CAI
C38
C38
C38
C38
C38
C38
C38
C38
C38
Plt.
P15
P15
P15
P15
P15
P15
P15
P15
P15
Ins.
D1
D1
D1
D1
D1
D1
D1
D1
D1
Amphenol
Number
31-5705
31-5787-T
31-6030
31-6031
31-6032
31-6033
31-6034
31-6035
31-6036
Fig.
1
2
3
4
5
6
1
2
1
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
