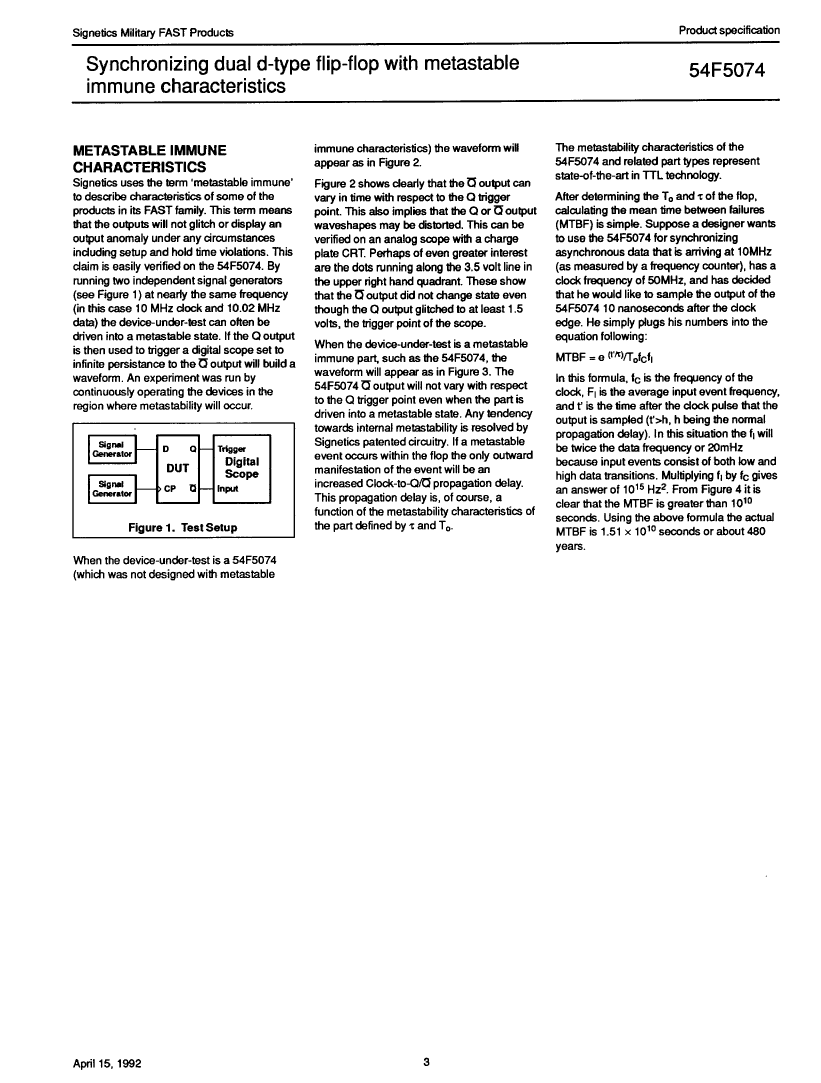

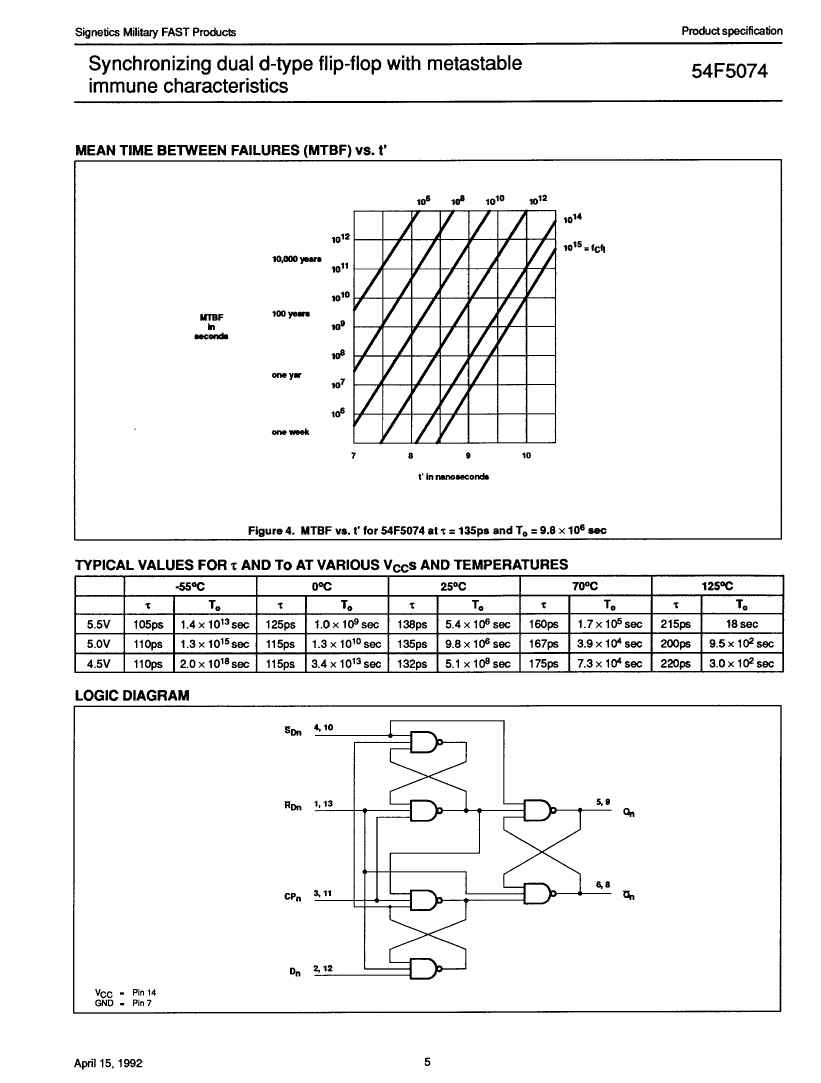

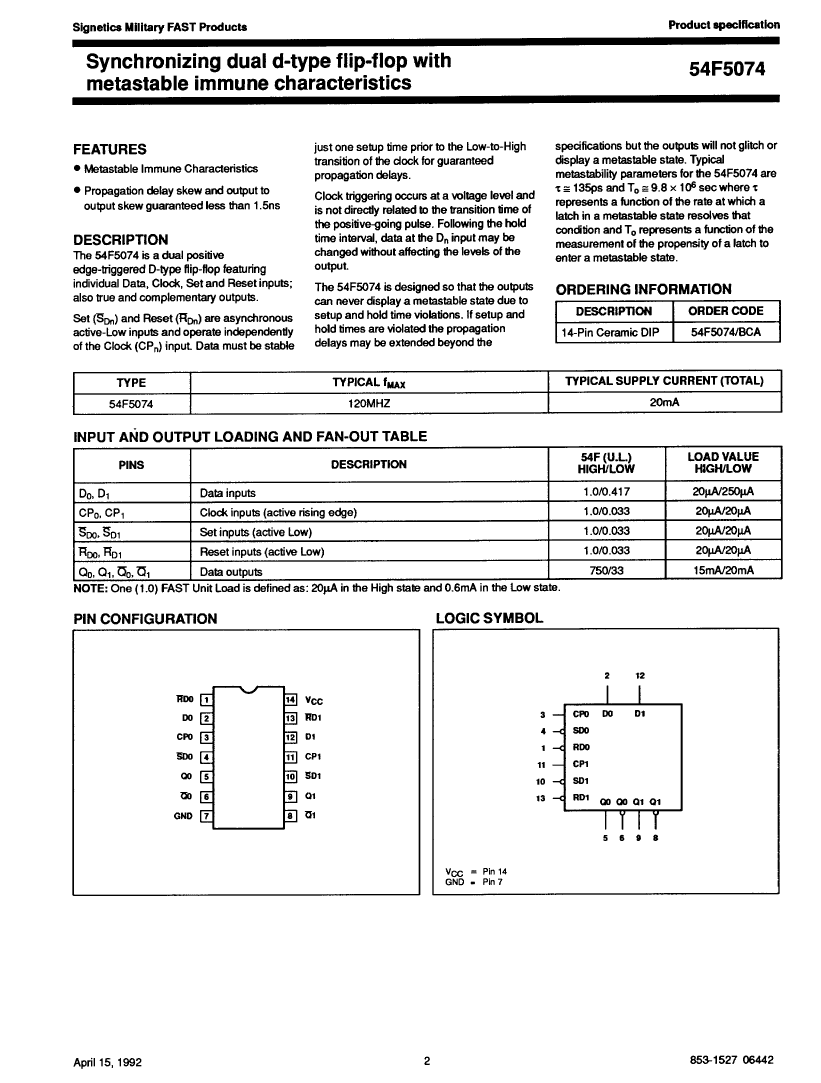

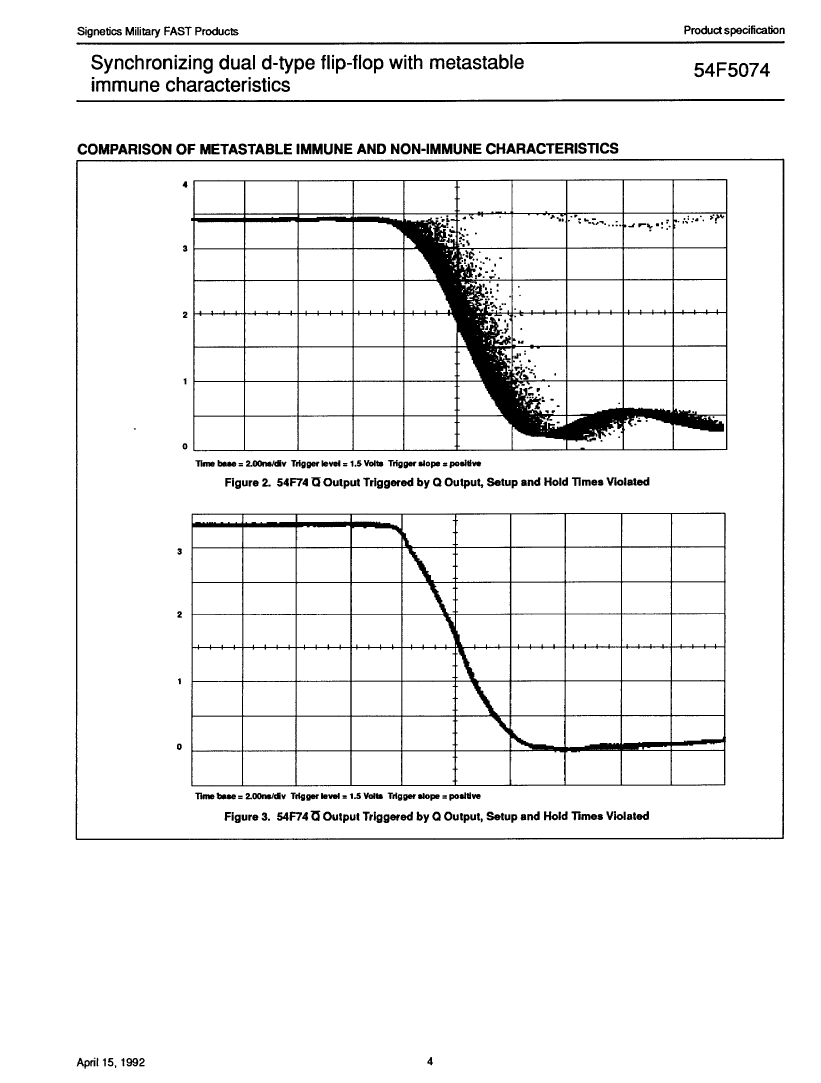

J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP14
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | DIP, DIP14,.3 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-XDIP-T14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | J-K FLIP-FLOP |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| Base Number Matches | 1 |
| 54F5074/BCA | N74F5074D-T | 54F5074/BDA | N74F5074N-B | |
|---|---|---|---|---|
| Description | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP14 | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDSO14, | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16 | J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP14 |
| Is it Rohs certified? | incompatible | conform to | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | DIP, DIP14,.3 | SOP, SOP14,.25 | DFP, FL16,.3 | DIP, DIP14,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| JESD-30 code | R-XDIP-T14 | R-PDSO-G14 | R-XDFP-F16 | R-PDIP-T14 |
| JESD-609 code | e0 | e4 | e0 | e0 |
| Logic integrated circuit type | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP |
| Number of functions | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 16 | 14 |
| Maximum operating temperature | 125 °C | 70 °C | 125 °C | 70 °C |
| Package body material | CERAMIC | PLASTIC/EPOXY | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | DFP | DIP |
| Encapsulate equivalent code | DIP14,.3 | SOP14,.25 | FL16,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | FLATPACK | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Nickel/Palladium/Gold (Ni/Pd/Au) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING | FLAT | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - |
| Base Number Matches | 1 | 1 | 1 | - |
