Marketing Bulletin
DATE:
TO:
FROM:
RE:
August 25, 2005
All Sales Personnel
Mark Stoner
Product Termination
To all concerned parties,
This bulletin is to notify all customers of the discontinuation of the following Ecliptek
series effective August 25
th
, 2005:
Series
E11J1
E13J1
Description
5V 4 pad SMD LVPECL Oscillator
3.3V 4 pad SMD LVPECL Oscillator
Recommended Replacement
E13C7
E13C7
In compliance with our End of Life (EOL) policy, this will serve as advanced notice of
product termination. New orders will not be accepted after November 25
th
, 2005, with
delivery to conclude by February 25
th
2006.
If there are any questions pertaining to this bulletin, please fell free to contact me.
Thank you again for your cooperation.
Best Regards,
Mark W. Stoner
Director of Marketing
Ecliptek Corporation
3545 CADILLAC AVENUE
•
COSTA MESA, CA 92626-1401
•
(714) 433-1200
•
Fax (714) 433-1234
E11J1
Series
• PECL Output Oscillators
• 5.0V supply voltage
• 4 pad PCB SMD package with J-leads
• Stability to 20ppm
• Output Enable/Disable available
• Complementary Output available
• Available on Tape and Reel
NOTES
E11J1
H 5.9
L 14.8
W 10.2
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Available at Frequencies < 212.500MHz
Storage Temperature Range
Supply Voltage (V
CC
)
Input Current
Logic Type
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, Aging, Shock,
and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Logic Control / Additional Output
Enable/Disable Input Voltage
V
IL
of V
CC
-1.475V
DC
Maximum
No Connection
V
IH
of V
CC
-1.165V
DC
Minimum
Start Up Time
RMS Phase Jitter
MANUFACTURER
CATEGORY
19.440MHz to 250.000MHz
0°C to 70°C
-40°C to 85°C
-55°C to 125°C
5.0V
DC
±5%
100mA Maximum
100KH
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
V
CC
-1.025V
DC
Minimum
V
CC
-1.620V
DC
Maximum
20% to 80% of waveform
at 50% of waveform
2 nSeconds Maximum
50 ±10(%)
50 ±5(%)
50 Ohms into V
CC
-2.0V
DC
No Connect, Enable/Disable, or
Complementary Output
Enables Output
Enables Output
Disables Output: Logic Low
10 mSeconds Maximum
FJ = 12kHz to 20MHz
SERIES
PACKAGE
VOLTAGE
1 pSec Maximum
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E11J1
4-PCB-J
5.0V
OS71
01/03
800-ECLIPTEK www.ecliptek.com for latest revision
160
Specifications subject to change without notice.
PART NUMBERING GUIDE
E11J1 F 2 C - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
C=±100ppm Maximum over 0°C to +70°C
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
F=±20ppm Maximum over 0°C to +70°C
G=±100ppm Maximum over -40°C to +85°C
H=±50ppm Maximum over -40°C to +85°C
DUTY CYCLE
1=50% ±10%, 2=50% ±5%

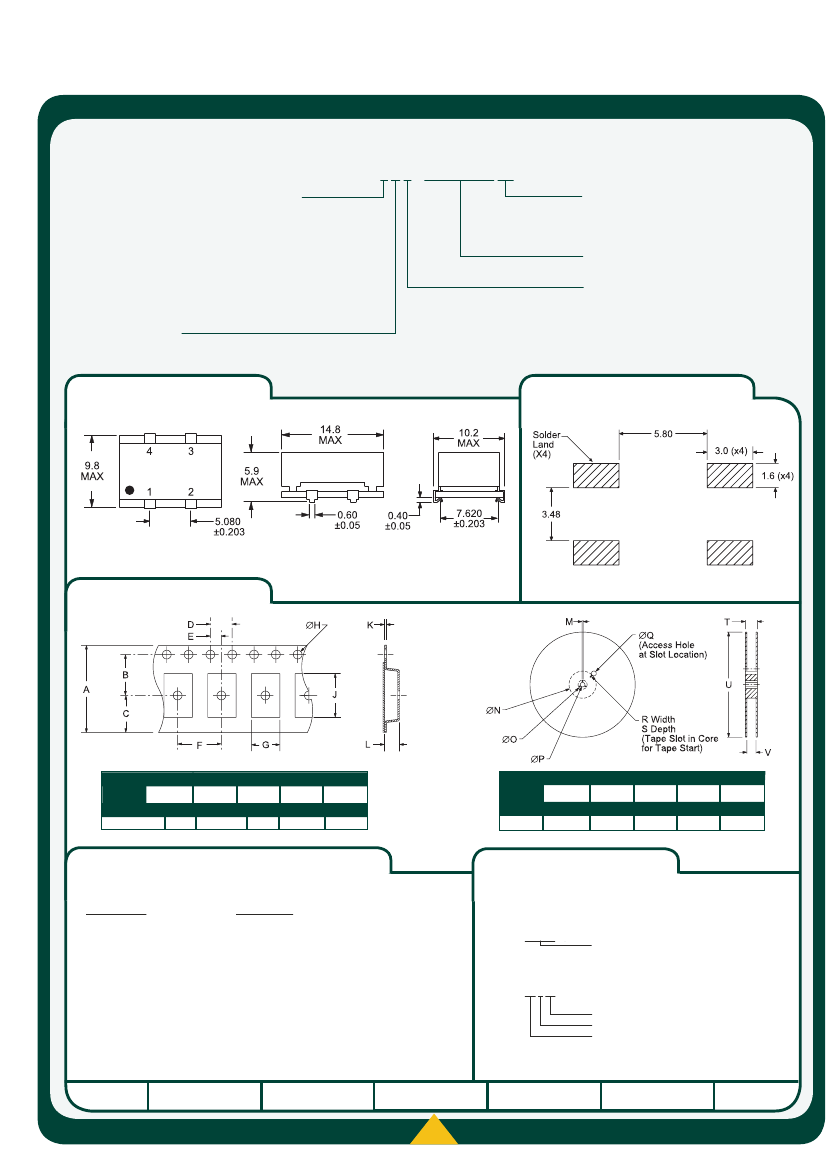

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
AVAILABLE OPTIONS
Blank=Tubes
TR=Tape and Reel (Standard)
FREQUENCY
LOGIC CONTROL/ADDITIONAL OUTPUT
A=No Connect
B=Enable/Disable
C=Complementary Output
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TOP VIEW
SIDE VIEW
FRONT VIEW
Pin 1: Complementary Output, No Connect, or Enable/Disable
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerances = ±0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
24 ±.3
B
11.5 ±.1
C
10.75 ±.1
D
4 ±.2
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1000
F
12 ±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.4 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
30.4 MAX
U
360 MAX
V
24.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 1: ECLIPTEK
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E11J1
4-PCB-J
5.0V
OS71
01/03
800-ECLIPTEK www.ecliptek.com for latest revision
161
Specifications subject to change without notice.
E13J1
Series
• PECL Output Oscillators
• 3.3V supply voltage
• 4 pad PCB SMD package with J-leads
• Stability to 20ppm
• Output Enable/Disable available
• Complementary Output available
• Available on Tape and Reel
NOTES
E13J1
H 5.9
L 14.8
W 10.2
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Available at Frequencies < 212.500MHz
Storage Temperature Range
Supply Voltage (V
CC
)
Input Current
Logic Type
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, Aging, Shock,
and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Logic Control / Additional Output
Enable/Disable Input Voltage
V
IL
of V
CC
-1.475V
DC
Maximum
No Connection
V
IH
of V
CC
-1.165V
DC
Minimum
Start Up Time
RMS Phase Jitter
MANUFACTURER
CATEGORY
19.440MHz to 250.000MHz
0°C to 70°C
-40°C to 85°C
-55°C to 125°C
3.3V
DC
±5%
75mA Maximum
100KH
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
V
CC
-1.025V
DC
Minimum
V
CC
-1.620V
DC
Maximum
20% to 80% of waveform
at 50% of waveform
2 nSeconds Maximum
50 ±10(%)
50 ±5(%)
50 Ohms into V
CC
-2.0V
DC
No Connect, Enable/Disable, or
Complementary Output
Enables Output
Enables Output
Disable Output: Logic Low
10 mSeconds Maximum
FJ = 12kHz to 20MHz
SERIES
PACKAGE
VOLTAGE
1 pSec Maximum
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E13J1
4-PCB-J
3.3V
OS69
01/03
800-ECLIPTEK www.ecliptek.com for latest revision
164
Specifications subject to change without notice.
PART NUMBERING GUIDE
E13J1 F 2 C - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
C=±100ppm Maximum over 0°C to +70°C
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
F=±20ppm Maximum over 0°C to +70°C
G=±100ppm Maximum over -40°C to +85°C
H=±50ppm Maximum over -40°C to +85°C
DUTY CYCLE
1=50% ±10%, 2=50% ±5%
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
AVAILABLE OPTIONS
Blank=Tubes
TR=Tape and Reel (Standard)
FREQUENCY
LOGIC CONTROL/ADDITIONAL OUTPUT
A=No Connect
B=Enable/Disable
C=Complementary Output
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TOP VIEW
SIDE VIEW
FRONT VIEW
Pin 1: Complementary Output, No Connect, or Enable/Disable
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerances = ±0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
24 ±.3
B
11.5 ±.1
C
10.75 ±.1
D
4 ±.2
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1000
F
12 ±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.4 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
30.4 MAX
U
360 MAX
V
24.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 1: ECLIPTEK
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E13J1
4-PCB-J
3.3V
OS69
01/03
800-ECLIPTEK www.ecliptek.com for latest revision
165
Specifications subject to change without notice.
