3-172072-2 datasheet, PDF - EEWORLD Datasheet

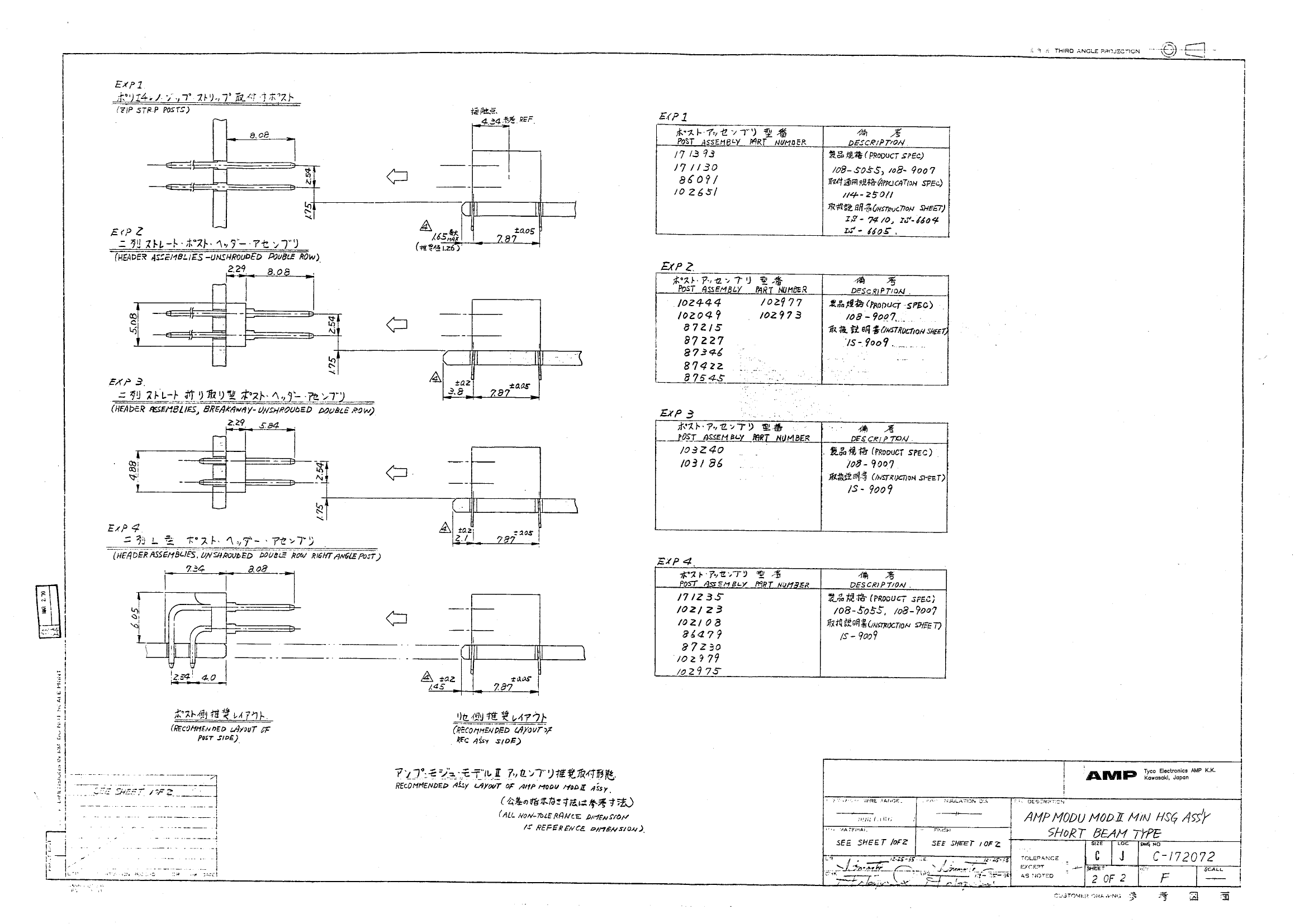

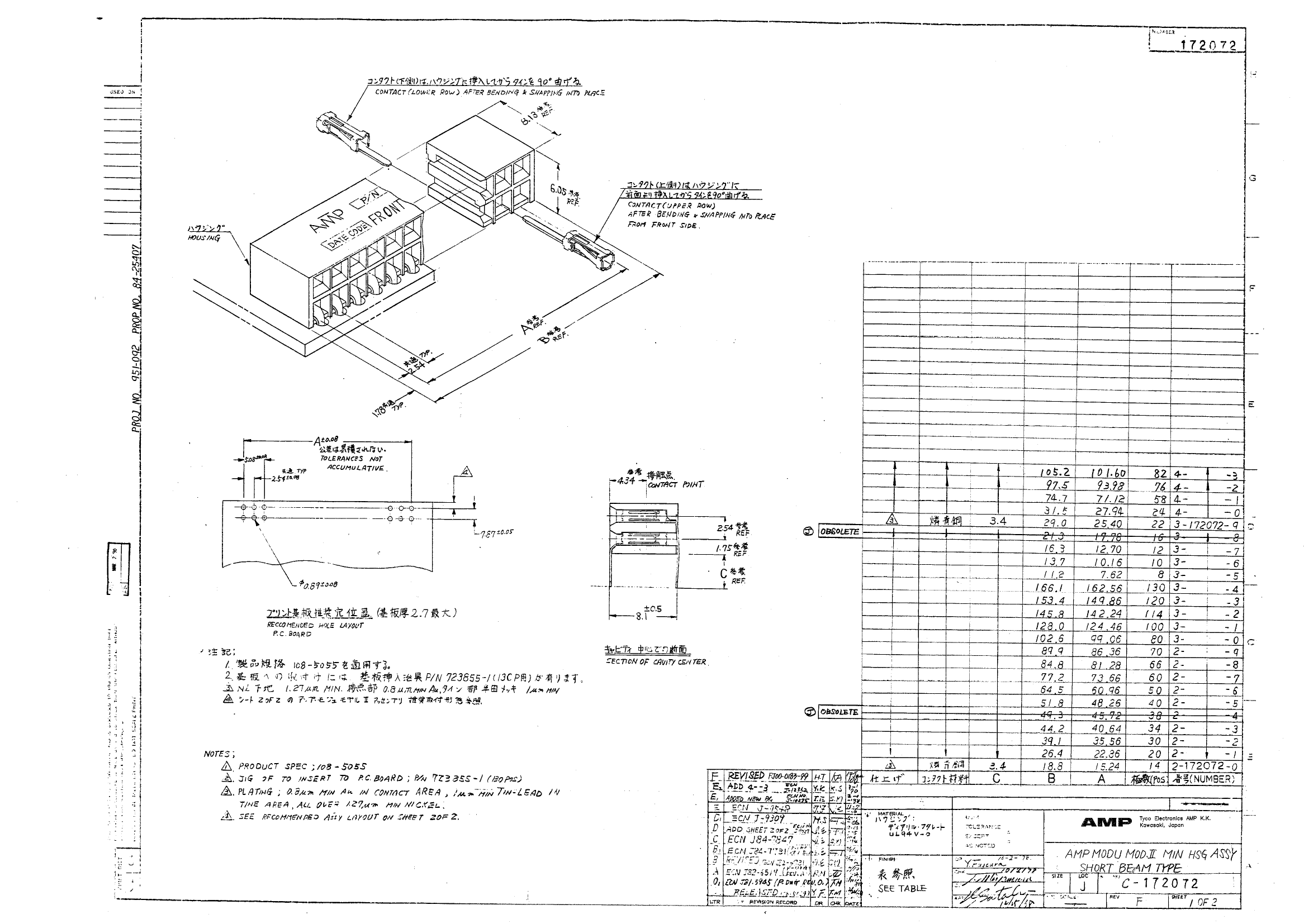

3-172072-2: DescriptionBoard Connector, 114 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Plug; CategoryThe connector The connector; File Size177KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

3-172072-2 Overview

Board Connector, 114 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Plug

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITHOUT STANDOFF, CLOSED ENTRY
body width	0.238 inch
subject depth	0.32 inch
body length	5.74 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
maximum insertion force	1.668 N
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	172072
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	31u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	114
Evacuation force-minimum value	.278 N
Base Number Matches	1
