3SK87L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 3SK87L

3SK87L: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor The transistor; File Size92KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

3SK87L Overview

RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4

3SK87L Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	PLASTIC PACKAGE-4
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum drain current (ID)	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-PRDB-F4
Number of components	1
Number of terminals	4
Operating mode	DUAL GATE, DEPLETION MODE
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	DISK BUTTON
Polarity/channel type	N-CHANNEL
Minimum power gain (Gp)	15 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	RADIAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

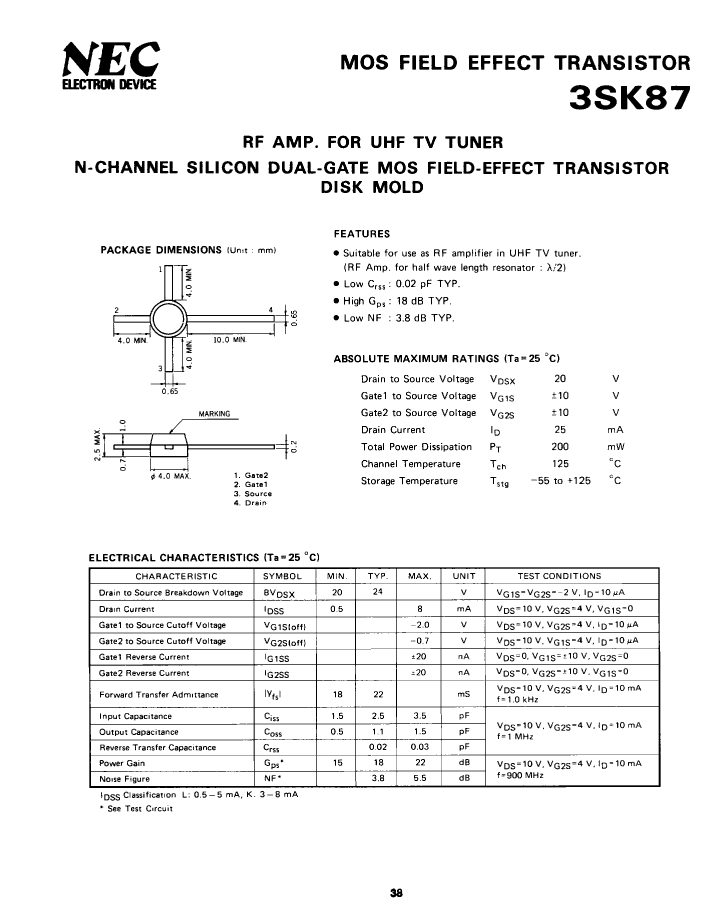

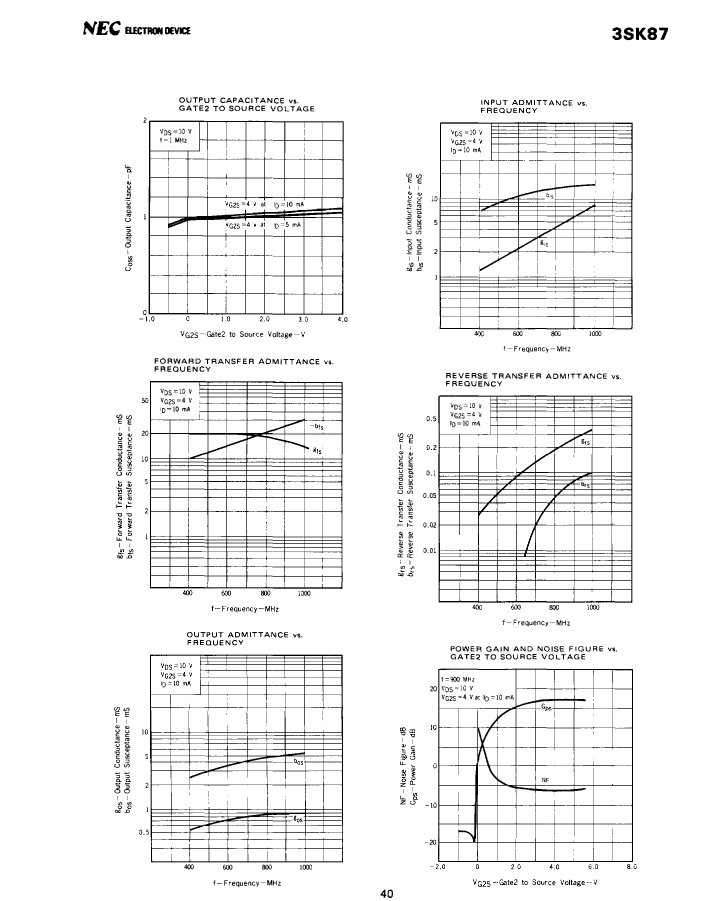

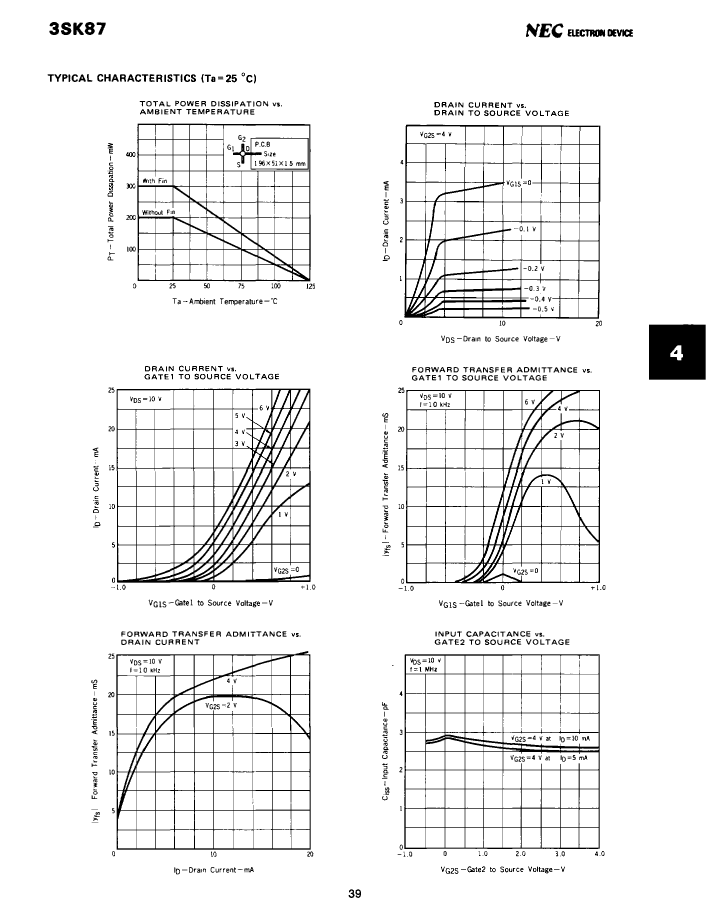

Preview

Download Datasheet

View All

3SK87L Related Products

	3SK87L	3SK87K	3SK87
Description	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4	RF Small Signal Field-Effect Transistor, 1-Element, Ultra High Frequency Band, Silicon, N-Channel, Metal-oxide Semiconductor FET, PLASTIC PACKAGE-4
Maker	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	PLASTIC PACKAGE-4	PLASTIC PACKAGE-4	PLASTIC PACKAGE-4
Reach Compliance Code	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE
Maximum drain current (ID)	0.025 A	0.025 A	0.025 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	0.03 pF	0.03 pF	0.03 pF
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-PRDB-F4	O-PRDB-F4	O-PRDB-F4
Number of components	1	1	1
Number of terminals	4	4	4
Operating mode	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE	DUAL GATE, DEPLETION MODE
Maximum operating temperature	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Minimum power gain (Gp)	15 dB	15 dB	15 dB
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT
Terminal location	RADIAL	RADIAL	RADIAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON
Base Number Matches	1	1	1
