30JR120-1

Description
RF Triaxial-BNC Connector, Receptacle,
CategoryThe connector    The connector
File Size65KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

30JR120-1 Overview

RF Triaxial-BNC Connector, Receptacle,

30JR120-1 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeRF TRIAXIAL-BNC CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberBNC-TRIAX
OptionsGENERAL PURPOSE
Base Number Matches1

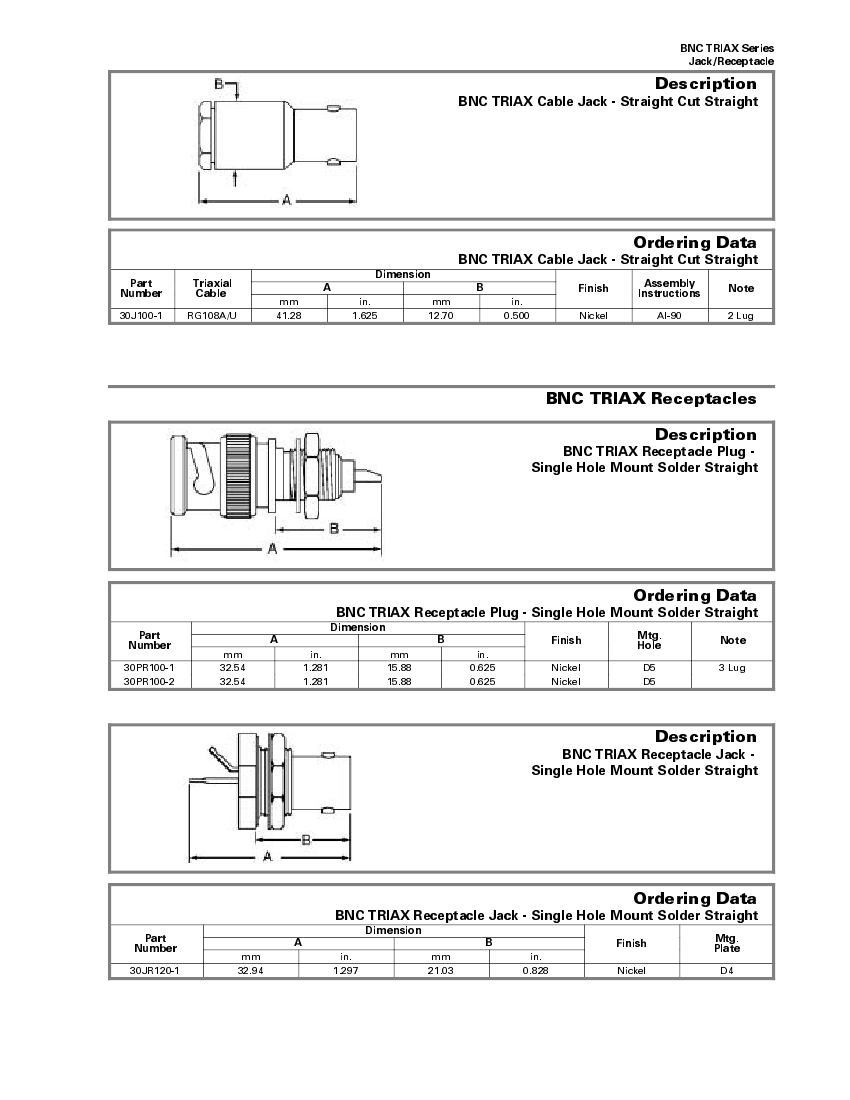

BNC TRIAX Cable Jack - Straight Cut Straight
Jack/Receptacle
RF/Coaxial
Description
BNC TRIAX Series
BNC TRIAX Series
Jack/Receptacle
Part
Number
30J100-1
RG108A/U
Triaxial
Cable
mm
41.28
A
Dimension
BNC TRIAX Cable Jack - Straight Cut Straight
B
Ordering Data
Assembly
Instructions
Note
in.
1.625
mm
12.70
in.
0.500
Finish
Nickel
AI-90
2 Lug
BNC TRIAX Receptacle Plug -
Single Hole Mount Solder Straight
BNC TRIAX Receptacles
Description
30PR100-1
30PR100-2
Part
Number
mm
32.54
32.54
A
Dimension
BNC TRIAX Receptacle Plug - Single Hole Mount Solder Straight
Ordering Data
Mtg.
Hole
Note
in.
1.281
1.281
mm
15.88
15.88
B
in.
0.625
0.625
Finish
Nickel
Nickel
D5
D5
3 Lug
BNC TRIAX Receptacle Jack -
Single Hole Mount Solder Straight
Description
BNC TRIAX Receptacle Jack - Single Hole Mount Solder Straight
Ordering Data
Mtg.
Plate
30JR120-1
Part
Number
mm
32.94
A
Dimension
in.
1.297
mm
21.03
B
in.
0.828
Finish
Nickel
D4
RF/Coaxial
30-41

30JR120-1 Related Products

30JR120-1 30PR100-2 30PR100-1 30J100-1
Description RF Triaxial-BNC Connector, Receptacle, RF Triaxial-BNC Connector, Receptacle, RF Triaxial-BNC Connector, Receptacle, RF Triaxial-BNC Connector, Jack,
Reach Compliance Code unknown unknown unknown unknown
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE JACK
Connector type RF TRIAXIAL-BNC CONNECTOR RF TRIAXIAL-BNC CONNECTOR RF TRIAXIAL-BNC CONNECTOR RF TRIAXIAL-BNC CONNECTOR
DIN compliance NO NO NO NO
IEC compliance NO NO NO NO
MIL compliance NO NO NO NO
Manufacturer's serial number BNC-TRIAX BNC-TRIAX BNC-TRIAX BNC-TRIAX
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Base Number Matches 1 1 1 1
