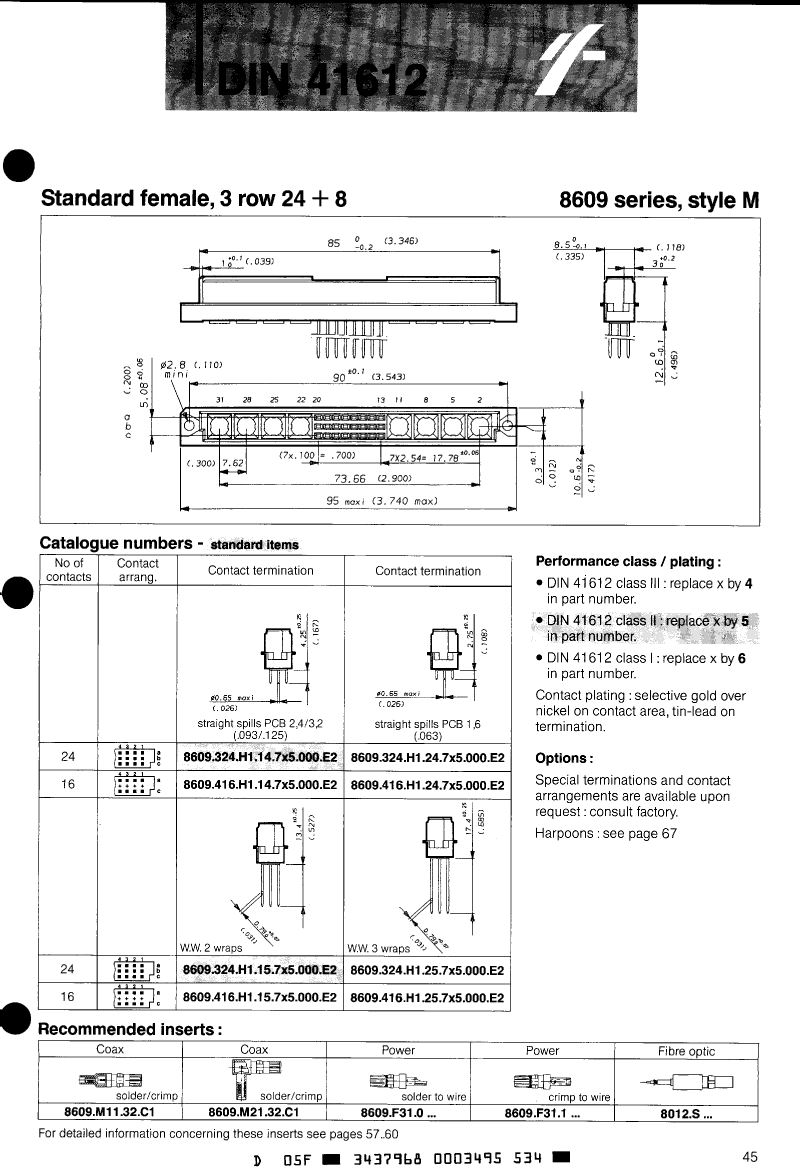

8609.324.H1.24.745.000.E2

Description
Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size673KB，6 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

8609.324.H1.24.745.000.E2 Overview

Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

8609.324.H1.24.745.000.E2 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: DIN 41612
body width0.417 inch
subject depth0.496 inch
body length3.74 inch
Body/casing typePLUG
Connector typeBOARD EURO CONNECTOR
Contact arrangementS24C8
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.9452 N
Insulation resistance1000000000000 Ω
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number8609
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsYES
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)1.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.108 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0
Evacuation force-minimum value.139 N
Base Number Matches1

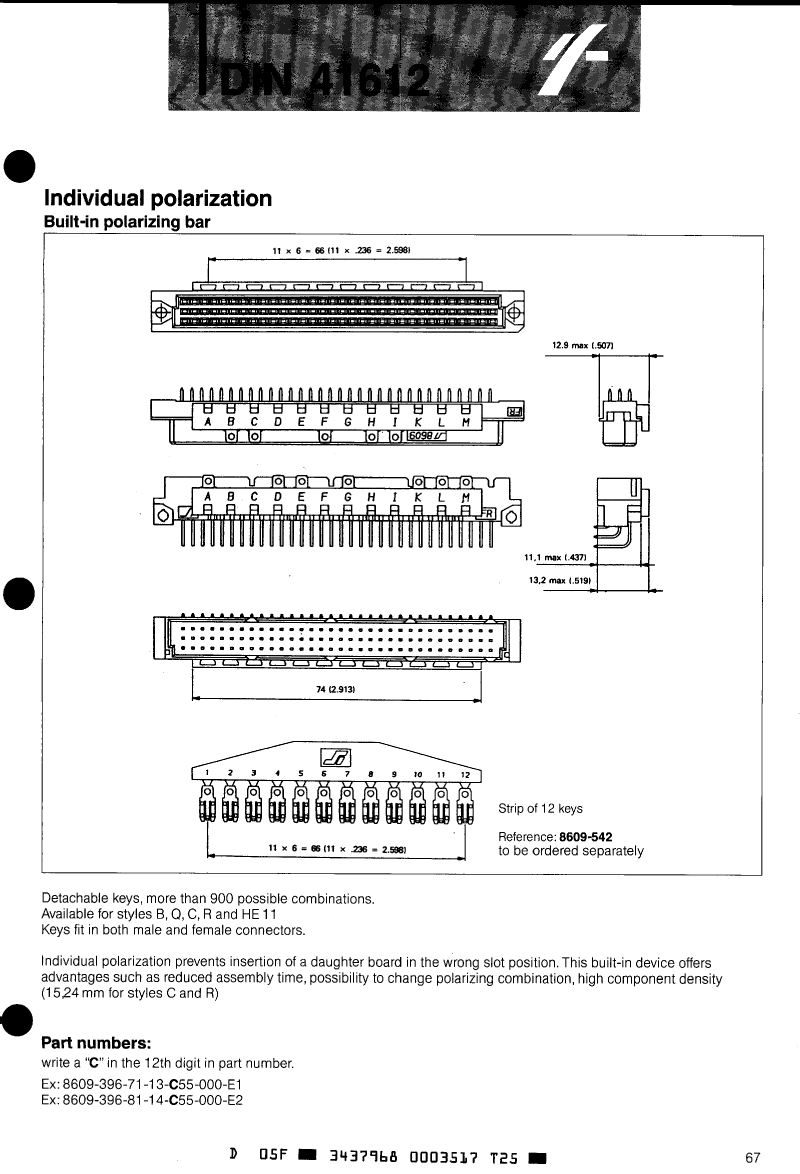

Preview

Download Datasheet

8609.324.H1.24.745.000.E2 Related Products

8609.324.H1.24.745.000.E2 8609.324.H1.24.755.000.E2 8609.324.H1.25.755.000.E2 8609.324.H1.25.745.000.E2 8609.324.H1.14.755.000.E2 8609.324.H1.14.765.000.E2 8609.324.H1.15.755.000.E2
Description Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug
Maker Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant
body width 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch 0.417 inch
subject depth 0.496 inch 0.496 inch 0.496 inch 0.496 inch 0.496 inch 0.496 inch 0.496 inch
body length 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch 3.74 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact arrangement S24C8 S24C8 S24C8 S24C8 S24C8 S24C8 S24C8
Contact to complete cooperation GOLD OVER NICKEL GOLD OVER NICKEL AU ON NI AU ON NI GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact completed and terminated TIN LEAD TIN LEAD GOLD GOLD TIN LEAD TIN LEAD TIN LEAD
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance YES YES YES YES YES YES YES
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V
Durability 50 Cycles 200 Cycles 200 Cycles 50 Cycles 200 Cycles 250 Cycles 200 Cycles
maximum insertion force .9452 N .9452 N .9452 N .9452 N .9452 N .9452 N .9452 N
Insulation resistance 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω
Manufacturer's serial number 8609 8609 8609 8609 8609 8609 8609
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Mixed contacts YES YES YES YES YES YES YES
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD PANEL BOARD BOARD BOARD
Loaded row name A,B,C A,B,C A,B,C A,B,C A,B,C A,B,C A,B,C
PCB row number 3 3 3 3 3 3 3
Number of rows loaded 3 3 3 3 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
polarization key ENDS ENDS ENDS ENDS ENDS ENDS ENDS
Rated current (signal) 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.108 inch 0.108 inch 0.685 inch 0.685 inch 0.167 inch 0.167 inch 0.527 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER WIRE WRAP WIRE WRAP SOLDER SOLDER WIRE WRAP
Total number of contacts 32 32 32 32 32 32 32
Evacuation force-minimum value .139 N .139 N .139 N .139 N .139 N .139 N .139 N
ECCN code EAR99 EAR99 - EAR99 EAR99 EAR99 EAR99
Other features STANDARD: DIN 41612 STANDARD: DIN 41612 - STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612 STANDARD: DIN 41612
Filter function NO NO - NO NO NO NO
IEC compliance NO NO - NO NO NO NO
JESD-609 code e0 e0 - - e0 e0 e0
MIL compliance NO NO - NO NO NO NO
Options GENERAL PURPOSE - - GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE
UL Flammability Code 94V-0 - - 94V-0 94V-0 - 94V-0
Base Number Matches 1 1 1 1 1 - -
