301M78Y03A00

Description
Board Connector, 78 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size907KB,1 Pages
ManufacturerWeald Electronics Ltd.
Download Datasheet Parametric View All

301M78Y03A00 Overview

Board Connector, 78 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,

301M78Y03A00 Parametric

Parameter NameAttribute value
MakerWeald Electronics Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts78
Base Number Matches1
1
2
3
4
5
6
7
8
59,0
A
PIN NO. 1 (OF 78)
2,0
A
B
2,0 2,0
8,1
B
65,1 MAX
C
6,3 MAX
C
D
5,7 MIN
D
Ø0,51 MAX
50,0
E

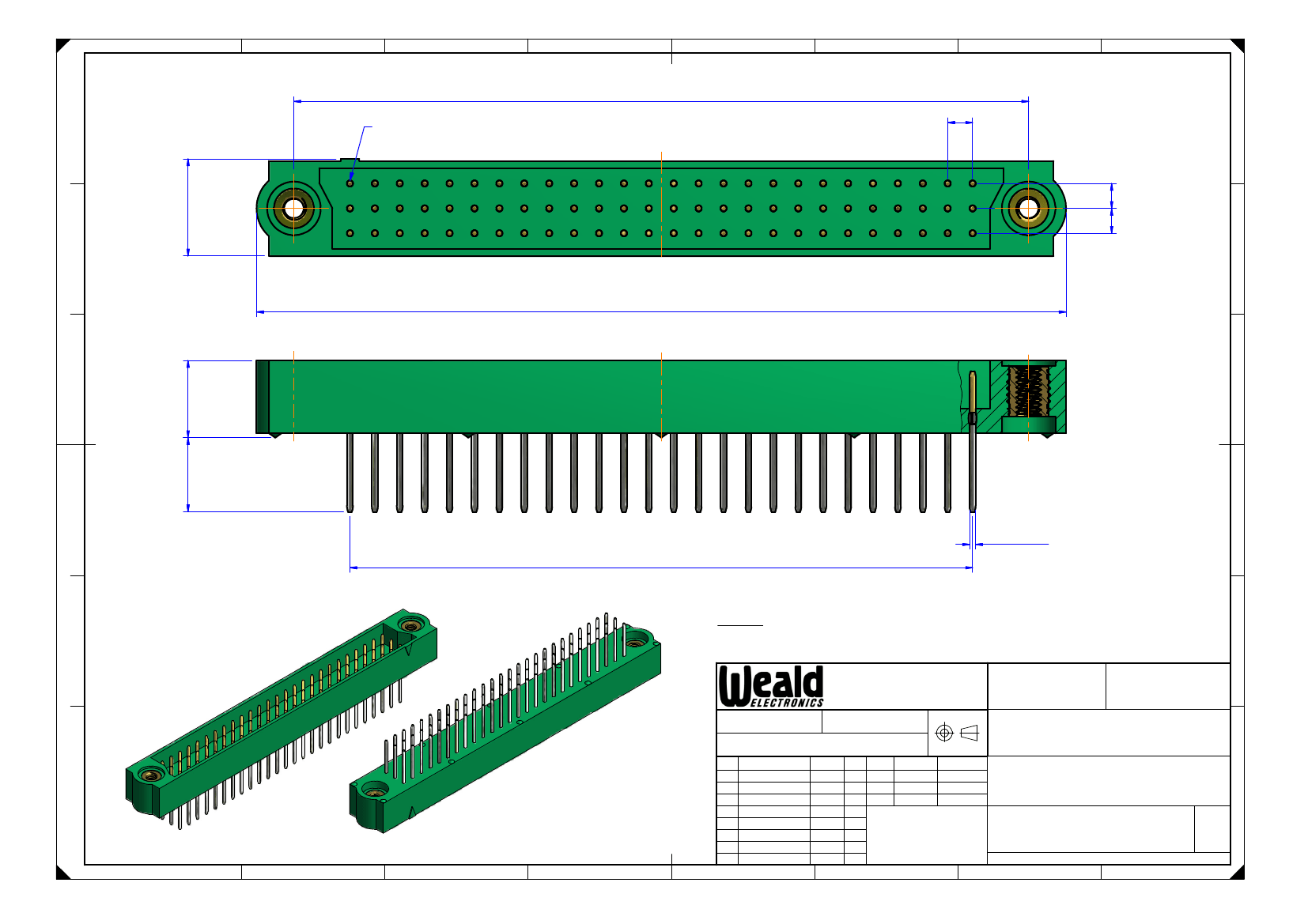

NOTES:-
1. PROVISIONAL DRAWING - FOR CUSTOMER REFERENCE ONLY.
2. FOR TECHNICAL AND PRODUCT SAFETY DETAILS SEE MICRONECTOR 300 CATALOGUE.
SLINFOLD LODGE, HORSHAM,
WEST SUSSEX, RH13 0RN
TEL: 01403 790715 FAX: 01403790734
E
FINISH:
N/A
MATERIAL:
SCALE:
4:1
DIMENSIONS IN MILLIMETERS
USED ON:
CUSTOMER REQUEST
DATE
WORK.
NAME
19/01/2015 B. Budzioch
DESCRIPTION:
M300 MALE STRAIGHT
F
CHECK.
STAND.
LINEAR
0.
0.0
0.00
TOLERANCES
ANGULAR
± 1.0
± 0.25
± 0.1
± 1°
0.°
0.0° ± 0.5°
0.00° ± 0.25°
PCB 78 WAY TYPE Y CONNECTOR
DRAWING No.
SHEET
F
A
No..
PROVISIONAL
AMENDMENTS
19.01.15 B.B.
DATE
NAME
301M78Y03A00
7
8
1 OF
1
NOT TO BE REPRODUCED IN ANY FORM WITHOUT PRIOR CONSENT
1
2
3
4
5
6
