31-70249 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 31-70249

31-70249: DescriptionRF BNC Connector, Female, Board Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

31-70249 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-70249	-	-	View	Buy Now

31-70249 Overview

RF BNC Connector, Female, Board Mount, Solder Terminal, Jack

31-70249 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
Filter function	NO
Insertion loss	0.1 dB
insulator material	PTFE
JESD-609 code	e4
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	1 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.16
Base Number Matches	1

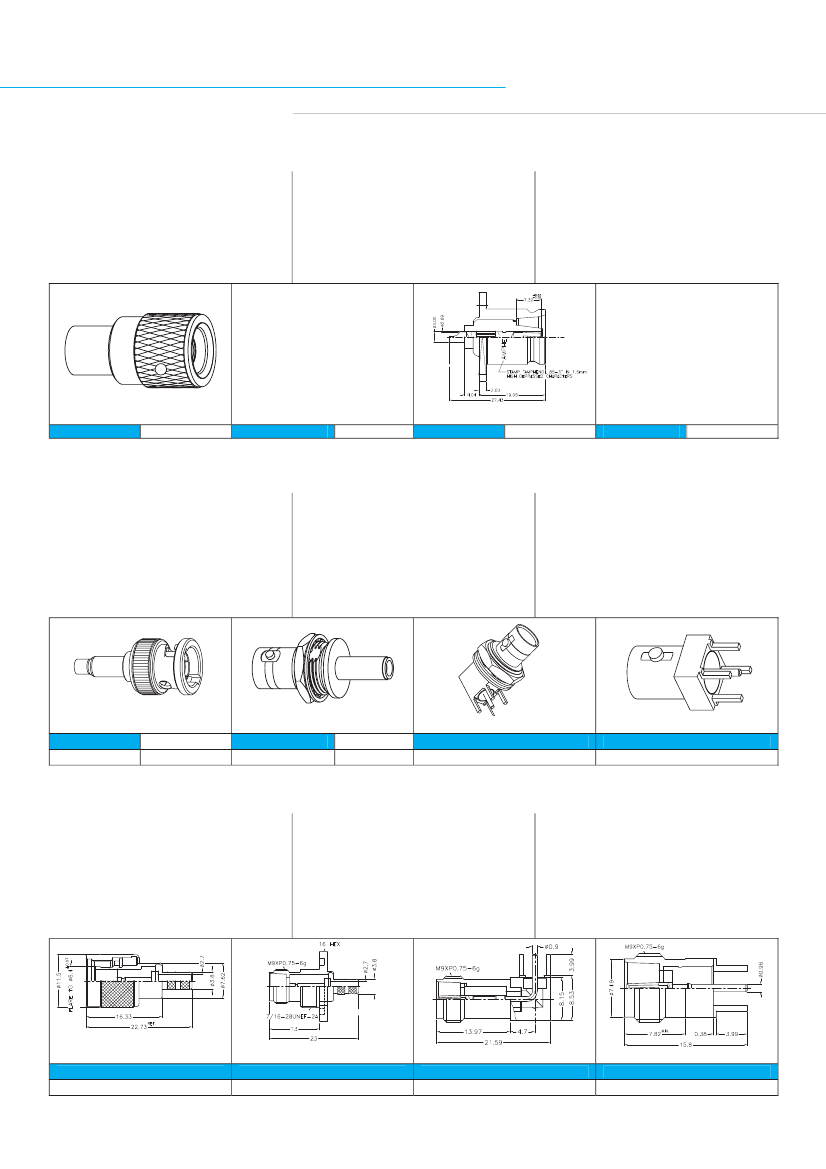

Preview

Download Datasheet

View All

Amphenol

RF Interconnects

QDS

50Ω Medium Sized Posi-Lock Push-Pull Interface Coaxial Connectors

A Superior connector system where power handling and Low Inter-modulation is required.

Electrical

Impedance

- 50Ω

Frequency Range - DC-4GHz recommended

- 0-11GHz usable

VSWR

- 1.1 max @ 4GHz

Insertion Loss

- 0.8dB

Voltage rating

- 1000V peak

Materials

Body - Brass

Body Finish

Socket Contact

Male Contact

Insulator

Crimp Sleeve

Sleeve Finish

- White Bronze or Silver

- Gold over Beryllium Copper

- Gold over Brass

- Teflon

- Copper

- White Bronze or Silver

Features and Benefits

Crimp/Crimp/Captive Contact

Vibration/Shock

- Mil-STD-202

Temperature

- -40°C ~ 85°C

Durability

- 500 Cycles

Applications

Base Station, Switching Equipment, Cable

Assemblies, Telecom and Components

Diagram not available

at the time of printing

Diagram not available

at the time of printing

Straight Plug

Part Number

85-1

Right Angle Plug

Part Number

85-2

Panel Receptacle Jack

Part Number

85-3

Bulkhead Jack

Part Number

85-4

SlimLine BNC

750Ω High Density Version of the Standard BNC (mini BNC)

Up to 40% more interconnects in the same area as the standard BNC without sacrificing the positive characteristics of the BNC.

Electrical

Impedance

Frequency Range

VSWR

RF Leakage

Insertion Loss

Working Voltage

- 75Ω

- DC-1GHz

- 1.16 max @ 1GHz

- -22.61dB @ 1GHz

- 0.1dB up to 1GHz

- 400 VAC peak

Materials

Body

Bayonet

Insulator

Spring Finger

Gasket

Spring Washer

Washer

Crimp Sleeve

- Nickel over Brass or Zinc

- PTFE

- Beryllium Copper

- Silicone

- Beryllium Copper

- Nickel over Brass

Features and Benefits

Temperature

Durability

Termination

- -40°C ~ 85°C

- 500 Cycles

- Crimp/Crimp

Applications

Antennas, Medical Equipment, Networks,

Automotive Computers/LAN, Mil/Aero,

Oscilloscopes, Surge Protection, Various

Telecommunication and instrumentation

OD 11.1mm

Crimp/Crimp Straight Plug

Part Number

Description

31-70261

RG179/187

Crimp/Crimp Straight B/H Jack

Part Number

Description

31-70252

AT&T 735

Right Angle PCB B/H Jack

Part Number

31-6055

Straight PCB Jack

Part Number

31-70249

Mini TNC

75Ω High Density Version of the Standard TNC

Up to 40% more interconnects in the same area as the standard BNC without sacrificing the positive characteristics of the BNC.

Electrical

Impedance

Frequency Range

VSWR

RF Leakage

Insertion Loss

Working Voltage

- 75Ω

- DC-1GHz

- 1.16 max @ 1GHz

- -22.61dB @ 1GHz

- 0.1dB up to 1GHz

- 400 VAC peak

Materials

Body

Bayonet

Insulator

Spring Finger

Gasket

Spring Washer

Washer

Crimp Sleeve

- Nickel over Brass or Zinc

- PTFE

- Beryllium Copper

- Silicone

- Beryllium Copper

- Nickel over Brass

Features and Benefits

Temperature

Durability

Termination

- -40°C ~ 85°C

- 500 Cycles

- Crimp/Crimp

Applications

Antennas, Medical Equipment, Networks,

Automotive Computers/LAN, Mil/Aero,

Oscilloscopes, Surge Protection, Various

Telecommunication and instrumentation

Crimp/Crimp Straight Plug for

RG179/187

Crimp/Crimp Str. B/H Jack for

RG179/187

Part Number

MNT1121E1-NT3G-179U-75

RF/ARFA

Part Number

MNT6421E1-NT3G-179U-75

Right Angle PCB Jack

Part Number

MNT6252A1-002-3GT30G-75

Straight PCB Jack

Part Number

MNT6251A1-001-3GT30G-75

U-34

31-70249 Related Products

	31-70249	31-70252
Description	RF BNC Connector, Female, Board Mount, Solder Terminal, Jack	RF BNC Connector, Female, Cable Mount, Crimp Terminal, Jack
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
Body/casing type	JACK	JACK
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact completed and terminated	Gold (Au)	GOLD (30)
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
JESD-609 code	e4	e4
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	CRIMP
Base Number Matches	1	1
