CRYSTAL
OSCILLATORS
SIMPLE PACKAGED CRYSTAL OSCILLATORS 3200 SERIES
s

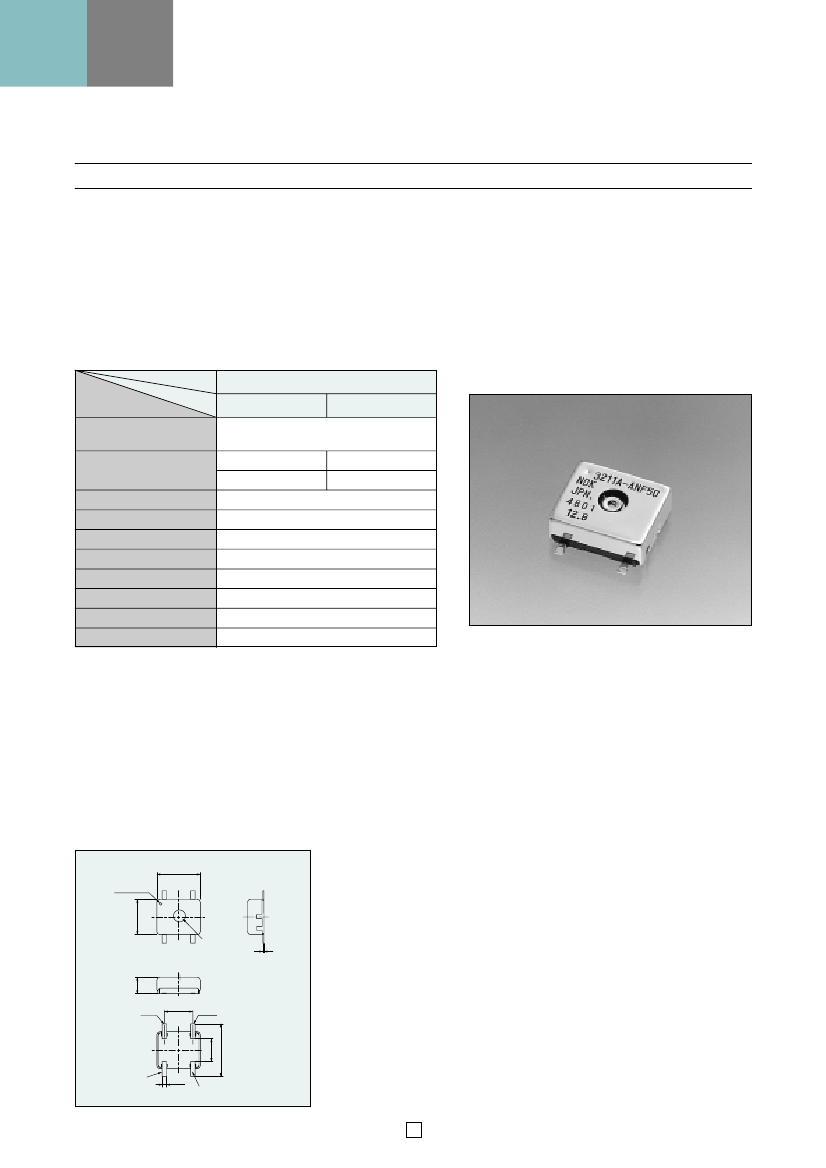

Model 3211A
s
Main applications: Digital Cordless telephone
s
Features
8
Height 3.9mm, volume 0.43j, weight 1g
s
Specification
Model
Item
Spec. Code
ANF50
3211A
APA50
(light & small)
8
Surface mount type
(Both laser soldering method and low tem-
perature soldering method are applicable.
For low temperature soldering, please con-
tact us for temperature profile.)
8
Low power consumption
Standard Frequency
(MHz)
Frequency Stability
Supply Volt Change
Supply Voltage
Current Consumption
Output Voltage
Load
Aging
Frequency Trim Range
Case Code
12.8 14.4 15.36
±2.5×10
–6
–15~+55°C
+5VDC
1.5mA max
1V (Peak to Peak) min
10kΩ//10pF
±1×10
–6
/year
±3×10
–6
min
11A
±3.0×10
–6
0~+50°C
±0.3×10
–6
/+5V±5%
Note: Frequency adjustment condition
(1) Adjustment is conducted in room temperature (+25±2°C).
(2) For adjustment, oscillator is placed on the printed board which has
earth pattern.
This oscillator is shipped after frequency adjustment at NDK. But if you
need to trim frequency by trimmer condenser, please make sure that the
driver fits trimmer rotor hole. Also do not apply pressure to trimmer rotor.
If you need NON-standard spec. for frequency, low voltage, please contact
us.
s
Dimensions
11A
HOLLOW
9.6
11.4
(mm)
FREQ.ADJ.
ø3.4
0.15
3.9
±0.2
GND
7.62
±0.2
GND
12.6
±0.2
+DC
1.0
±0.1
OUTPUT
7.0
±0.5
114
SIMPLE PACKAGED CRYSTAL OSCILLATORS 3200 SERIES
s

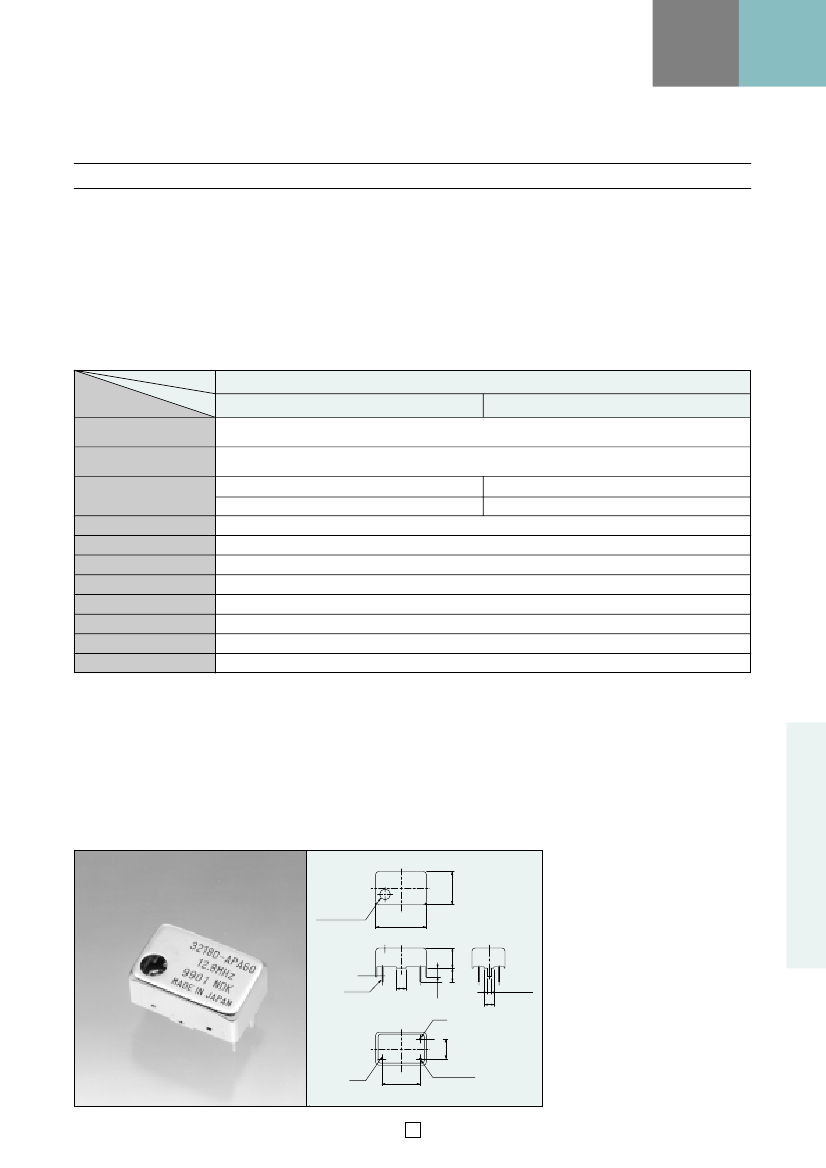

Model 3218D
s
Main applications: Cordless telephones
s
Features
8
High-reliability metal package (grounded)
8
Low power consumption
s
Specification
Model
Item
Spec. Code
APA60
10
10.625
10~15
±3×10
–6
0~+50°C
±0.3×10
–6
/+5V±5%
+5VDC
3mA max
1V (Peak to Peak) min
20kΩ//5pF
±1×10
–6
/year
±3×10
–6
min
18D
±2.5×10
–6
–15~+55°C
12.8
3218D
ANF60
Standard Frequency
(MHz)
Frequency Range
(MHz)
Frequency Stability
Supply Volt Change
Supply Voltage
Current Consumption
Output Voltage
Load
Aging
Frequency Trim Range
Case Code
Note: Frequency adjustment condition
(1) Adjustment is conducted in room temperature (+25±2°C).
(2) For adjustment, oscillator is placed on the printed board which has earth pattern.
This oscillator is shipped after frequency adjustment at NDK. But if you need to trim frequency by trimmer condenser, please make sure that the
driver fits trimmer rotor hole. Also do not apply pressure to trimmer rotor.
If you need NON-standard spec. for frequency, low voltage, please contact us.
CRYSTAL OSCILLATORS
s
Dimensions
18D
11.7
(mm)
FREQ.ADJ.
18.3
0.3
2.5
3-ø0.5
4
5±1 7.5
+0
1.2-0.5
4
GND
7.5±0.3
+DC
15±0.3
OUTPUT
