31-70036: DescriptionRF Connector Adapter, BNC-BNC-BNC, Female-Male-Female, Jack-plug-jack; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-70036 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-70036	-	-	View	Buy Now

31-70036 Overview

RF Connector Adapter, BNC-BNC-BNC, Female-Male-Female, Jack-plug-jack

31-70036 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	BNC-BNC-BNC
Other features	HERMETIC SEALED
Body/casing type	JACK-PLUG-JACK
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-MALE-FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	31
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.9
Base Number Matches	1

Preview

Download Datasheet

View All

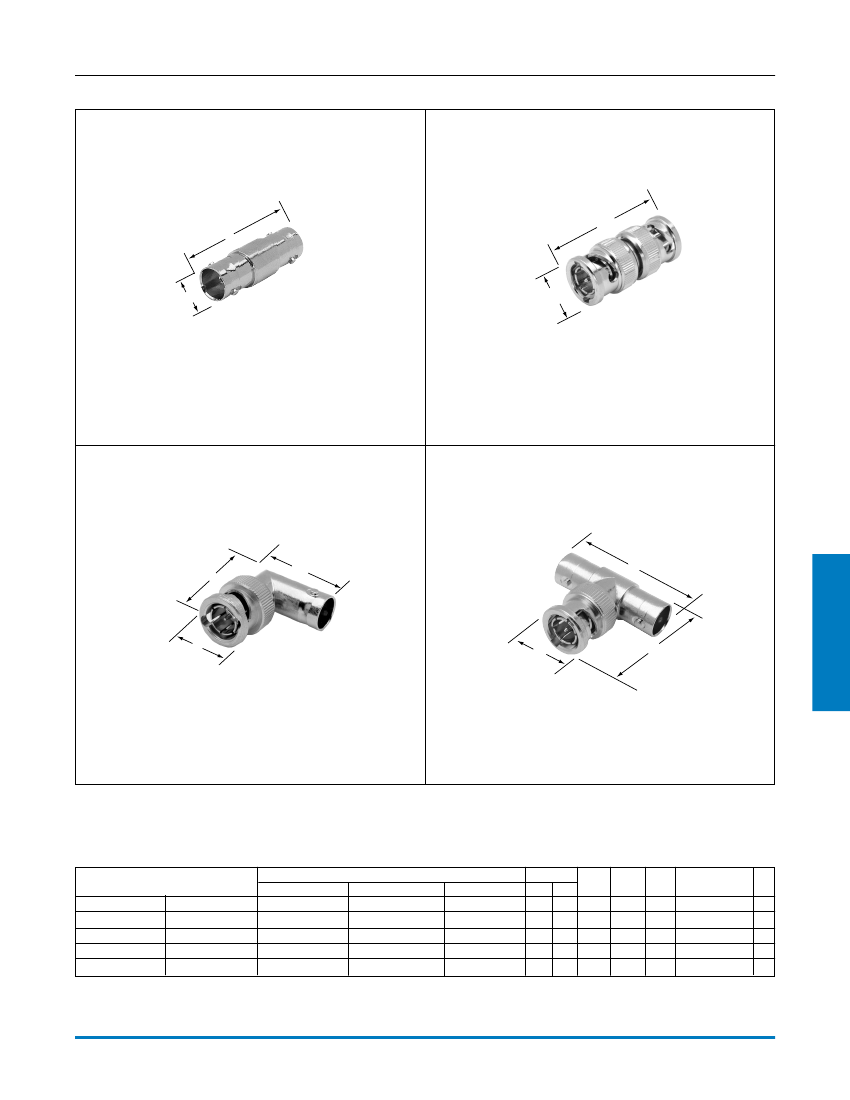

BNC 75 ohm

Adapters

Fig. 1

Fig. 2

Amphenol

®

a

b

75Ω BNC Adapter (J/J)

31-219-75

31-70019

Fig.3

Fig. 4

75Ω BNC Adapter (P/P)

31-218-75RFX

a

d

a

BNC

b

d

75Ω BNC Adapter (P/J)

31-9-75

31-9-75-RFX

75Ω BNC Tee Adapter (J/P/J)

31-70036

75Ω BNC ADAPTERS

Description

Straight

Angle

Tee

v

distributor stocked

Jack-Jack

Plug-Plug

Jack-Plug

Jack-Plug-Jack

Dimensions, inches (millimeters)

a

b

1.28(32.5)

.434(11.0)

1.40(35.6)

1.33(33.7)

1.02(25.9)

1.28(32.5)

.434(11.0)

.571(14.5)

.562(14.3)

d

—

.405(10.3)

1.04(26.3)

Notes

Plt. Ins.

P15 D1

P17 D1

P15 D1

P15 D9

P15 D1

Mtg.

Hole

—

UG

No.

—

75Ω

Type

T2

T1

T2

T1

Amphenol

Number

31-219-75

31-70019

31-218-75RFX

31-9-75

31-70036

Fig.

1

2

3

4

v

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com
