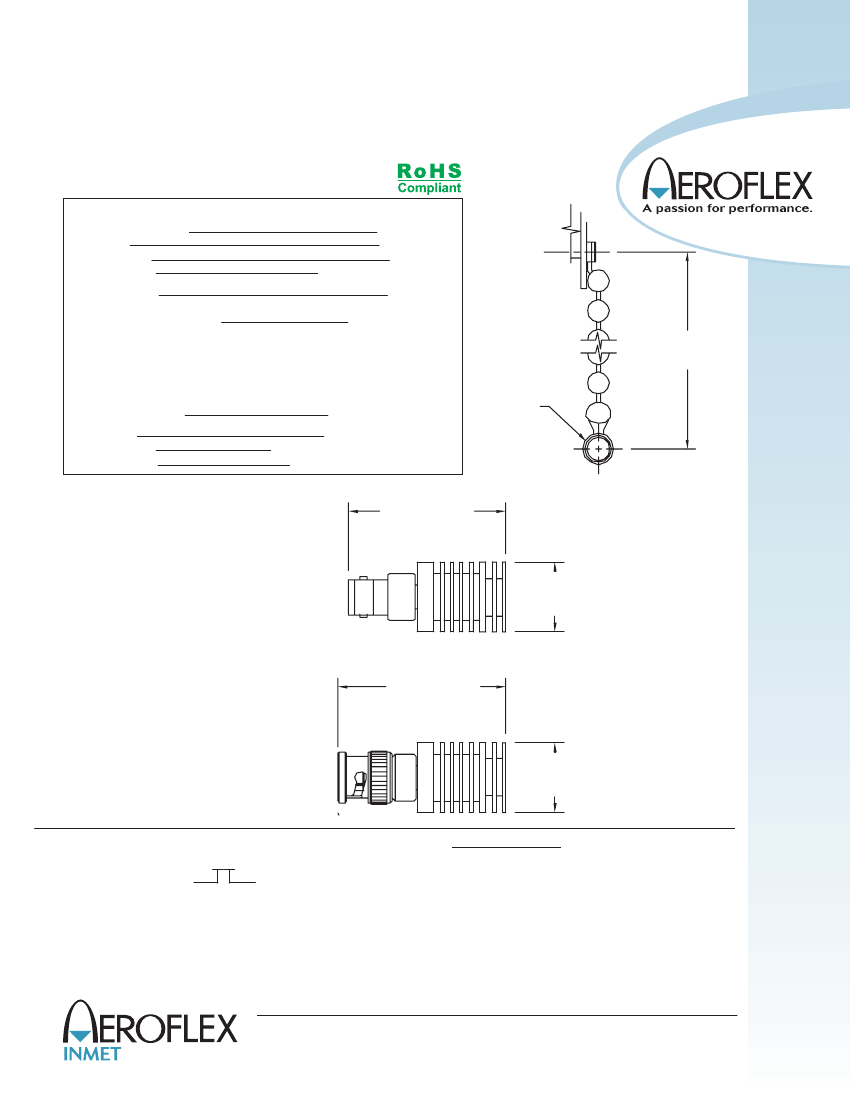

TERMINTAIONS
BNC, DC - 4 GHz, 5 Watts
SPECIFICATIONS:
Models: 3073BM, 3073BF, 3073BMC, 3073BFC
Electrical:
Frequency Range
VSWR
Impedance
Input Power
Peak Power
Operating Temp Range
DC - 4 GHz
1.25:1 Max.
50 Ohms
5 Watts Avg. @ +25°C
Derated Linearly to 1 Watts @ +125 C
o
5 kW Max.
(5uSec Pulse, .05% Duty Cycle)
-65°C to +125°C
3.5 [89] Long
Bead Chain
Mechanical:
BNC Connectors
Mates with MIL-STD-348
Nickel Plated Brass
Anodized Aluminum
Gold Plated Beryllium Copper
Passivated Stainless Steel
Ø.13[3.3]
Thru
Housing
Conductors
Bead Chain
Model Number:
3073BF
BNC Female Connector
1.69±.05
[42.93±1.27]
CHAIN DETAIL
Ø.75
[19.05]
Model Number:
3073BM
BNC Male Connector
1.80±.05
[45.72±1.27]
Ø.75
[19.05]
HOW TO ORDER:
Model Number:
Ordering Examples:
3073BXY
Style
= No Chain
C = Chain Included
Model Number:
3073BMC
DC - 4 GHz; BNC N Male; Chain Included
Model Number:
3073BF
DC - 4 GHz; BNC N Female; No Chain
Connector Configuration
M = Male
F = Female
Model Number:
3073BM
DC - 4 GHz; BNC N Male: No Chain
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
3073B: REV -
specifications before purchasing and/or use.
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • sales@aeroflex-inmet.com
