8609-432-81-09-758-015-E1

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Gray Insulator, Plug
CategoryThe connector    The connector
File Size55KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

8609-432-81-09-758-015-E1 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Gray Insulator, Plug

8609-432-81-09-758-015-E1 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.417 inch
subject depth0.457 inch
body length3.74 inch
Body/casing typePLUG
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact styleSQ PIN-SKT
DIN complianceYES
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialTHERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number8609
Plug contact pitch0.1 inch
Match contact row spacing0.2 inch
Mixed contactsNO
Installation methodSTRAIGHT
Loaded row nameA,C
Number of rows loaded2
OptionsGENERAL PURPOSE
Plating thickness16u inch
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.197 inch
Terminal pitch5.08 mm
Total number of contacts32
Base Number Matches1

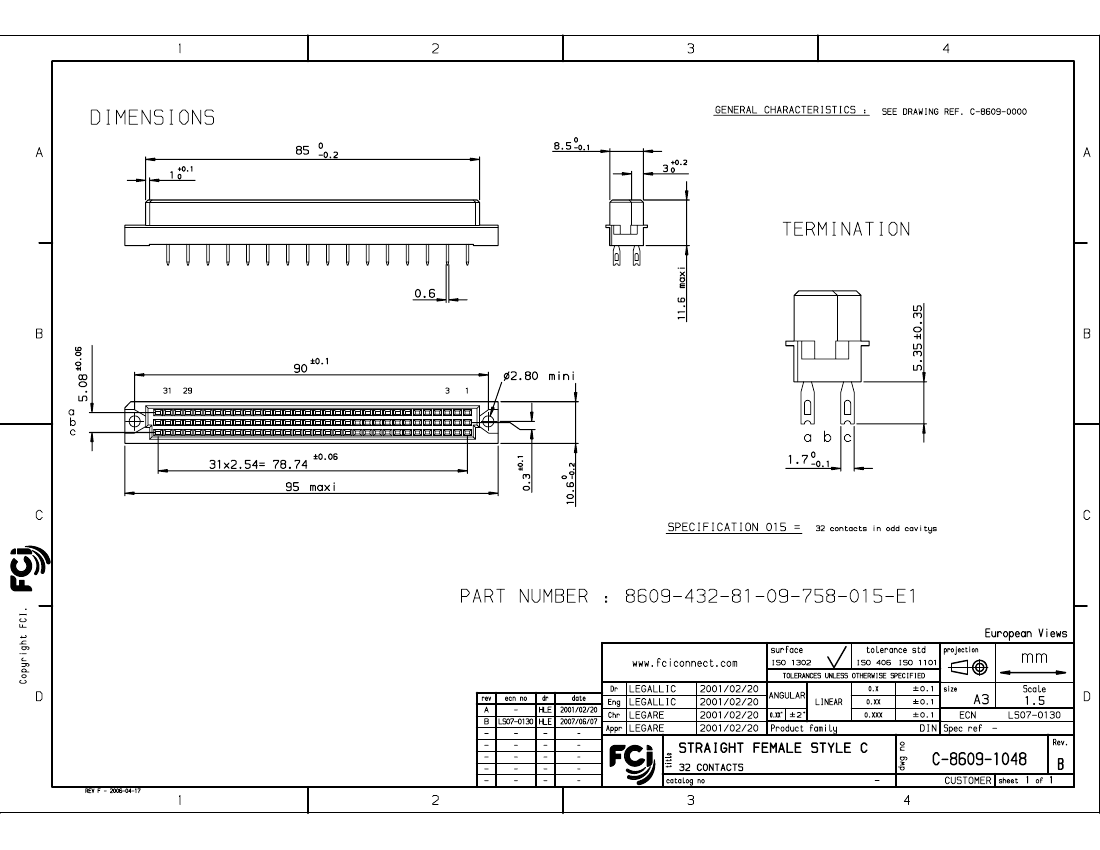

PDM: Rev:B
STATUS:
Released
Printed: May 14, 2011
.
