E100I
Series
High Isolation
Miniature, 1W SIP
DC/DC Converters
Electrical Specifications
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
New Models!!
Conditions
5 VDC Input
12 VDC Input
24 VDC Input
48 VDC Input
Min.
4.5
10.8
21.6
43.2
Typ.
5.0
12.0
24.0
48.0
Max.
5.5
13.2
26.4
52.8
0.3
Units
Key Features:
•
1W Output Power
•
Miniature SIP Case
•
3,000 VDC Isolation
•
Complies to RFI Standards
•
>2 MHour MTBF
•
20 Standard Models
•
Industry Standard Pin-Out
Input
Parameter
Input Voltage Range
VDC
Reverse Polarity Input Current
Input Filter
A
Internal Capacitor
Conditions
Min.
Typ.
Max.
±3.0
Units
%
%
mV P - P
%
%/ºC
Output
Parameter
Output Voltage Accuracy
Line Regulation
Load Regulation (Note 1)
Ripple & Noise (20 MHz) (Note 2)
Output Power Protection
Temperature Coefficient
Output Short Circuit
For Vin Change of 1%
±1.2
See Model Selection Guide
60
110
±0.01
Momentary (0.5 Sec.)
Conditions
Min.
3,000
1,000
Typ.
±0.02
RoHS Compliant
General
Parameter
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
EMI/RFI
Units
60 Seconds
VDC
1,000 VDC
MΩ
100 kHz, 1V
60
pF
50
kHz
EN55022 A, EN55024 A, IEC 61000-4-2, IEC 61000-4-3, FCC 47 CFR Part 15 B
Conditions
Ambient
Case
Min.
-40
Typ.
+25
Max.
+85
+100
+125
95
Units
ºC
ºC
ºC
%
Max.
Environmental
Parameter
Operating Temperature Range
Operating Temperature Range
Storage Temperature Range
Cooling
Humidity
-40
Free Air Convection
RH, Non-condensing
Physical
MicroPower Direct
232 Tosca Drive
Stoughton, MA 02072
USA
T: (781) 344-8226
F: (781) 344-8481
E: sales@micropowerdirect.com
W: www.micropowerdirect.com
Case Size
(5V, 12V & 24V Input Models)
Case Size
(48V Input Models)
Case Material
Weight
0.46 x 0.24 x 0.40 Inches (11.68 x 6.0 x 10.2 mm)
0.46 x 0.29 x 0.40 Inches (11.68 x 7.5 x 10.2 mm)
Non-Conductive Black Plastic (UL94-V0)
0.06 Oz (1.8g)
Conditions
MIL HDBK 217F, 25ºC, Gnd Benign
Conditions
5 VDC Input
12 VDC Input
24 VDC Input
48 VDC Input
1.5 mm From Case For 10 Sec
All Models
Min.
2.0
Min.
-0.7
-0.7
-0.7
-0.7
Typ.
Max.
Units
MHours
Units
Reliability Specifications
Parameter
MTBF
Absolute Maximum Ratings
Parameter
Typ.
Max.
7.0
15.0
28.0
54.0
260
650
Input Voltage Surge (1 Sec)
VDC
Lead Temperature
Internal Power Dissipation
ºC
mW
Caution: Exceeding Absolute Maximum Ratings may damage the module. These are not continuous operating ratings.
Model Selection Guide
Model
Number
E101I
E102I
E103I
E104I
E105I
E111I
E112I
E113I
E114I
E115I
E121I
E122I
E123I
E124I
E125I
E131I
E132I
E133I
E134I
E135I
Input
Voltage (VDC)
Nominal
Range
5
4.5 - 5.5
5
4.5 - 5.5
5
4.5 - 5.5
5
4.5 - 5.5
5
4.5 - 5.5
12
10.8 - 13.2
12
10.8 - 13.2
12
10.8 - 13.2
12
10.8 - 13.2
12
10.8 - 13.2
24
21.6 - 26.4
24
21.6 - 26.4
24
21.6 - 26.4
24
21.6 - 26.4
24
21.6 - 26.4
48
43.2 - 52.8
48
43.2 - 52.8
48
43.2 - 52.8
48
43.2 - 52.8
48
43.2 - 52.8
Load
Output
Voltage Current
Current Regulation
Current (mA)
Full-Load No-Load (VDC) (mA, Max) (mA, Min) (% Max)
267
25
5.0
200.0
4.0
10
260
25
9.0
111.0
2.0
10
256
25
12.0
83.3
2.0
10
257
25
15.0
66.6
2.0
10
257
25
24.0
41.6
2.0
10
112
16
5.0
200.0
4.0
10
109
16
9.0
111.0
2.0
10
107
16
12.0
83.3
2.0
10
107
16
15.0
66.6
2.0
10
107
16
24.0
41.6
2.0
10
56
10
5.0
200.0
4.0
10
55
10
9.0
111.0
2.0
10
54
10
12.0
83.3
2.0
10
54
10
15.0
66.6
2.0
10
54
10
24.0
41.6
2.0
10
28
7
5.0
200.0
4.0
10
27
7
9.0
111.0
2.0
10
27
7
12.0
83.3
2.0
10
27
7
15.0
66.6
2.0
10
27
7
24.0
41.6
2.0
10
Efficiency
(%, Typ)
75
77
78
78
78
75
77
78
78
78
75
77
78
78
78
75
76
76
76
76
Fuse Rating
Slow-Blow
(mA)
500
500
500
500
500
200
200
200
200
200
100
100
100
100
100
50
50
50
50
50
Models with other outputs
are available. Contact the
factory for details!!
Notes:
1. Output load regulation is specified for a load change of
20% to 100%.
2. When measuring output ripple, it is recommended that
an external 0.33
µF
ceramic capacitor be placed from the
+Vout pin to the -Vout pin.
3. Operation at no-load will not damage these units. How-
ever, they may not meet all specifications.
4. The 5V, 12V and 24V input units do not require external
components to operate, but the use of a low ESR capaci-
tor (approximately 10
uF,
ESR <1.0Ω at 100 kHz) mounted
close to the converter input pins is recommended.
For 48 VDC input units, an input capacitor should always
be used. Dependent upon the application, a value be-
tween 4.7
µF
and 47
uF
should be sufficient.
5. It is recommended that a fuse be used on the input of
a power supply for protection. See the table above for
the correct rating.

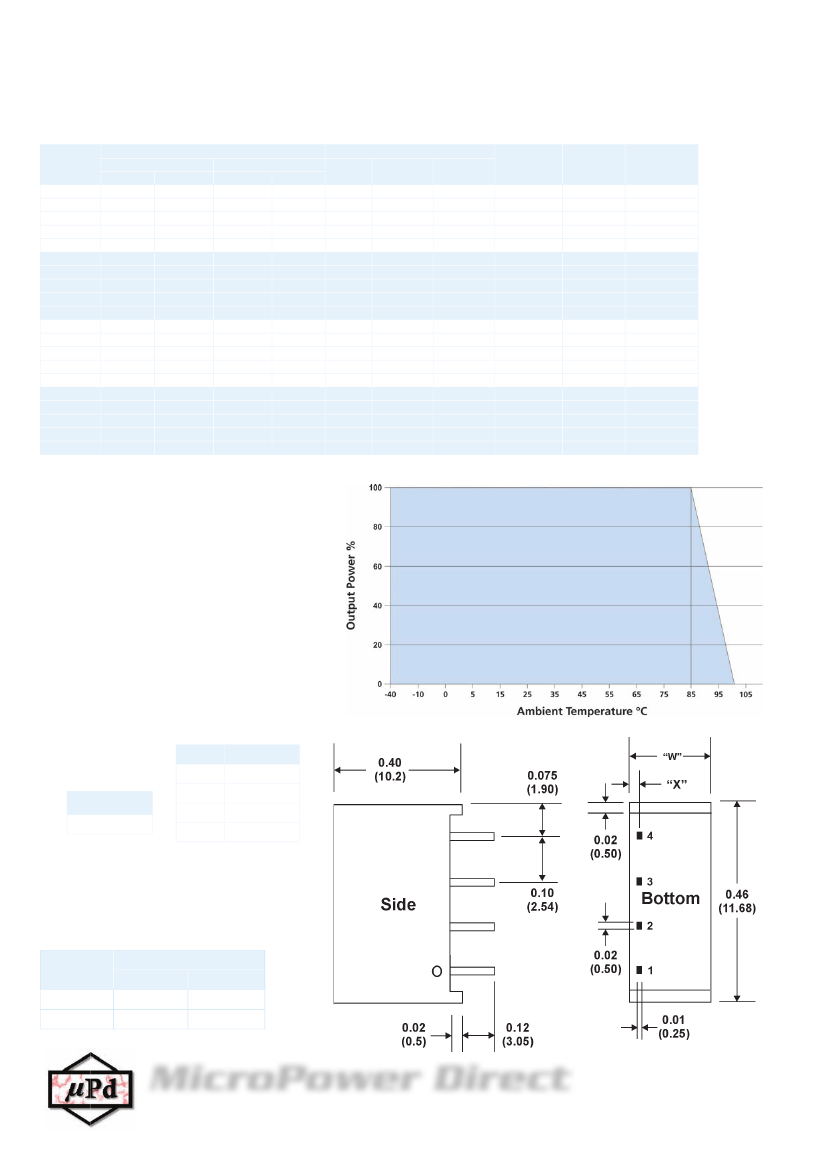

Derating Curve
Pin Connections
Capacitive
Load
(µF Max)
220
Pin
1
2
3
4
Description
-Vin
+Vin
-Vout
+Vout
Mechanical Dimensions
Notes:
•
All dimensions are typical in inches (mm)
•
Tolerance x.xx = ±0.01 (±0.25)
•
Pin 1 is marked by a “dot” or indentation on the side of the
unit
•
Dimensions indicated on the drawing are as follows:
Dimension
“W”
“X”
Input Voltage
5, 12 & 24V
0.24 (6.0)
0.05 (1.25)
48V
0.29 (7.5)
0.08 (2.00)
