3082-7525-12-30 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 3082-7525-12-30

3082-7525-12-30: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max; CategoryWireless rf/communication Radio frequency and microwave; File Size50KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric View All

3082-7525-12-30 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max

3082-7525-12-30 Parametric

Parameter Name	Attribute value
Objectid	1580895785
Reach Compliance Code	compliant
YTEOL	2
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.98 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

Type N Attenuator, 25 Watt

Specifications

Electrical:

•Freq.

Range:

•VSWR:

DC-6 GHz

6 – 12.4 GHz

•Attenuation

Accuracy:

3, 6 dB

10 dB

20, 30 dB

40 dB

•Power

(Avg):

•Power

(Peak):

•Impedance:

•Operating

Temperature:

Mechanical:

•Finish/Material:

Connectors

Conductors

Heat Sink

Passivated Stainless Steel

Gold Plated Beryllium Copper

Black Anodized Aluminum

Part Number Format: 3082-7525-FF-XX

(FF = 06 for 6 GHz; 12 for 12.4 GHz)

(XX = 03,06,10,20,30, dB standard values)

Contact factory for other dB values or connector configurations

DC-6 GHz

±0.30

±0.50

±0.75

±1.00

6-12.4 GHz

±0.50

±0.75

±1.00

±1.25

25 Watts

(Derated linearly to 5 Watt @ +125 ºC)

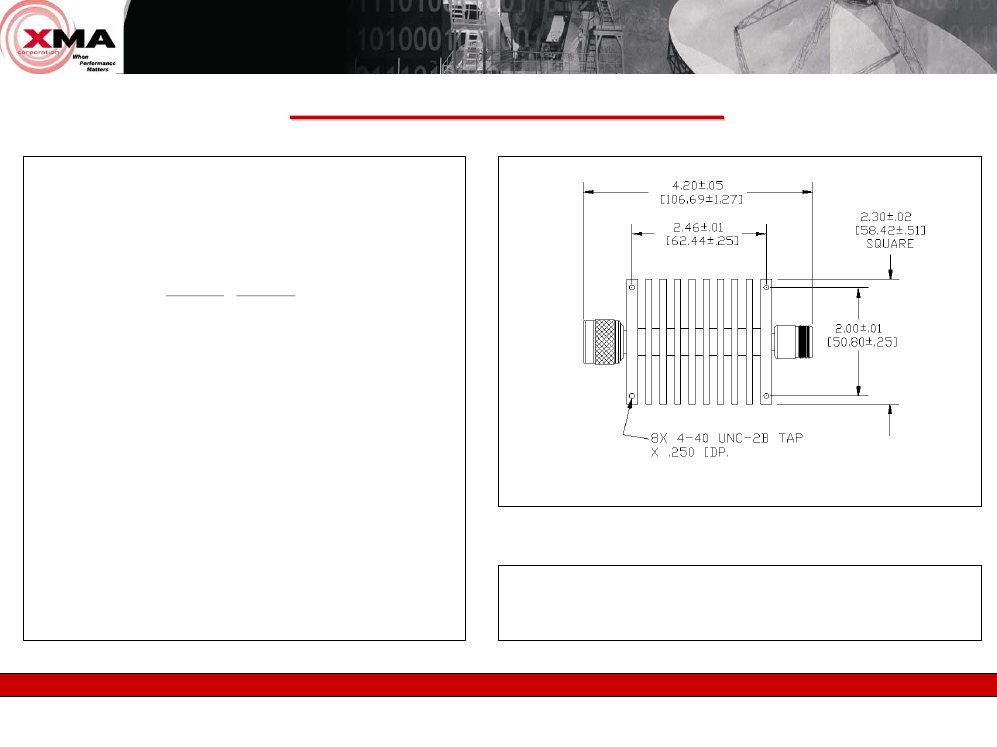

Outline Drawing

DC-6, 12.4 GHz

1.20:1 Max

1.30:1 Max

dB Max

500 Watts

(5usec, 0.05% Duty Cycle)

50 Ohms

-65 ºC to +125 ºC

Note: Unit is bi-directional

Ordering Guide

Rev: A2

010708DC

WHEN PERFORMANCE MATTERS

150 Dow Street Manchester, NH 03101

Tel: 603-222-2256

Fax: 603-222-2259

www.XMACORP.com
