58336-301 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 58336-301

58336-301: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size156KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

58336-301 Overview

Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal

58336-301 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	6 mm
Termination type	PRESS FIT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

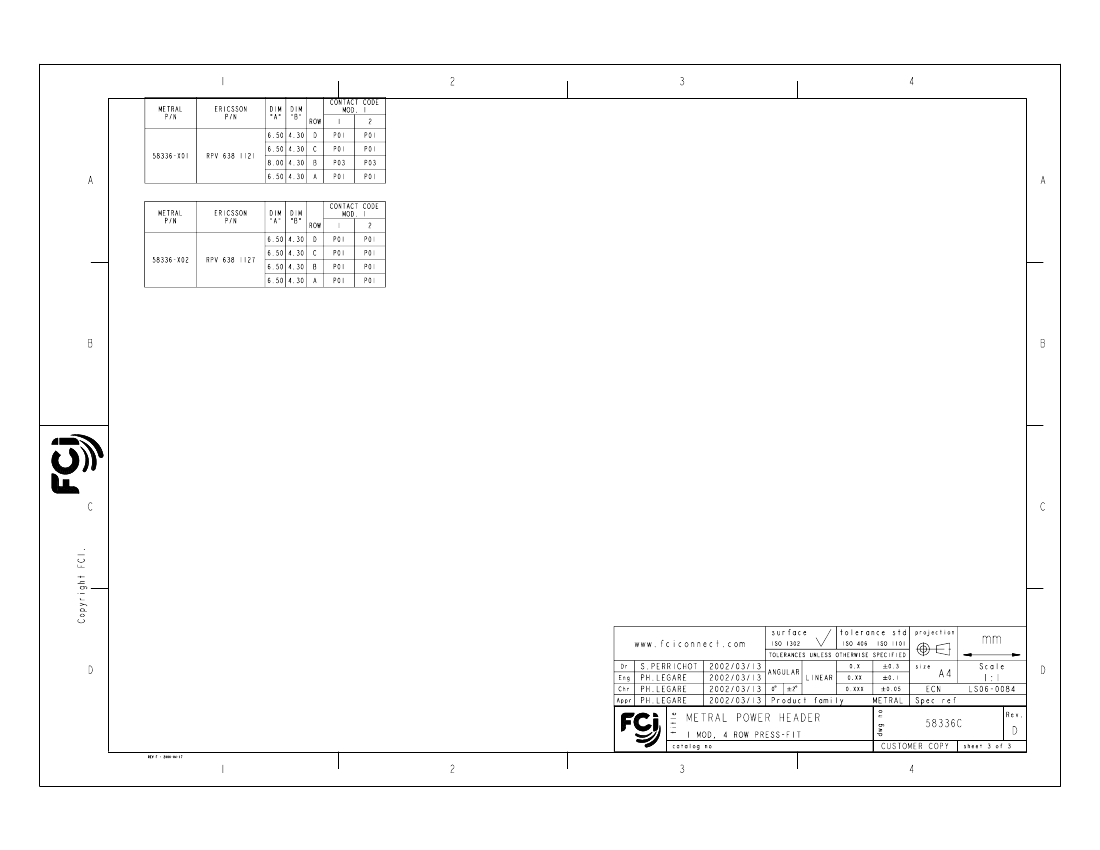

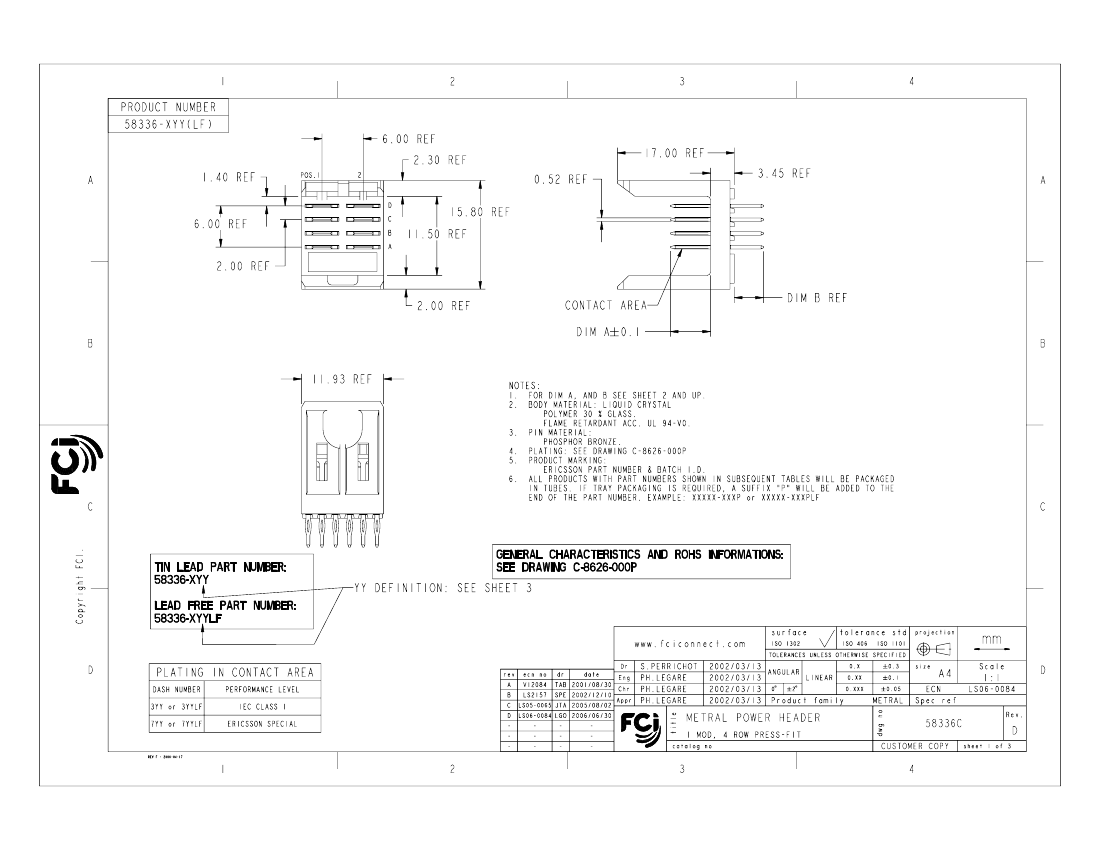

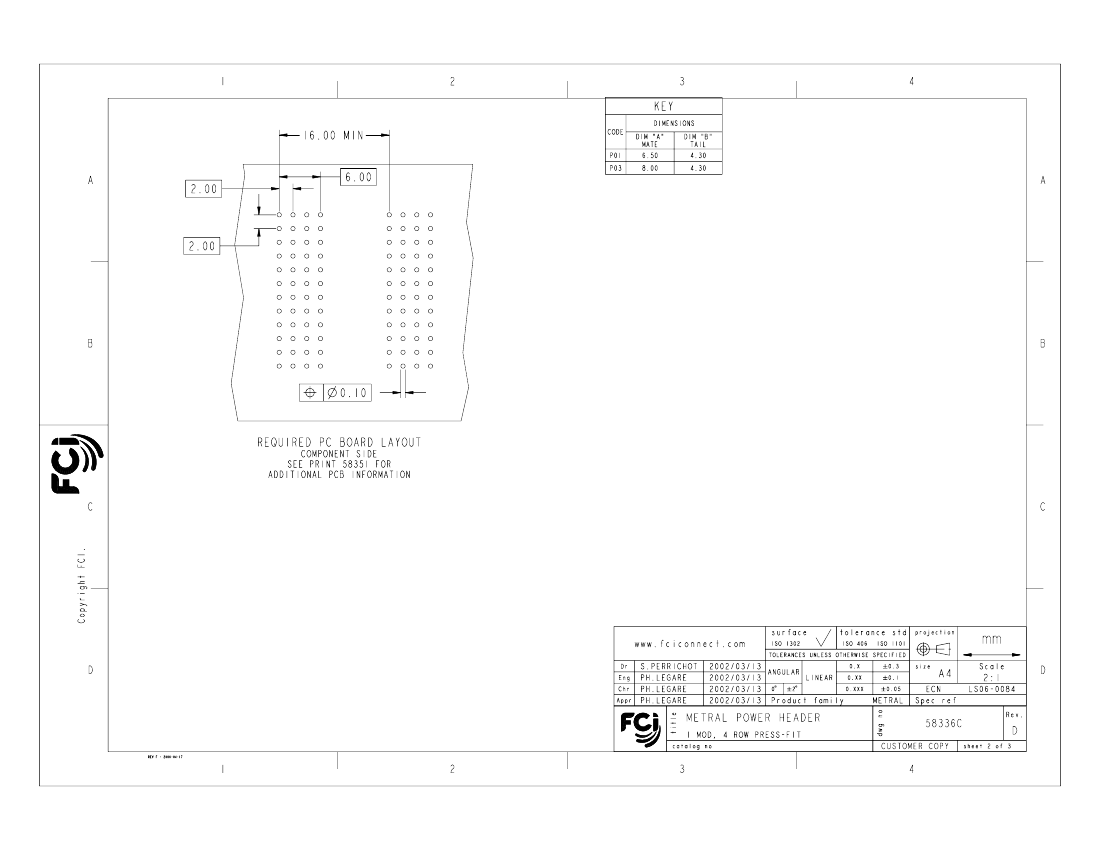

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Oct 29, 2009

58336-301 Related Products

	58336-301	58336-701	58336-701LF	58336-702	58336-101	58336-102	58336-302	58336-302LF	58336-301LF	58336-702LF
Description	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	MET PWR HDR 1MX4R PF	METRAL PWR HDR 1MX4R PF	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	Connector, male blade	Connector, male blade	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Installation type	BOARD	BOARD	BOARD	BOARD	Through hole	Through hole	BOARD	BOARD	BOARD	BOARD
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	unknown	-	-	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Contact point gender	MALE	MALE	MALE	MALE	-	-	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	-	-	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	-	-	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	-	-	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	-	-	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	-	-	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	4	4	4	4	-	-	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	6 mm	6 mm	6 mm	6 mm	-	-	6 mm	6 mm	6 mm	6 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	8	8	8	8	-	-	8	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	-	94V-0	94V-0	94V-0	94V-0
