DR349-4-685: DescriptionSMD INDUCTOR; File Size86KB，2 Pages; ManufacturerDATATRONICS; Websitehttp://www.datatronics.com/

Download Datasheet View All

DR349-4-685 Overview

SMD INDUCTOR

Preview

Download Datasheet

View All

June 11, 2007

SMD INDUCTOR DR349-4 SERIES

Features

SMD Inductor

Suitable for Reflow soldering

Inductance Range from 1µH to 10mH

Operating Temp. -40°C to +85°C

Tinned Leads with Leaded Solder is Available

(note 4)

ELECTRICAL SPECIFICATIONS AT 25ºC

PART NO.

DR349-4-102

DR349-4-122

DR349-4-152

DR349-4-182

DR349-4-222

DR349-4-272

DR349-4-332

DR349-4-392

DR349-4-472

DR349-4-562

DR349-4-682

DR349-4-822

DR349-4-103

DR349-4-123

DR349-4-153

DR349-4-183

DR349-4-223

DR349-4-273

DR349-4-333

DR349-4-393

DR349-4-473

DR349-4-563

DR349-4-683

DR349-4-823

DR349-4-104

DR349-4-124

DR349-4-154

DR349-4-184

DR349-4-224

DR349-4-274

DR349-4-334

DR349-4-394

DR349-4-474

DR349-4-564

DR349-4-684

DR349-4-824

DR349-4-105

DR349-4-125

DR349-4-155

DR349-4-185

DR349-4-225

DR349-4-275

DR349-4-335

DR349-4-395

DR349-4-475

DR349-4-565

DR349-4-685

DR349-4-825

DR349-4-106

INDUCTANCE (µH)

@7.96MHz

1.0±10%

@7.96MHz

1.2±10%

@7.96MHz

1.5±10%

@7.96MHz

1.8±10%

@7.96MHz

2.2±10%

@7.96MHz

2.7±10%

@7.96MHz

3.3±10%

@7.96MHz

3.9±10%

@7.96MHz

4.7±10%

@7.96MHz

5.6±10%

@7.96MHz

6.8±10%

@7.96MHz

8.2±10%

@2.52MHz

10±10%

@2.52MHz

12±10%

@2.52MHz

15±10%

@2.52MHz

18±10%

@2.52MHz

22±10%

@2.52MHz

27±10%

@2.52MHz

33±10%

@2.52MHz

39±10%

@2.52MHz

47±10%

@2.52MHz

56±10%

@2.52MHz

68±10%

@2.52MHz

82±10%

@0.796MHz

100±10%

@0.796MHz

120±10%

@0.796MHz

150±10%

@0.796MHz

180±10%

@0.796MHz

220±10%

@0.796MHz

270±10%

@0.796MHz

330±10%

@0.796MHz

390±10%

@0.796MHz

470±10%

@0.796MHz

560±10%

@0.796MHz

680±10%

@0.796MHz

820±10%

@0.252MHz

1000±10%

@0.252MHz

1200±5%

@0.252MHz

1500±5%

@0.252MHz

1800±5%

@0.252MHz

2200±5%

@0.252MHz

2700±5%

@0.252MHz

3300±5%

@0.252MHz

3900±5%

@0.252MHz

4700±5%

@0.252MHz

5600±5%

@0.252MHz

6800±5%

@0.252MHz

8200±5%

@0.0796MHz

10000±5%

DCR (Ω) MAX.

0.030

0.035

0.04

0.05

0.06

0.07

0.08

0.09

0.11

0.13

0.15

0.18

0.21

0.25

0.30

0.36

0.43

0.52

0.62

0.72

0.85

1.0

1.2

1.4

1.6

1.9

2.2

2.8

3.4

4.2

4.9

5.8

7.0

8.5

110

125

150

MAX. RATED CURRENT (mA)

1800

1700

1600

1400

1300

1200

1120

1050

950

880

810

750

690

630

580

530

480

440

400

370

340

310

290

270

250

230

210

190

170

155

140

130

120

110

100

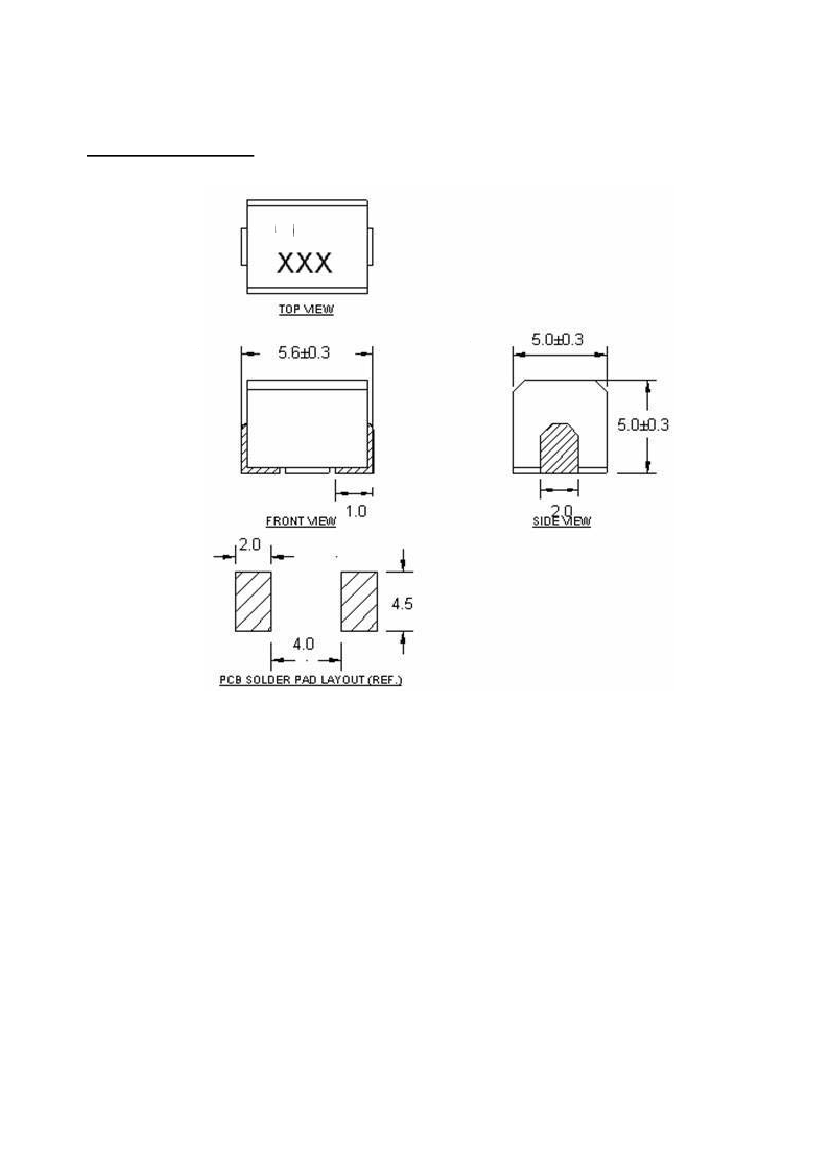

DATATRONIC

28151 Highway 74, Romoland, CA 92585

Tel: 951-928-7700 Toll Free Tel: 888-889-5391 Fax: 951-928-7701

Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
