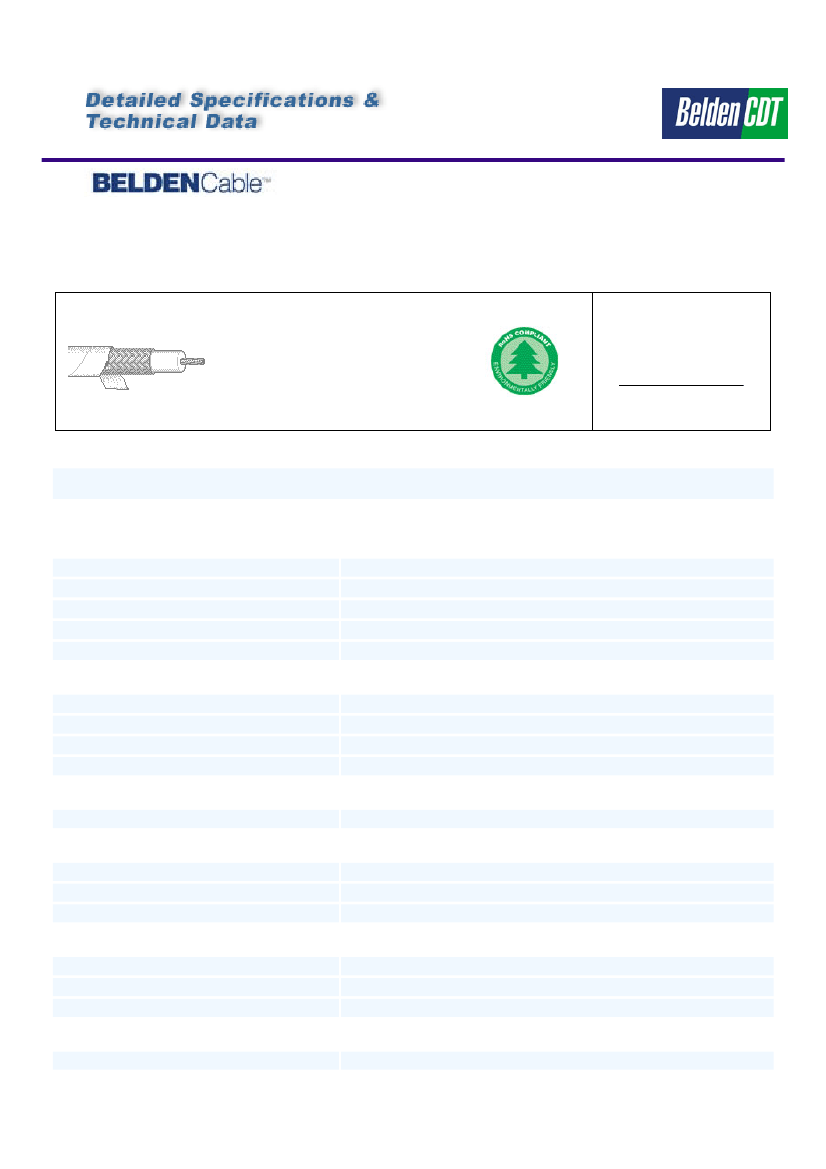

83303E Non-Paired - MIL-W-16878/4 (Type E)
For more information please
call
1-800-Belden1
See Put-ups and Colors
Description:
26 AWG stranded (7x34) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver plated copper
braid shield (85% coverage), TFE teflon tape-wrapped jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Conductors
Total Number of Conductors
AWG
Stranding
Conductor Material
INSULATION:
Insulation Material Trade Name
Insulation Material
Nom. Insulation Wall Thickness
Insulation Resistance
OVERALL CABLING:
Overall Cabling Color Code Chart
OUTER SHIELD:
Outer Shield Type
Outer Shield Material
Outer Shield %Coverage
OUTER JACKET:
Outer Jacket Material Trade Name
Outer Jacket Material
Outer Jacket Nominal Wall Thickness
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter
MECHANICAL CHARACTERISTICS:
Page 1 of 3
1
1
26
7x34
SPC - Silver Plated Copper
Teflon®
TFE - Tetrafluoroethylene
.010 in.
100, 000 Megaohms/1000 ft. @ 500 V DC
White
Braid
SPC - Silver Plated Copper
85 %
Teflon®
TFE - Tetrafluoroethylene
.010 in.
.076 in.
83303E Non-Paired - MIL-W-16878/4 (Type E)
Operating Temperature Range
Bulk Cable Weight
Max. Recommended Pulling Tension
Min. Bend Radius (Install)
-65°C To +200°C
6.3 lbs/1000 ft.
13.1 lbs.
0.75 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
APPLICABLE STANDARDS:
EU CE Mark (Y/N)
EU RoHS Compliant (Y/N)
EU RoHS Compliance Date (mm/dd/yyyy):
Military Specification
FLAME TEST:
UL Flame Test
PLENUM/NON-PLENUM:
Plenum (Y/N)
ELECTRICAL CHARACTERISTICS:
Nom. Capacitance Conductor to Shield @ 1 KHz
Nom. Conductor DC Resistance @ 20 Deg. C
Nominal Outer Shield DC Resistance @ 20 Deg. C
Max. Operating Voltage - UL
Max. Recommended Current
NOTES:
Notes
Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under
license by Belden, Inc.
44.6 pF/ft
39 Ohms/1000 ft
15.3 Ohms/1000 ft
600 V RMS
3 Amps per conductor @ 25°C
N
UL1685 UL Loading, VW-1
Yes
Yes
01/01/2005
MIL-W-16878/4 (Type E insulated conductors)
PUT-UPS AND COLORS:
Item
Description
Put-Up (ft.)
83303E 0091000
1 #26 TFE BRD TFE 1000
TAPE
83303E 009500
1 #26 TFE BRD TFE 500
TAPE
Ship Weight (lbs.)
6
3.5
Jacket Color
WHITE
WHITE
Notes
E
E
E = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'
Revision Number: 2
Revision Date: 06-07-2005
Page 2 of 3
83303E Non-Paired - MIL-W-16878/4 (Type E)
© 2005 Belden Wire & Cable Company
All Rights Reserved.
Although Belden Electronics Division ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication,
information and specifications described herein are subject to error or omission and to change without notice, and the listing of such
information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden CDT Electronics Division believes this product to be in compliance with the following environmental regulations: California
Proposition 65 Consent Judgment For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS
(Directive 2002/95/EC, 27-Jan-2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our
Distributor's inventory. EU ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR
(Directive 2003/11/EC, 6-Feb-2003). The information provided in this Product Disclosure, and the identification of materials listed as
reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its
publication. The information provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any
other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality
specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of
legislation and regulations based on their individual usage of the product.
Belden CDT Electronics Division declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended
by directive 93/68/EEC.
Page 3 of 3
