31224122 Overview

Board Connector,

31224122 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMETZ CONNECT
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
OptionsGENERAL PURPOSE
Base Number Matches1
mm to inch
1 inch = 25.4 mm
1 mm = .040 inches

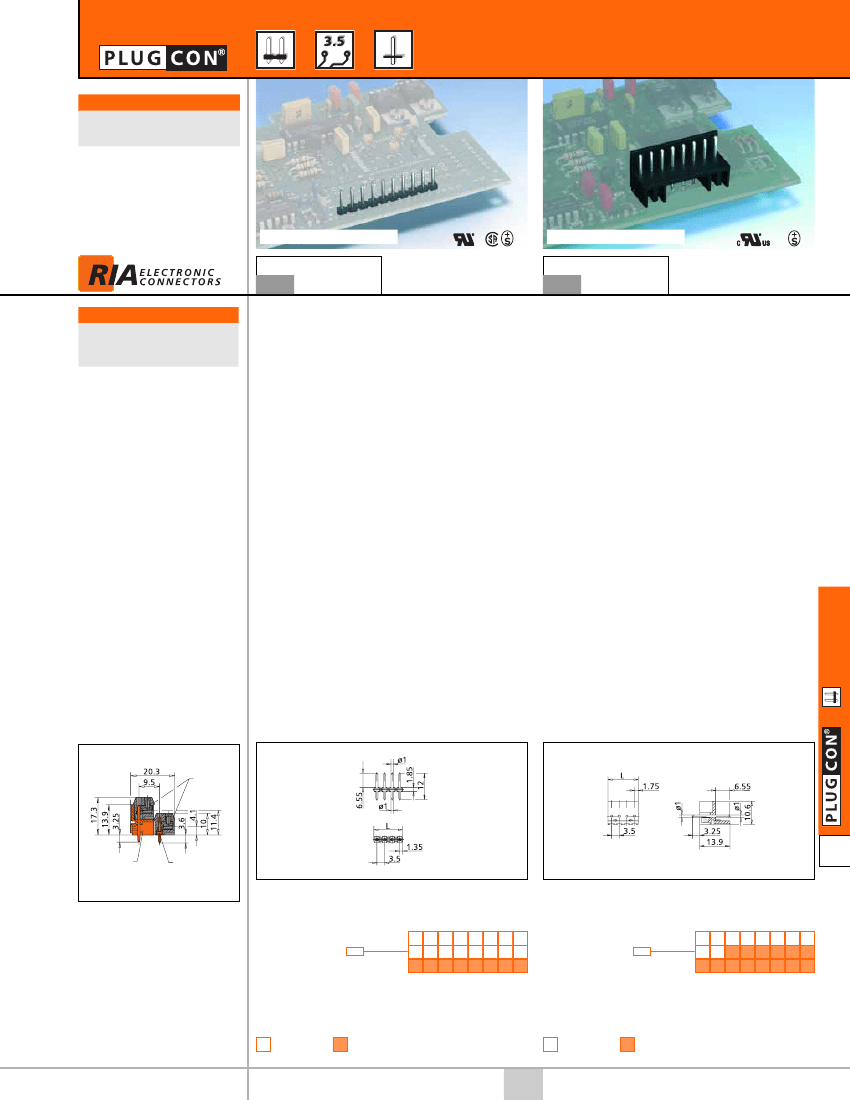

Designed to IEC 60664-1
Designed to IEC 60664-1
Type
Type
pin diameter 1 mm
224
Terminal block that mates with
Type 224
and
Type 226
Type 166
Page DB-1
226
pin diameter 1 mm
raised base
Electrical Data
Voltage
Current
Pin diameter
PCB hole diameter
Solder pin length
300 V
15 A
1 mm - mating
1 mm - solder
1.3 mm
3.6 mm
Electrical Data
Voltage
Current
Pin diameter
PCB hole diameter
Solder pin length
125 V
6A
1 mm - mating
1 mm - solder
1.3 mm
3.25 mm
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
black
brass, tin over nickel plating
optional: gold plating
- consult factory
2 to 24
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
black
brass,
silver over nickel plating
optional: gold plating
- consult factory
2 to 24
Additional data - page H-3
Color
Pin
Color
Pin
Pole sizes
Pole sizes
Additional data - page H-3
Two-tier terminal block
with Type 224 and Type 226
Terminal block
Type 166
Dimensions (mm)
Dimensions (mm)
Header
Type 226
Header
Type 224
L = (circuits - 1) x centerline + 2.7
L = (circuits - 1) x centerline + 3.5
Part Numbers
Type 224
Complete the part number
by adding the pole size.
centerline 3.5 mm
Part Numbers
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
Type 226
Complete the part number
by adding the pole size.
centerline 3.5 mm
Part No.
312241
Part No.
312261
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
Subject to technical changes and printing errors.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
fax 732-389-9066
www.riaelectronic.com
H-7
