RP330-50-100-S

Description
Three Phase EMI Filter
CategoryAnalog mixed-signal IC    filter
File Size1MB,2 Pages
ManufacturerAstrodyne TDI
Download Datasheet Parametric Compare View All

RP330-50-100-S Overview

Three Phase EMI Filter

RP330-50-100-S Parametric

Parameter NameAttribute value
MakerAstrodyne TDI
Reach Compliance Codecompliant
filter typeTHREE PHASE EMI FILTER
Manufacturer's serial numberRP330
Base Number Matches1
RP
RP330 Series
RP330
3PHASE DELTA TO 250A
ROHS COMPLIANT
RADIUS POWER
Your Power Partner

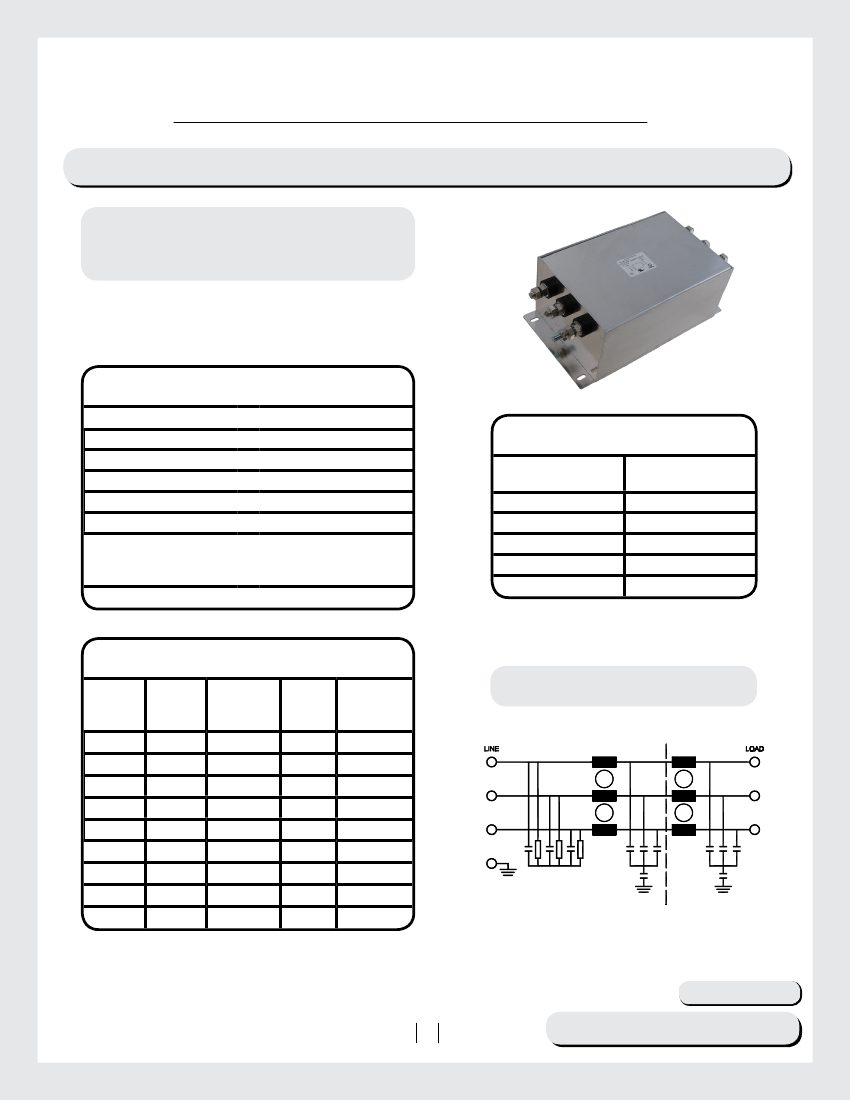

3-Phase Delta Dual Stage Power Line Filter
SPECIFICATIONS
Operating Freq.
Usable Freq.
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
:
:
:
:
:
:
:
50/60Hz
DC - 400Hz
480V +10%
-25 to 50C
25/100/21
3500VDC
S: 10/16/25/50A (M5)
80/100A (M6)
150/200/250A (M10)
cURus, EN60939
LEAKAGE CURRENT
Y-cap, nF
0
10
100
1000
2000
mA,
480V/60Hz
0
0.1
1
10
20
Safety Approvals
:
PART NUMBER/ ORDERING
RP330
-X
(Amps)
10
16
25
50
80
100
150
200
250
-Y
(Ycap, nF)
0
10
100
1000
2000
-T
S
Weight
LBS (KG)
Typ.
2.5 (1.1)
2.5 (1.1)
5.0 (2.3)
5.0 (2.3)
6.0 (2.7)
6.0 (2.7)
17.0 (7.7)
17.0 (7.7)
17.0 (7.7)
Remove for 250A
SCHEMATIC
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP330-100-100-S (100 Amps with 100nF Ycap)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
71
