8X372/BXA datasheet, PDF - EEWORLD Datasheet

8X372/BXA: DescriptionParallel IO Port, TTL, CDIP24,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size763KB，13 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

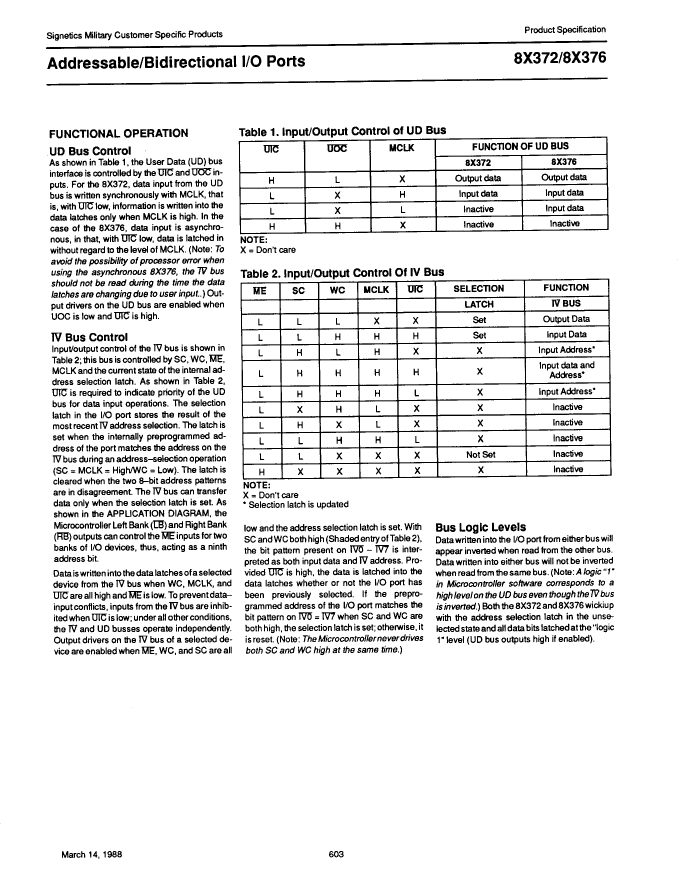

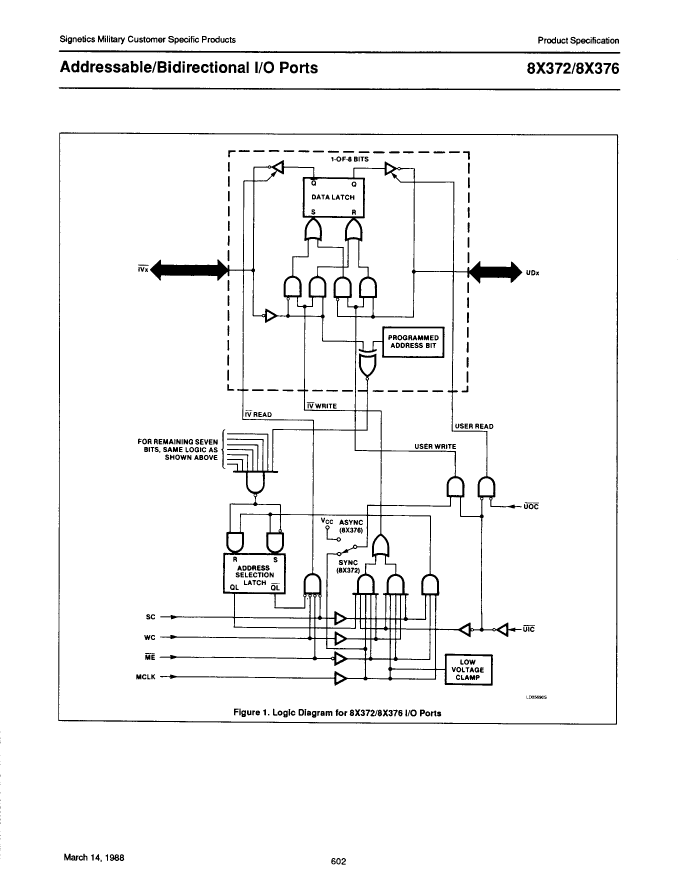

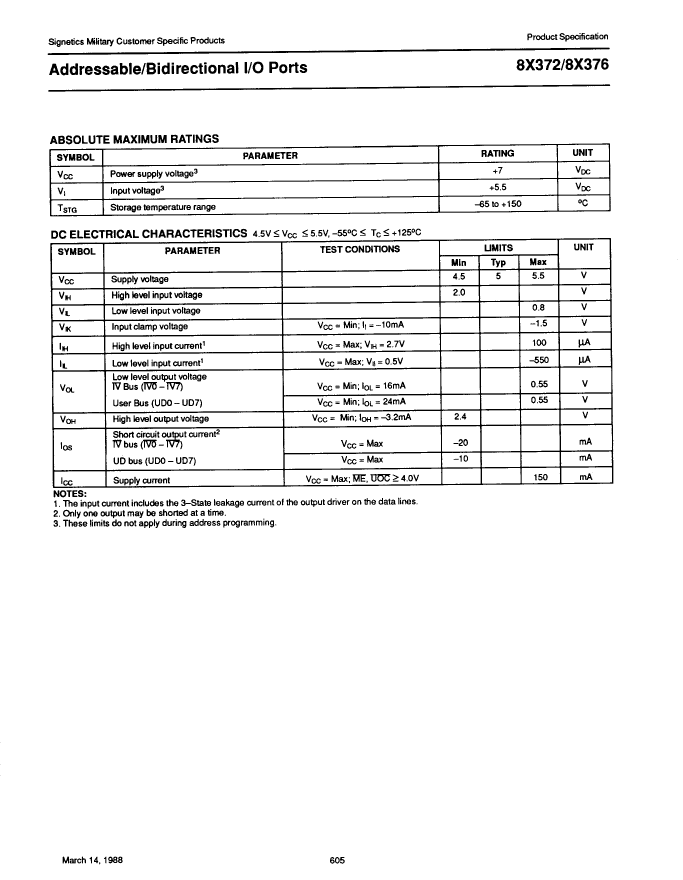

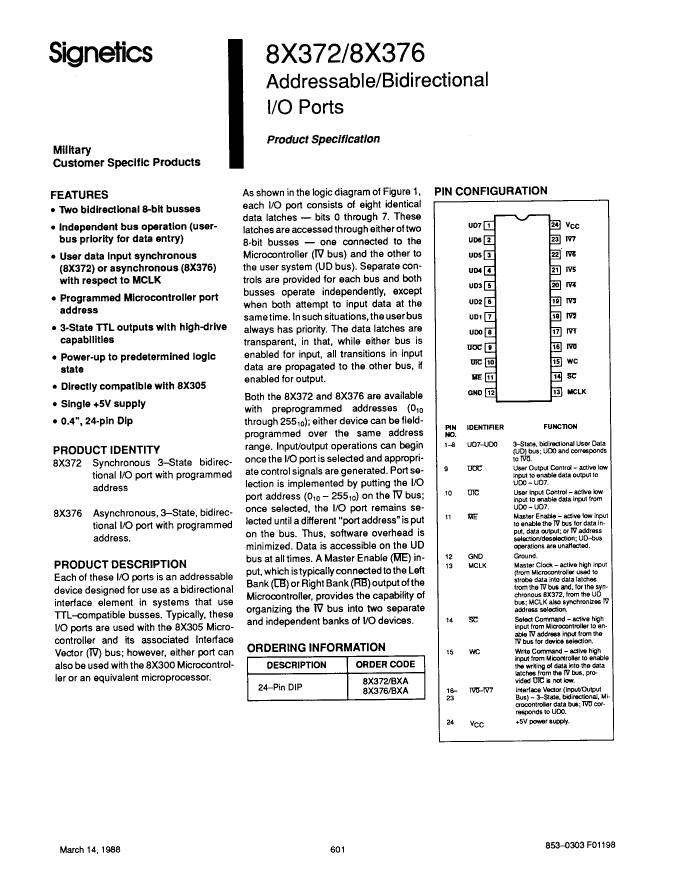

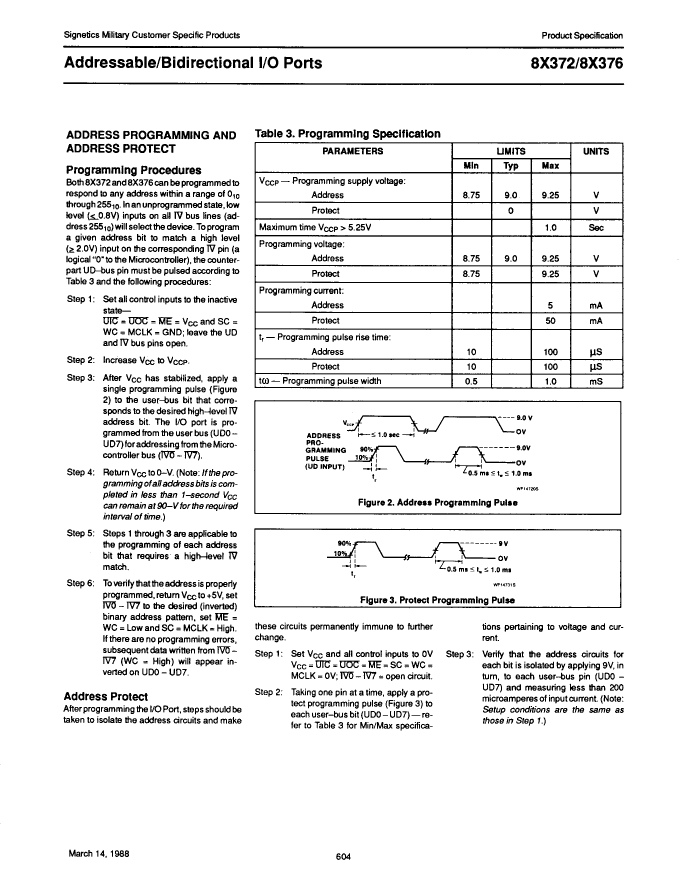

8X372/BXA Overview

Parallel IO Port, TTL, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP24,.4
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	8X372/BXA	8X376/BXA
Description	Parallel IO Port, TTL, CDIP24,	Parallel IO Port, TTL, CDIP24,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP24,.4	DIP, DIP24,.4
Reach Compliance Code	unknown	unknown
JESD-30 code	R-XDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.4	DIP24,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
