3047M: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size33KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

3047M Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3047M Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	N, I/P POWER-MAX(PEAK)=5000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.32
Base Number Matches	1

Preview

Download Datasheet

View All

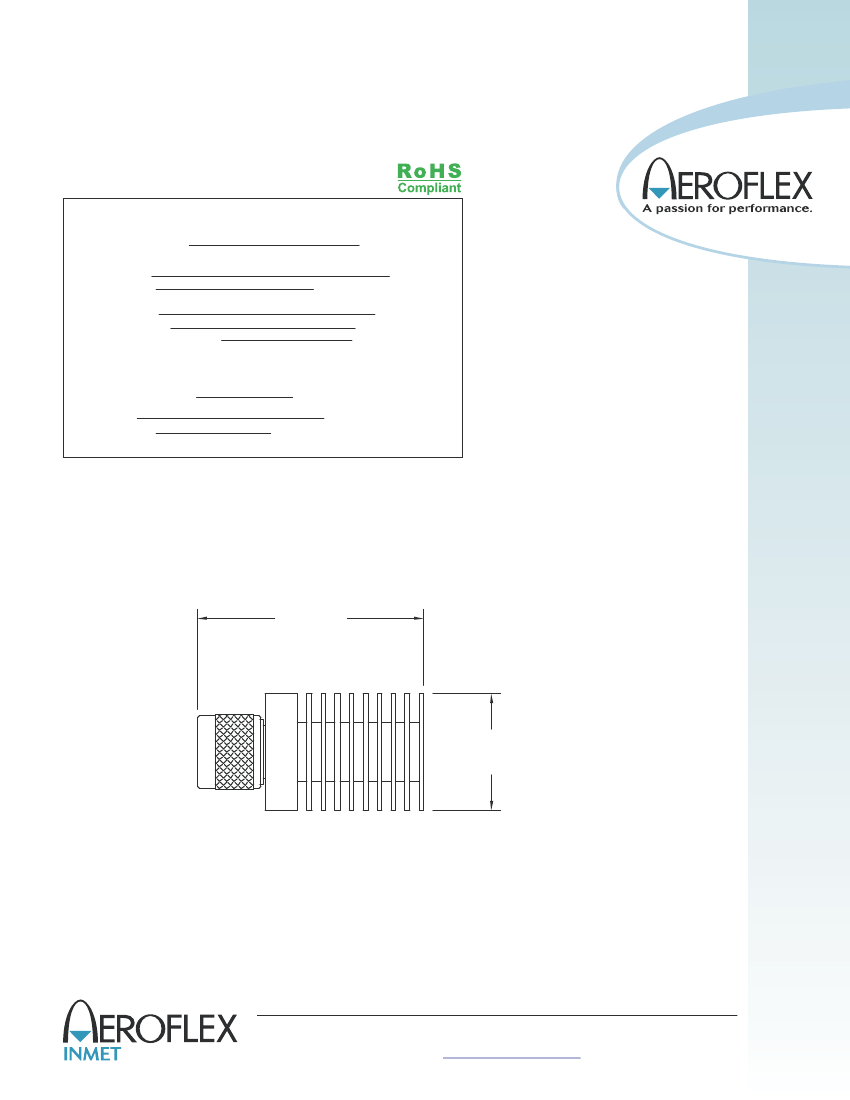

TERNMINATIONS

TYPE N, DC-18 GHz, 20 Watts

SPECIFICATIONS:

Models: 3047M

Electrical:

Frequency Range

VSWR

Impedance

Input Power

Peak Power

Operating Temp Range

DC - 18 GHz

1.05 + .015f (GHz) Max.

50 Ohms

20 Watts Avg. @ +25°C

Derated Linearly to 3 Watts @ +1

o

C

25

5 kW Max.

(5uSec Pulse, 5 x 10

-4

Duty Cycle)

-55°C to +1

25°C

Mechanical:

Type N Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Anodized Aluminum

Gold Plated Beryllium Copper

Housing

Conductors

Model Number:

3047M

2.44 Max.

[61.98]

Ø1.28 Max.

[32.5]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

3047M: REV B

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com

• inmetsales@aeroflex.com

3047M Related Products

	3047M
Description	RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	N, I/P POWER-MAX(PEAK)=5000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.32
Base Number Matches	1
