3010H datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 3010H

Preview

3010H: DescriptionRF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

3010H Overview

RF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3010H Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	1000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

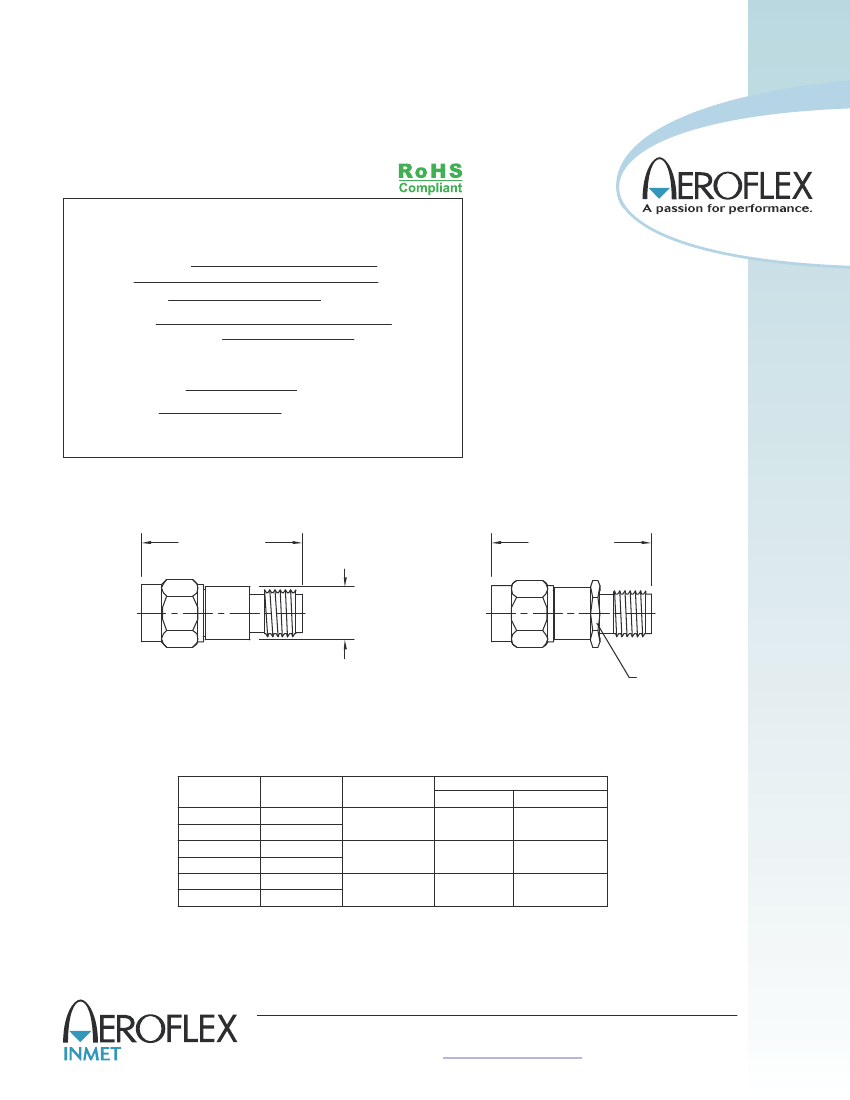

TERMINATIONS, FEEDTHRU

SMA, DC - 1 GHz, 2 Watts

SPECIFICATIONS:

Models: 3008, 3008H, 3009, 3009H, 3010, 3010H

Electrical:

Frequency Range

VSWR

Input Power

Impedance

Operating Temp Range

DC - 1 GHz

1.25:1 Max.

2 Watts Avg. @ 25°C

Derated Linearly to 0.5 Watts @ +1

o

C

25

50 Ohms

-65°C to +125°C

Mechanical:

SMA Connectors

Conductors

Mates with MIL

-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

LENGTH

SEE TABLE

LENGTH

SEE TABLE

Ø.28

[7.1]

5/16 [7.9] Hex

NO HEX STYLE

Model Shown

3008

HEX STYLE

Model Shown

3008H

Base Model

Number

3008

3008H

3009

3009H

3010

3010H

Body

Style

No-Hex

Hex

No-Hex

Hex

No-Hex

Hex

Connector

Configuration

Male/Female

Male/Male

Female/Female

Length

Inches

.99 ±.03

1. 1 ±.03

1

1.00 ±.03

Millimeters

[25. ±0.8]

1

[28.2 ±0.8]

[25.4 ±0.8]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

3008: REV F

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com

3010H Related Products

	3010H
Description	RF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	1000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1
