21-033467-041

Description
MIL Series Connector
CategoryThe connector    The connector
File Size887KB,7 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

21-033467-041 Online Shopping

Suppliers Part Number Price MOQ In stock
21-033467-041 - - View Buy Now

21-033467-041 Overview

MIL Series Connector

21-033467-041 Parametric

Parameter NameAttribute value
Objectid1250777683
Reach Compliance Codeunknown
Back shell typeSOLID
Connector typeMIL SERIES CONNECTOR
1
Call 800-678-0141
Product Data Sheet

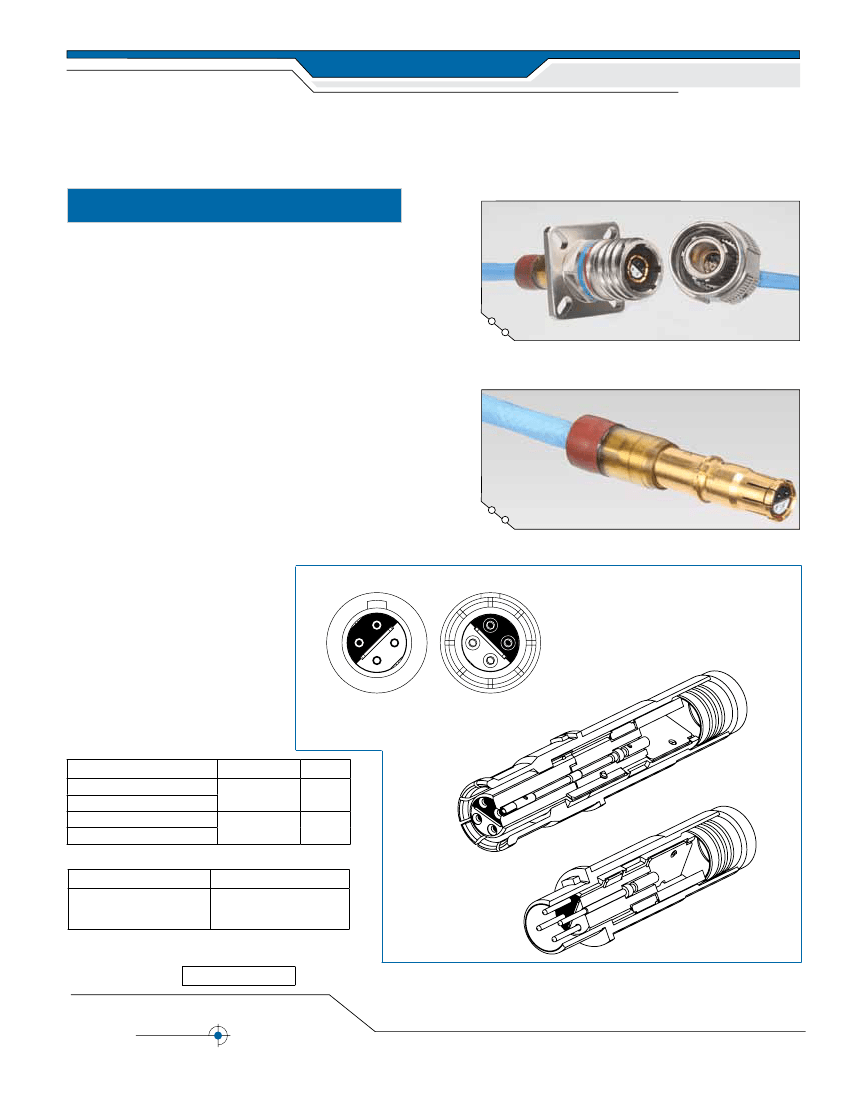

New “Split-Pair” Quadrax Contacts & Cable
Assemblies for MIL-DTL-38999, Series III Cylindricals
for use with CAT6A Type Cable
Amphenol Aerospace offers the high performance
interconnect solution for CAT6A type cable.
FEATURES & BENEFITS:
• Overall higher bandwidth than standard CAT5E quadrax-Supports
up to 6.5 Gbps per pair
• Enhanced crosstalk performance (compared to standard quadrax)
due to compatibility with shielded twisted pair of cables
• Can be used for a variety of high speed applications beyond
current quadrax design**
• Four strategically spaced inner contacts form two 100 Ohm
matched impedance differential pairs
• Outer contact has rugged wall section for durability
• Available in size 8 crimp termination style
• Also available in size 8 PC tails
• Can be installed into existing quadrax contact connector cavities
• Requires modification of MIL-DTL-38999 connector to accommo-
date keyed contacts
APPLICATIONS:
For use with, but not limited to, the
following electrical protocols :
10/100/1000/10GBASE-T Ethernet
DVI
USB 2.0/ 3.0
Serial RapidIO (up to 3.125 Gbps)
PCI-Express 2.0
HDMI 1.3a
SATA 2.0 (up to 3 GHz)
Suggested Numbering for Quadrax Contacts
PDS-219-3
MIL-DTL-38999 Series III Connectors with “Split-Pair”
Quadrax Contacts for use with CAT6A Type Cable
“Split-Pair” Quadrax Contacts for use with CAT6A
Type Cable
1
4
2
3
3
2
1
4
See page 7: Guide for Selecting
High Frequency Contacts and Cables
PIN CONTACT
MATING FACE
SOCKET CONTACT
MATING FACE
SPLIT-PAIR QUADRAX CONTACT*
PART NUMBERS:
Crimp Style Part Number
PIN 21-033470-001
SOCKET 21-033471-001
PIN 21-033470-021
SOCKET 21-033471-021
Cable
Thermax
1536-224
Thermax
1536-195
AWG
24
26
Differential Pairs: 1 & 4, 2 & 3
SPLIT-PAIR QUADRAX
SOCKET CONTACT
CRIMP TOOLS:
Outer Contact
DANIELS M22520/5-01
with die set Y1999 or
M22520/5-45
Inner Contact
DANIELS M22520/2-01
with positioner K1777
SPLIT-PAIR QUADRAX
PIN CONTACT
Daniels crimping tools are available from Daniels Mfg. Corp.
6103 Anno Ave., Orlando, FL 32809
REMOVAL TOOL:
M81969/14-12
Amphenol
Aerospace
* Patent pending.
** See Amphenol
®
Quadrax Contacts in the High Speed Section of the combined
circular interconnect product catalog from Amphenol, 12-C,
online at www.amphenol-aerospace.com).
Call 800-678-0141 or visit us at www.amphenol-aerospace.com
