GMM784000BS-70 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> GMM784000BS-70

Preview

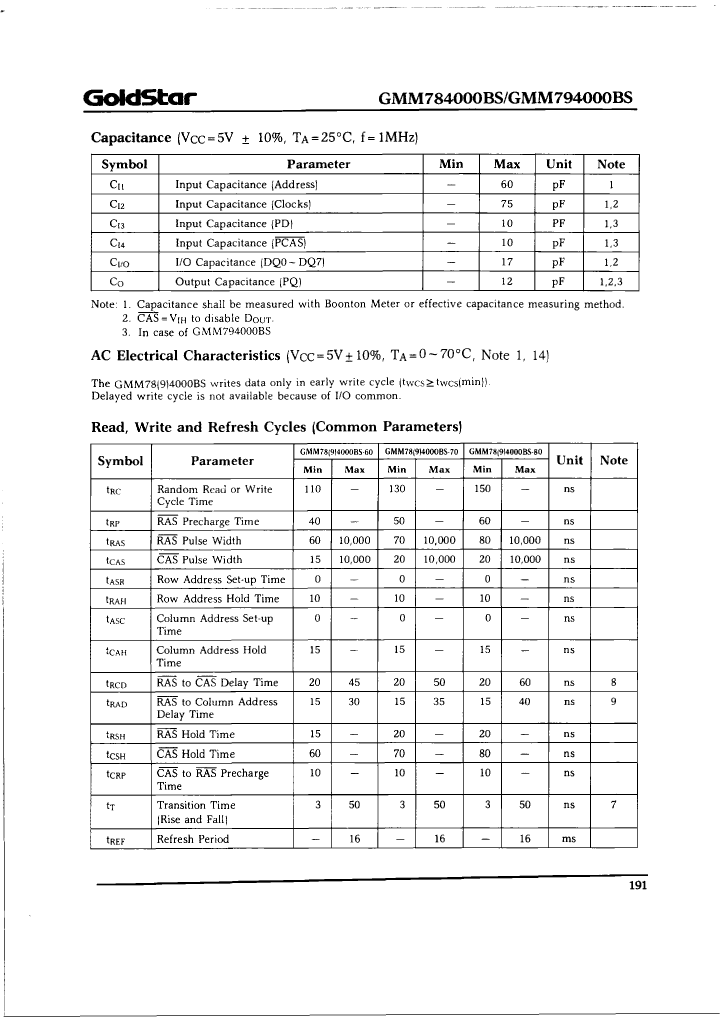

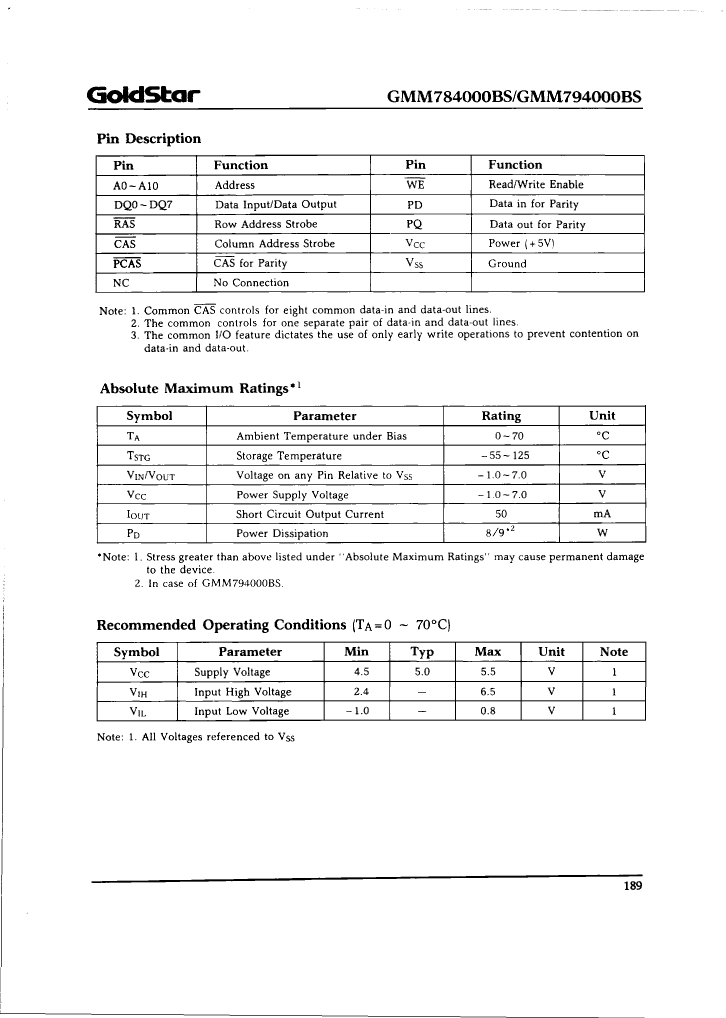

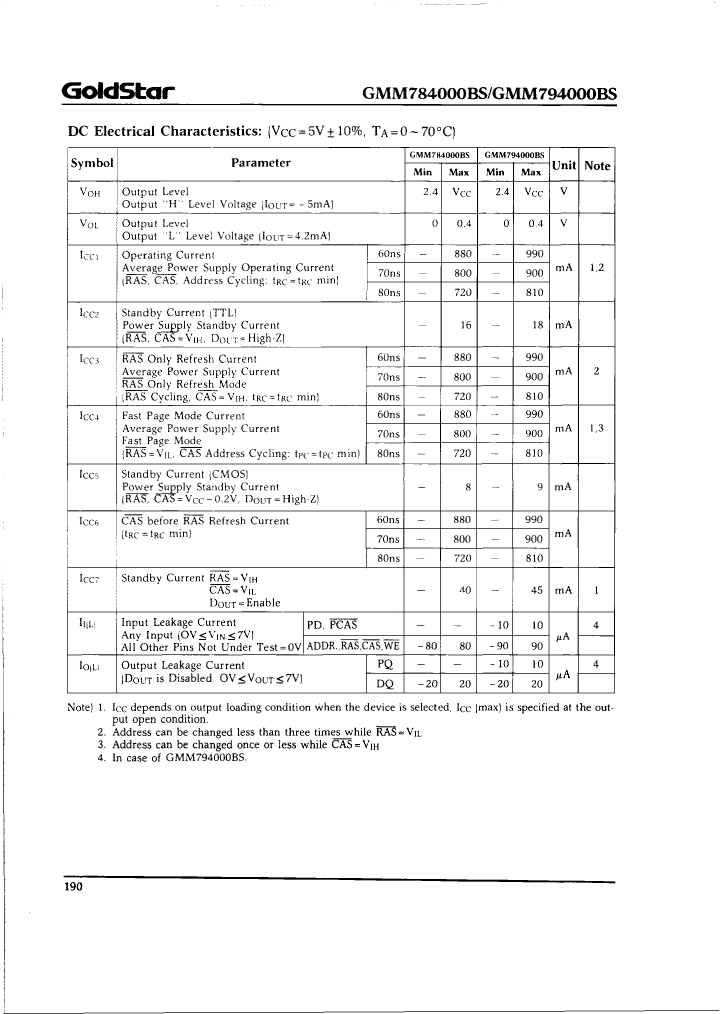

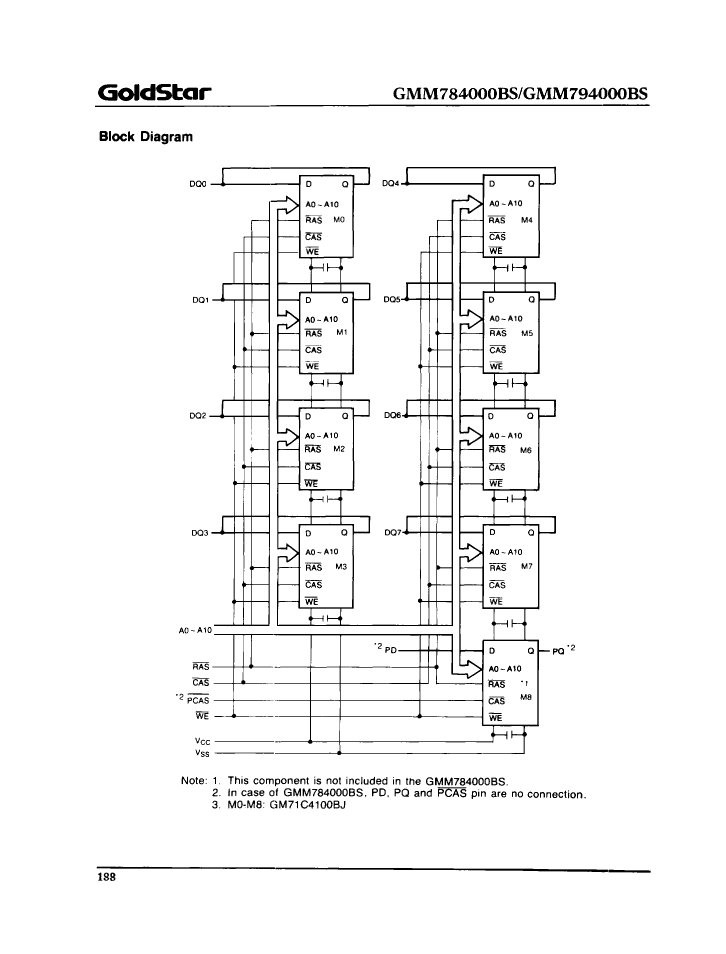

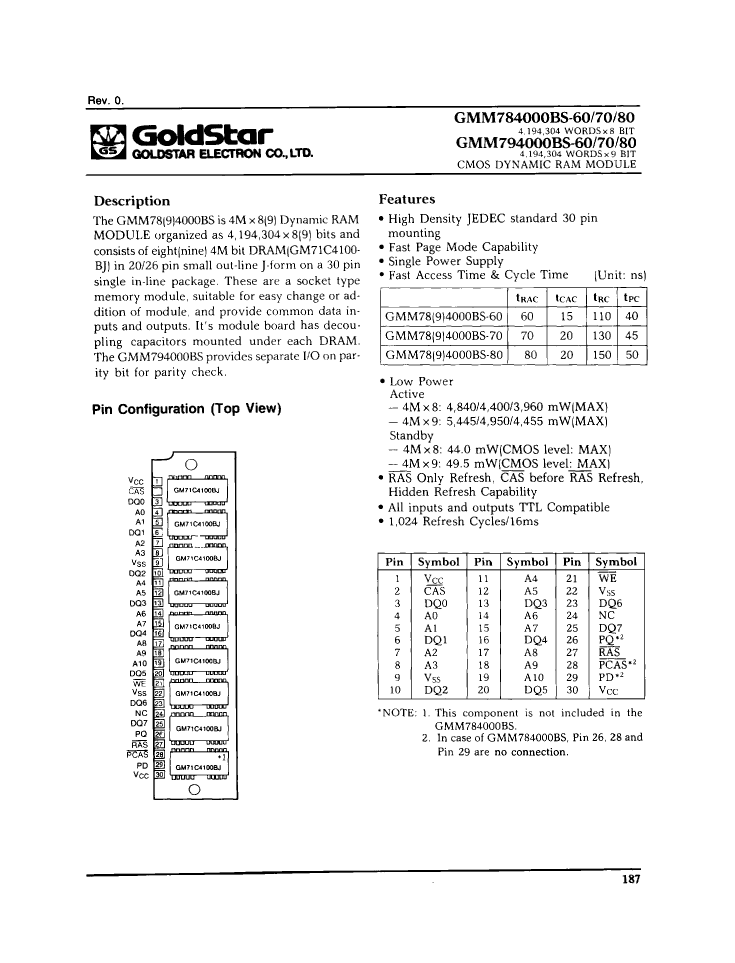

GMM784000BS-70: DescriptionFast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30; Categorystorage storage; File Size339KB，14 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

GMM784000BS-70 Overview

Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30

GMM784000BS-70 Parametric

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	SIMM-30
Reach Compliance Code	unknown
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N30
memory density	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	30
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX8
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

GMM784000BS-70 Related Products

	GMM784000BS-70	GMM784000BS-80	GMM784000BS-60	GMM794000BS-60	GMM794000BS-70	GMM794000BS-80
Description	Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX8, 80ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX8, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX9, 80ns, CMOS, SIMM-30
Maker	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.
package instruction	SIMM-30	SIMM-30	SIMM-30	SIMM-30	SIMM-30	SIMM-30
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	80 ns	60 ns	60 ns	70 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30
memory density	33554432 bit	33554432 bit	33554432 bit	37748736 bit	37748736 bit	37748736 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	8	8	8	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	30	30	30	30	30	30
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX8	4MX8	4MX8	4MX9	4MX9	4MX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1
