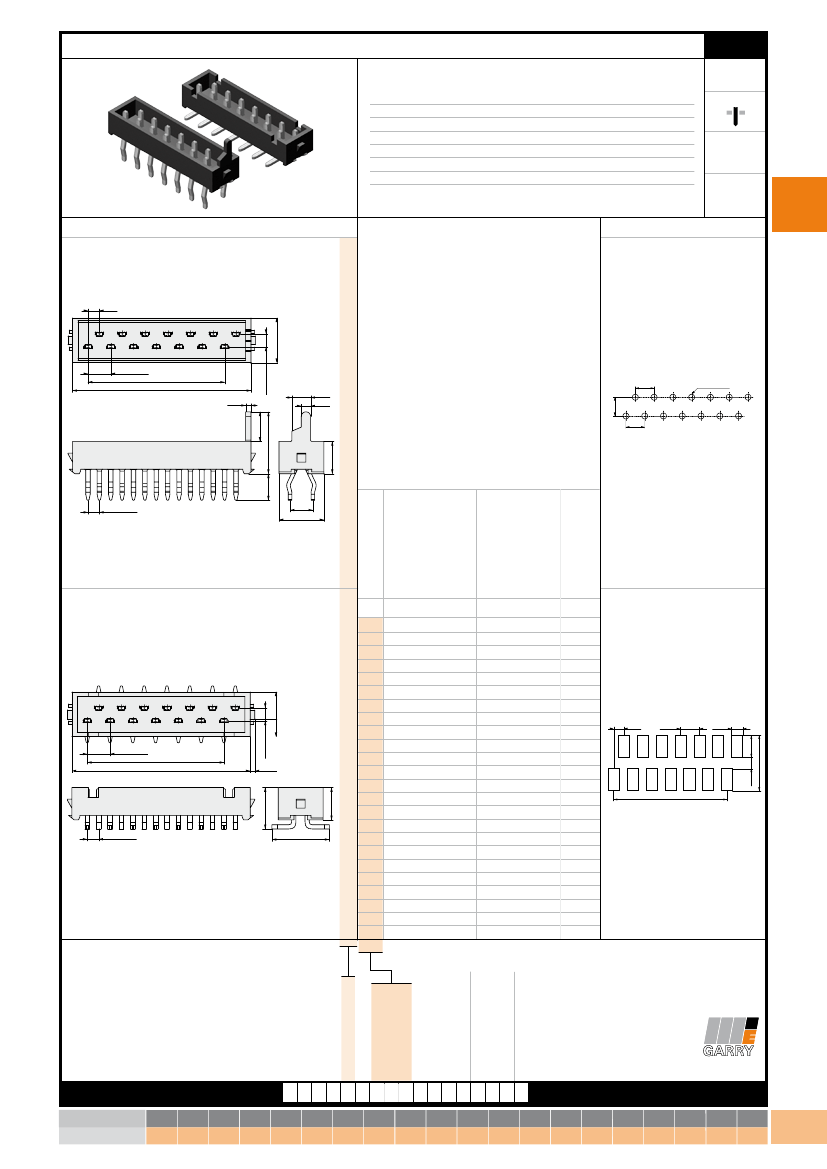

373-1-006-0-T-KT0 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 373-1-006-0-T-KT0

373-1-006-0-T-KT0: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking; CategoryThe connector The connector; File Size946KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric Compare View All

373-1-006-0-T-KT0 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking

373-1-006-0-T-KT0 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
body width	0.197 inch
subject depth	0.142 inch
body length	0.383 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	373
Plug contact pitch	0.039 inch
Match contact row spacing	0.059 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

Pin Header Micro Match 1,27 mm

Rated current

1,5/1,0 A

Rated voltage

230 V

RMS

/ V

Withstand voltage

1000 V

RMS

for one minute

Material contact

Phosphor bronze

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

373

pitch

termination

1,27

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

max.

pincount

Variation

Compatible with industries standard.

PCB Layout

026

Product

group

1,27

5,00 ±0,10

1,50 ±0,05

2,54 ±0,05

B ±0,10

A ±0,15

0,60

3,30

2,54

2,05

1,05

2,54

Ø 0,80 ±0,05

2,54

6,90

3,00

3,60

1,27 ±0,05

5,00

2,54

2,54 ±0,05

B ±0,10

A ±0,15

0,50

1,27 ±0,05

4,60

7,00 ±0,20

Plating:

T = Sn

Packaging:

T = Tube

No. of contacts

Plating contact

3,60

Variation (1,2)

Packaging

1,50

004

006

008

010

012

014

016

018

020

022

024

026

004

006

008

010

012

014

016

018

020

022

024

026

7,20

9,74

12,28

14,82

17,36

19,90

22,44

24,98

27,52

30,06

32,60

35,14

7,10

9,64

12,18

14,72

17,26

19,80

22,34

24,88

27,42

29,96

32,50

35,04

2,54

5,08

7,62

10,16

12,70

15,24

17,78

20,32

22,86

25,40

27,94

30,48

2,54

5,08

7,62

10,16

12,70

15,24

17,78

20,32

22,86

25,40

27,94

30,48

5,00 ±0,10

available in variation

no. of contacts

see figure left

1,50 ±0,05

1,27

2,54

1,50

3,00

7,50

www.mpe-connector.de

Order code:

Mating series

see page

4-12 4-13

373-?-???-0-T-KT0

369 374

CS130312_V2

3-21
