DPM2P33K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> DPM2P33K-F

DPM2P33K-F: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 400 V, 1.5 uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size189KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

DPM2P33K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DPM2P33K-F	-	-	View	Buy Now

DPM2P33K-F Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 400 V, 1.5 uF, THROUGH HOLE MOUNT

DPM2P33K-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
Objectid	2100326556
package instruction	, 7135
Reach Compliance Code	compli
ECCN code	EAR99
compound_id	285157
Other features	RATED AC VOLTAGE (V): 160
capacitance	0.33 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	15 mm
JESD-609 code	e3
length	18 mm
Manufacturer's serial number	DPM
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
positive tolerance	10%
Rated (AC) voltage (URac)	160 V
Rated (DC) voltage (URdc)	250 V
series	DPM
size code	7135
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	15 mm
Terminal shape	WIRE
width	9 mm

Preview

Download Datasheet

View All

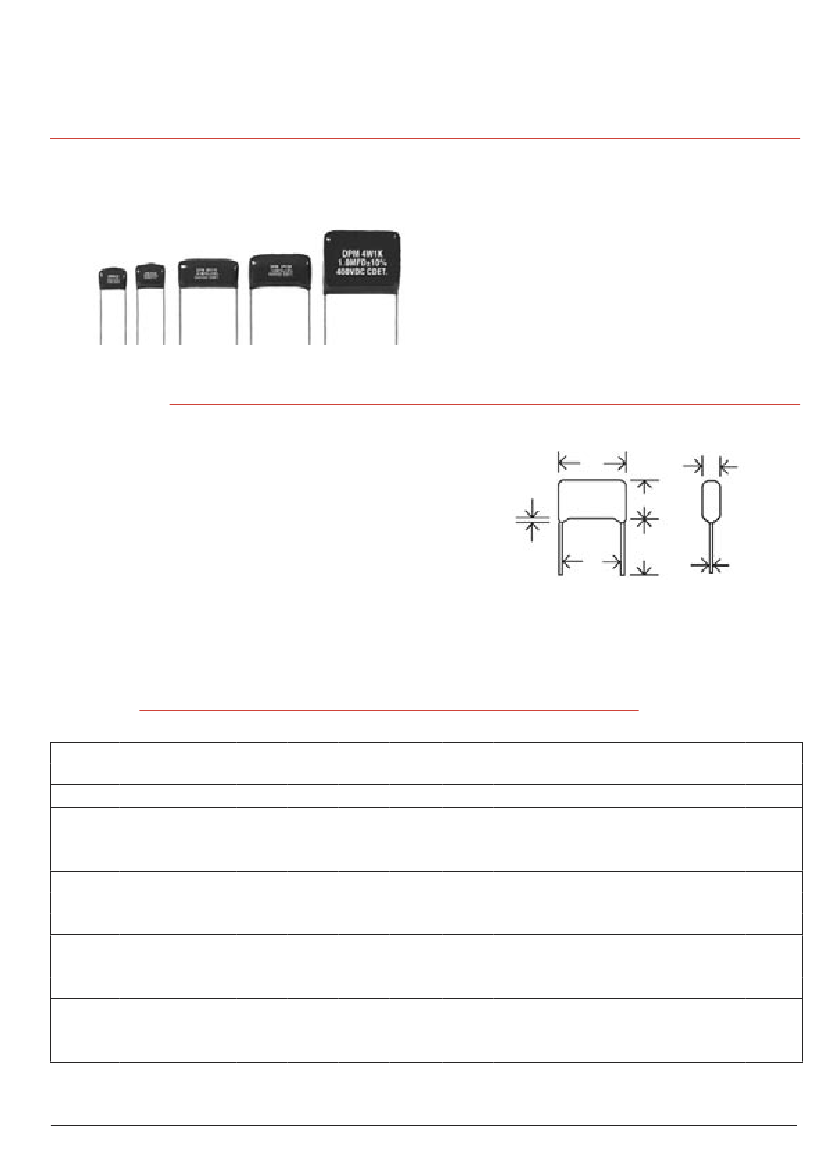

Type DPM

Polypropylene Film Capacitors

Metallized, Radial Leads

Great for High Frequency

Switching Power Supplies

Type DPM

radial-leaded, metallized polypropylene

capacitors boast non-inductive windings with

welded lead terminations which handle high

continuous currents. The low ESR and low ESL are

a glove ﬁt for high frequency and switching power

supply applications.

Speciﬁcations

Voltage Range:

250 to 630 Vdc (160 to 250 Vac, 60 Hz)

Capacitance Range:

.01 to 6.8 µF

Capacitance Tolerance:

±10% (K) standard

±5% (J) optional

Operating Temperature Range:

–55°C to 105°C*

*Full-rated voltage at 85°C–Derate linearly to 50%-rated voltage at 105°C

MAX.

(3.0mm)

.79”

MIN.

(20mm)

Dielectric Strength:

175% (1 minute)

Dissipation Factor:

.10% Max. (25 °C, 1 kHz)

Insulation Resistance:

10,000 M

Ω

x µF

30,000 M

Ω

Min.

Life Test:

1,000 hours at 85 °C at 125% rated voltage

NOTE:

Other capacitance values, sizes and performance

speciﬁcations are available. Contact us.

Ratings

Cap.

(µF)

.010

.015

.022

.033

.047

.068

.10

.15

.22

.33

.47

.68

Catalog

Part Number

DPM2S1K-F

DPM2S15K-F

DPM2S22K-F

DPM2S33K-F

DPM2S47K-F

DPM2S68K-F

DPM2P1K-F

DPM2P15K-F

DPM2P22K-F

DPM2P33K-F

DPM2P47K-F

DPM2P68K-F

T Max.

Inches(mm)

0.276(7.0)

0.315(8.0)

0.354(9.0)

0.394(10.0)

H Max.

Inches(mm)

0.433(11.0)

0.512(13.0)

0.591(15.0)

0.630(16.0)

L Max.

Inches(mm)

0.512(13.0)

0.709(18.0)

1.024(26.0)

S ±.06 (±1.5)

Inches(mm)

0.394(10.0)

0.591(15.0)

0.886(22.5)

RoHS Compliant

Inches(mm)

0.024(0.6)

0.032(0.8)

dV/dt

V/μs

250 Vdc (160 Vac)

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02740 • Phone: (508)996-8561•Fax: (508)996-3830 www.cde.com
