DPH340T: Description.100 PIN HEADERS DUAL INSULATOR .100 [2.54] CENTERLINE; File Size130KB，1 Pages; ManufacturerAdam Tech

Download Datasheet View All

DPH340T Overview

.100 PIN HEADERS DUAL INSULATOR .100 [2.54] CENTERLINE

Preview

Download Datasheet

View All

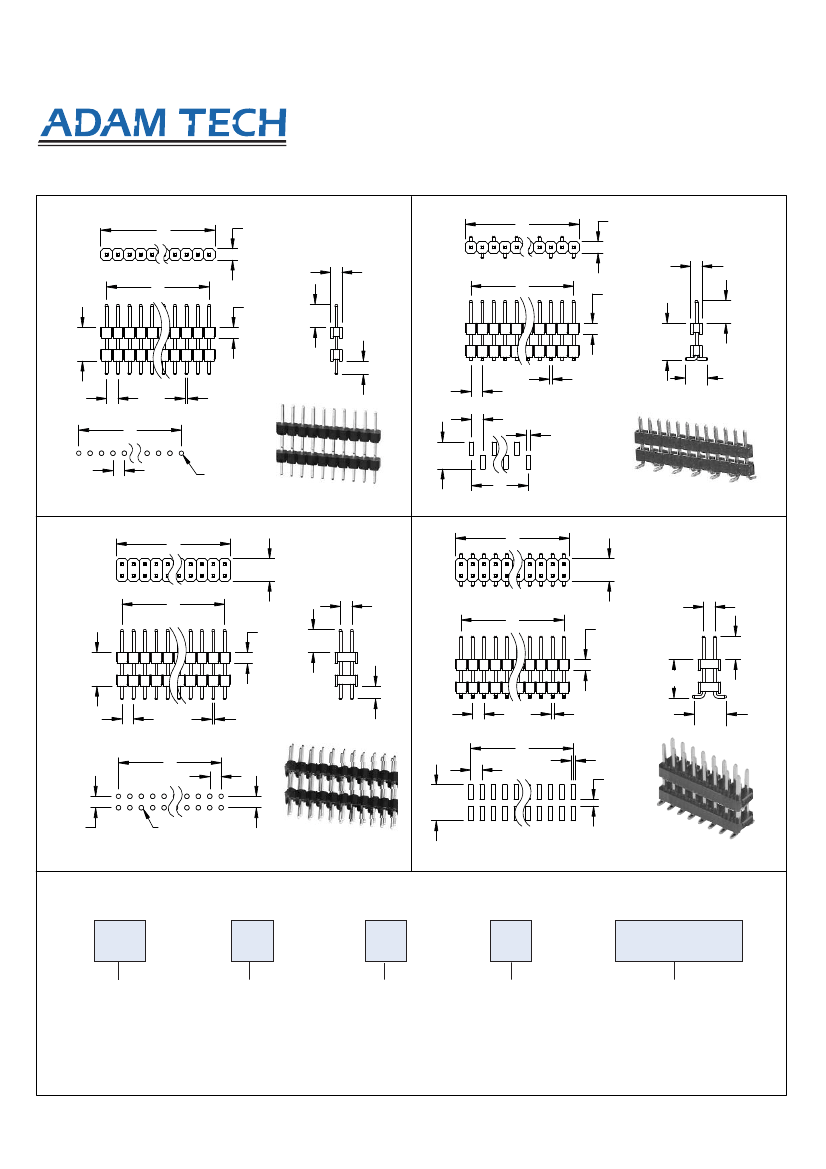

.100" PIN HEADERS

Adam Technologies, Inc.

DPH-1

.098 [2.50]

DUAL INSULATOR .100" [2.54] CENTERLINE

DPH SERIES

DPH-1-SMT

.098 [2.50]

.098

[2.50]

.098

[2.50]

.100

[2.54]

.217

[5.50]

.100

[2.54]

RECOMENDED PCB LAYOUT

ø.040

[1.02]

.025 [0.64] SQ.

.100

[2.54]

.100 [2.54]

.040

[1.00]

.025 [0.64] SQ.

.098

[2.50]

.098

[2.50]

.197

[5.00]

Recommended PCB Layout

DPH-1-10-U-.220/.100/.350

Recommended PCB Layout

DPH-1-12-U-.200/SMT/.220-A

RECOMMENDED PAD LAYOUT

DPH-2

.197 [5.00]

.100

[2.54]

.098

[2.50]

.197 [5.00]

DPH-2-SMT

.100

[2.54]

.098

[2.50]

.100

[2.54]

.025

[0.64] SQ.

.100

[2.54]

.100 [2.54]

.315

[8.00]

.100

[2.54]

ø.040 [1.02]

.040 [1.00]

.059

[1.50]

.025 [0.64] SQ.

.295

[7.50]

.100 [2.54]

.100

[2.54]

Recommended PCB Layout

RECOMENDED PCB LAYOUT

DPH-2-22-U-.220/.100/.350

Recommended PCB Layout

RECOMENDED PAD LAYOUT

DPH-2-16-U-.250/SMT/.300

ORDERING INFORMATION

DPH

SERIES INDICATOR

DPH

= Dual insulator

.100" centerline

NO. OF ROWS

= Single row

= Dual row

= Triple row

POSITIONS

1 thru 40 (single row)

4 thru 80 (dual row)

3 thru 120 (triple row)

PLATING

= Gold plated

= Tin plated

= Gold plating

in contact

area, tin plating

on solder tails

.XXX"/.XXX"/.XXX"

(C DIM) (D DIM) (E DIM)

SPECIFIED IN INCHES AS:

C Dim. / D Dim. / E Dim.

(replace D Dim. with SMT

for surface mount option)

RECOMMENDED PCB LAYOUT

254

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM
